LevelOne SFP-3211 network transceiver module

LevelOne 1.25Gbps Single-mode SFP Transceiver, 20km, 1310nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 57 mm, Depth: 12 mm, Height: 13.7 mm. Package width: 106 mm, Package depth: 20 mm, Package height: 65 mm

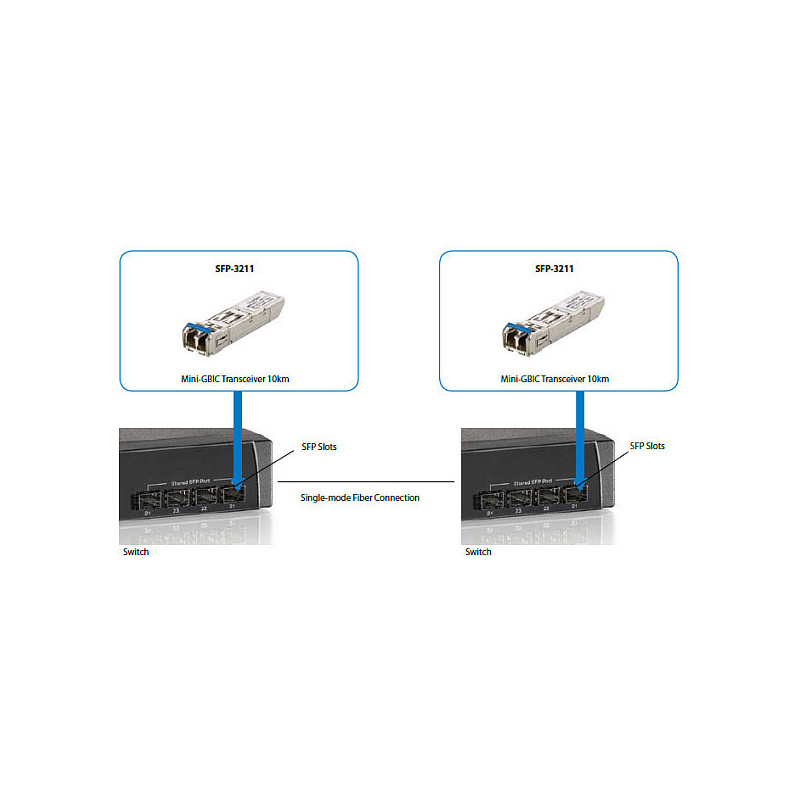

LevelOne SFP-3211 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 micron fiber cables, it can reach a distance of up to 10km. The SFP-3211 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has a LC connector.

- 1310nm FPLD
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/DC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Tx power (min): -9.5 dBmW
Tx power (max): -3 dBmW
Networking standards: IEEE 802.3z
Duplex system: Full
Fiber ports quantity: 1

Features

Feature: Plug and Play
Feature: Hot-swap

Power

Input voltage: 3.3 V
Maximum voltage: 6 V
Maximum current: 0.3 A
Feature: Power over Ethernet (PoE)

Certificates

Compliance certificates: RoHS
Safety: EN 60825-1
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 57 mm
Depth: 12 mm
Height: 13.7 mm
Weight: 20 g

Packaging data

Package width: 106 mm
Package depth: 20 mm
Package height: 65 mm
Package weight: 35 g

Logistics data

Harmonized System (HS) code: 85369010
