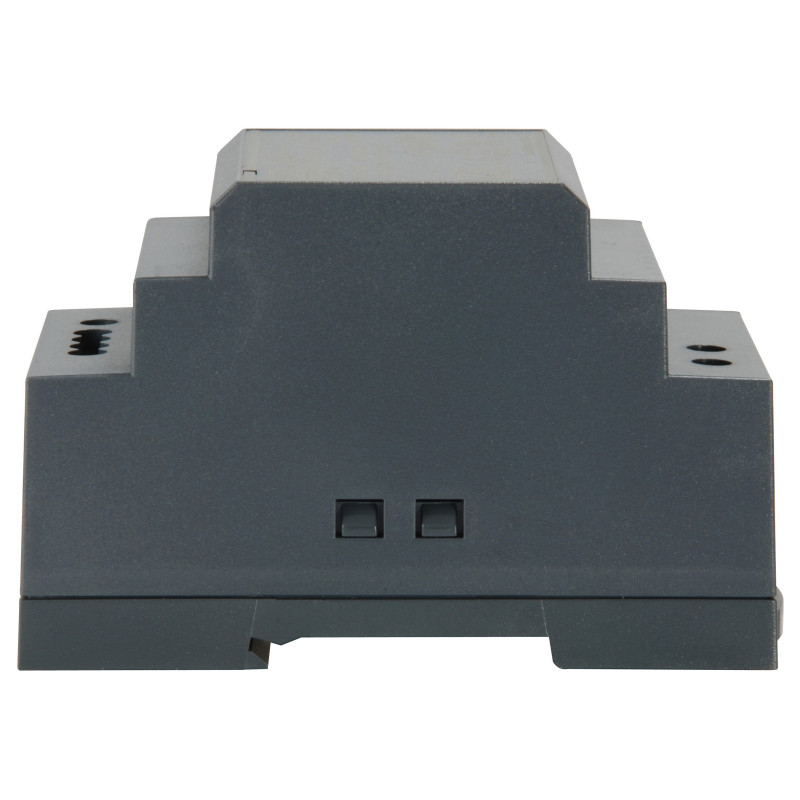

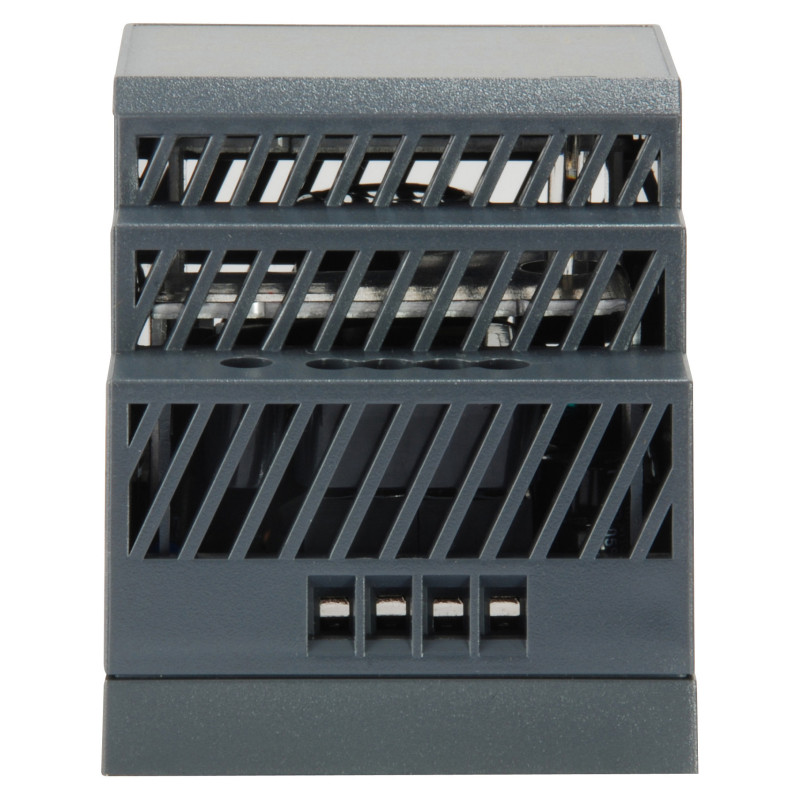

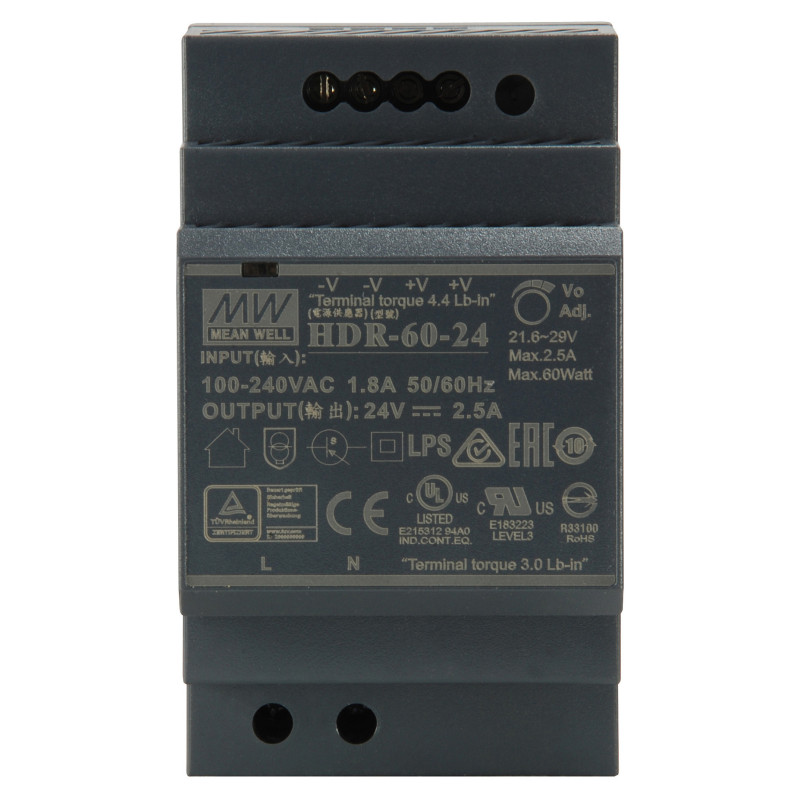

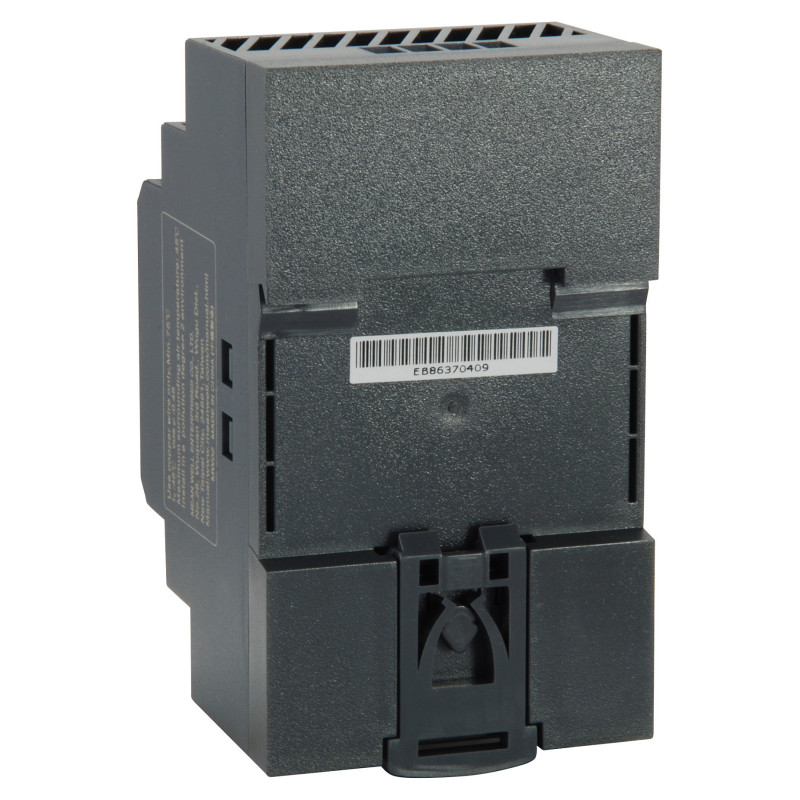

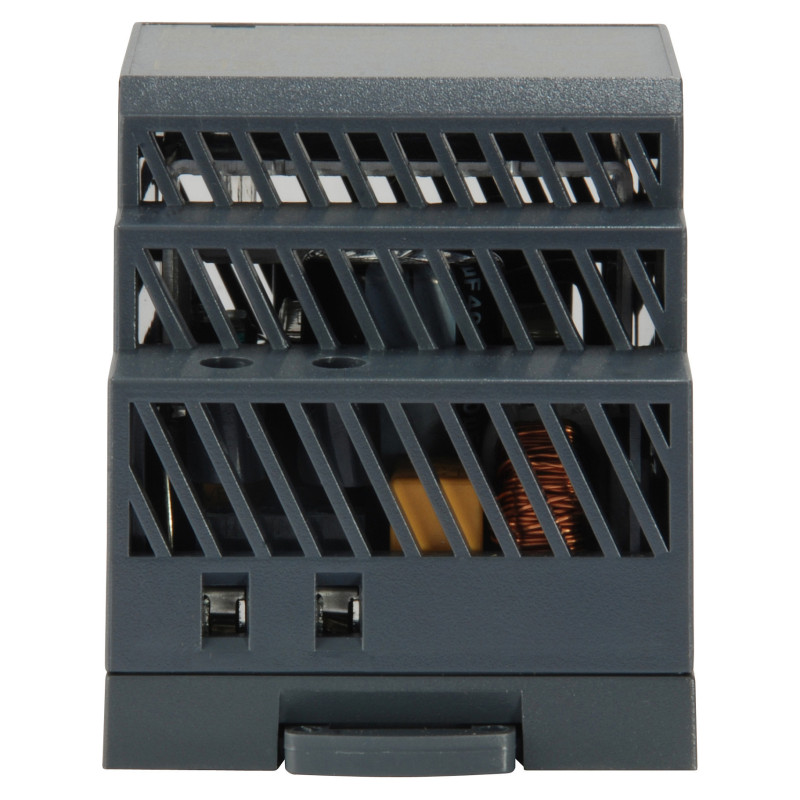

LevelOne POW-2421 power supply unit

LevelOne 24V DC Industrial Power Supply, 60W, DIN-Rail. Total power: 60 W, AC input voltage: 85 - 264 V, Peak power: 60 W. Mean time between failures (MTBF): 927600 h. Product colour: Black. Safety: UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1,,BSMI CNS14336-1 aEAC TPTC 004pproved; Design.... Width: 90 mm, Depth: 54.5 mm, Height: 52.5 mm
The POW-2421 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -30 to 70 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment.

Power

Total power: 60 W
Peak power: 60 W
AC input voltage: 85 - 264 V
Power protection features: Over voltage, Overload, Short circuit

Performance

Mean time between failures (MTBF): 927600 h

Design

Product colour: Black

Operational conditions

Operating temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 20 - 90%

Safety regulation standards

Safety: UL60950-1, UL508, EN61558-2-16, IEC60950-1,,BSMI CNS14336-1 aEAC TPTC 004pproved Design refer to TUV EN60950-1

Weight dimensions

Width: 90 mm
Depth: 54.5 mm
Height: 52.5 mm
Weight: 60 kg

Packaging data

Package width: 90 mm
Package depth: 54.5 mm
Package height: 52.5 mm
Package weight: 60 kg

Logistics data

Harmonized System (HS) code: 84733020
Country of origin: China

Other features

Maximum current: 2.5 A
Technical features: 24V DC Out
