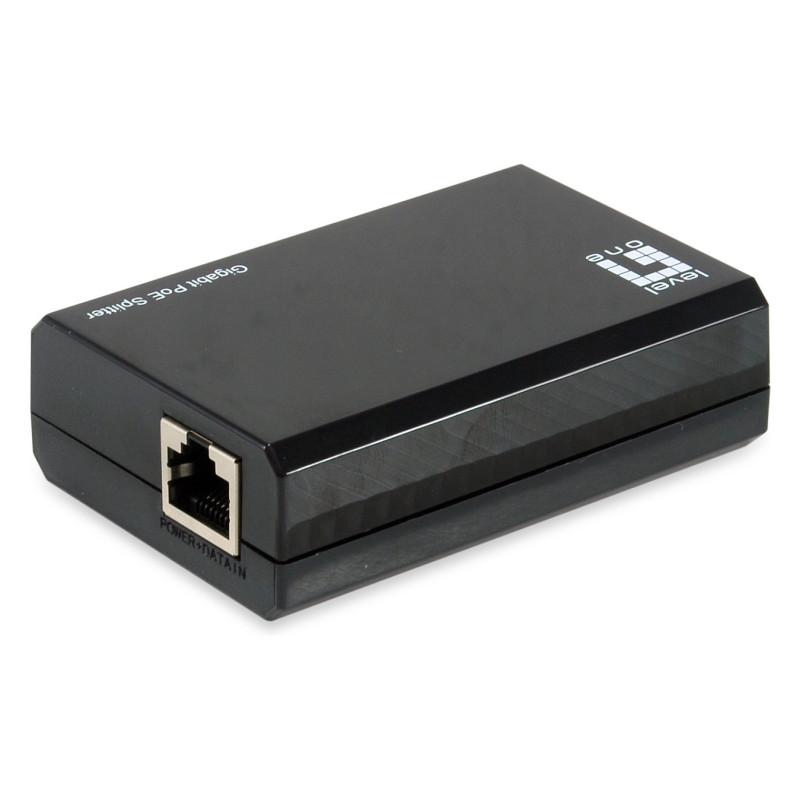

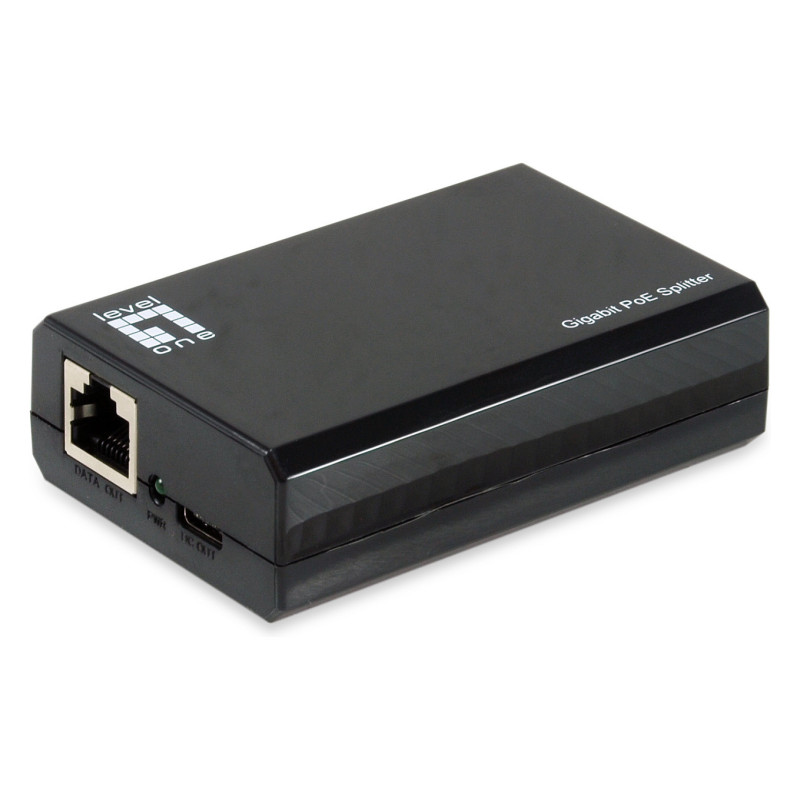

LevelOne POS-5001 network splitter

LevelOne Gigabit PoE bt to USB-C PD 3.0 Splitter. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Cabling technology: 10/100/1000Base-T(X), Product colour: Black. Compliance certificates: CE, RoHS, UKCA. Width: 53 mm, Depth: 24 mm, Height: 80 mm. Package width: 125 mm, Package depth: 55 mm, Package height: 125 mm. DC output voltage: 5V, 12V, 24V, Output power: 50 W

The LevelOne POS-5001 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V~24V) USB Type-C.

Features

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cabling technology: 10/100/1000Base-T(X)
Feature: Power over Ethernet (PoE)
Product colour: Black
LED indicators: Activity, Link, Power

Ports & interfaces

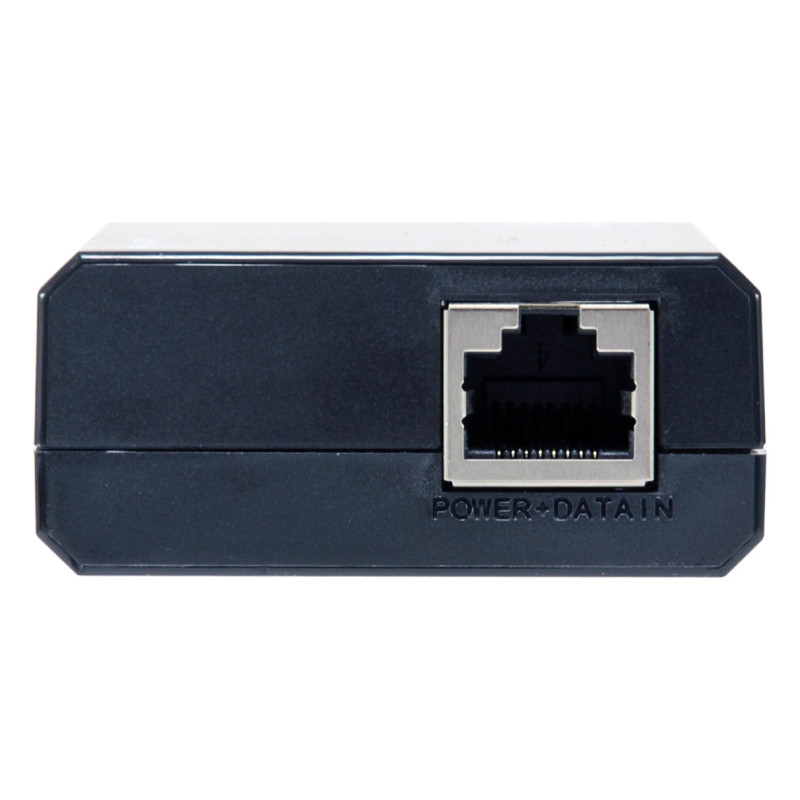

RJ-45 input ports: 1

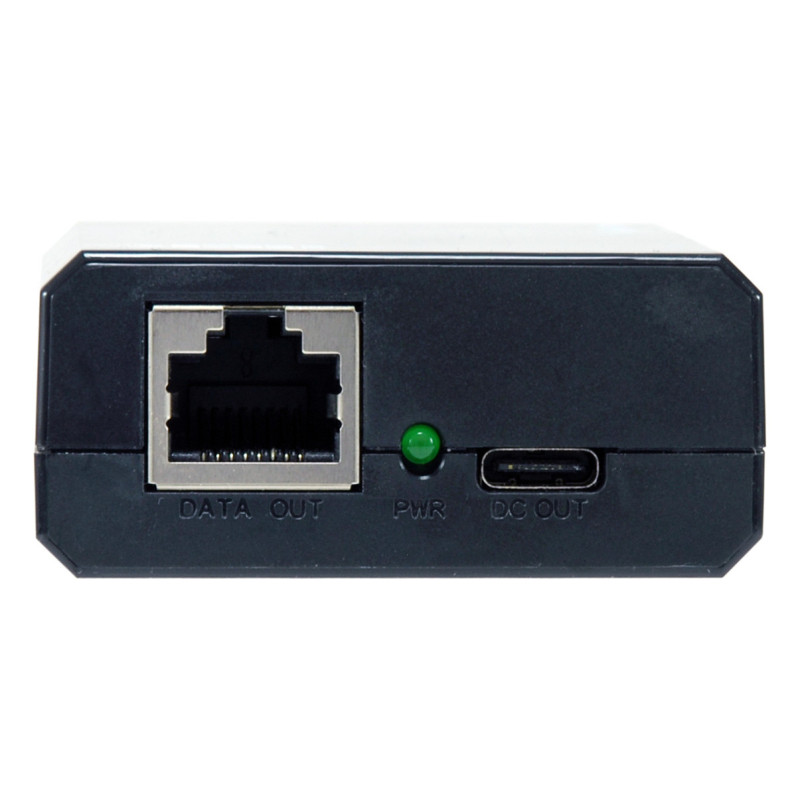

RJ-45 output ports: 1
USB Type-C output ports: 1

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, RoHS, UKCA

Weight & dimensions

Width: 53 mm
Depth: 24 mm
Height: 80 mm
Weight: 85 g

Packaging data

Package width: 125 mm
Package depth: 55 mm
Package height: 125 mm
Package weight: 900 g

Power

DC output voltage: 5V, 12V, 24V
Output power: 50 W
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 170 cm
Country of origin: China
Master (outer) case width: 290 mm
Master (outer) case length: 270 mm
Master (outer) case height: 640 mm
Master (outer) case gross weight: 5 kg
Products per master (outer) case: 50 pc(s)
