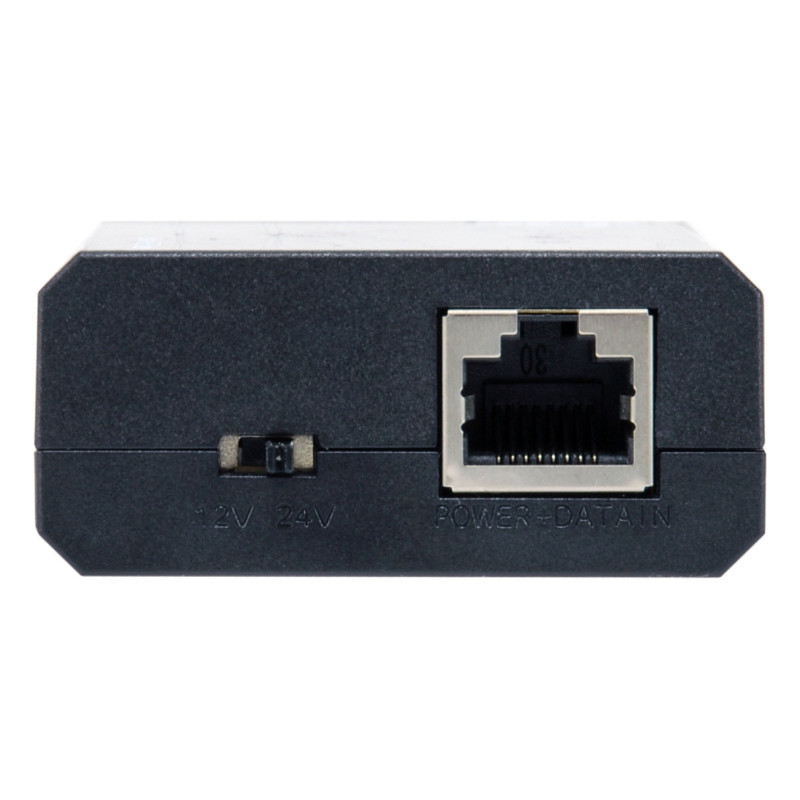

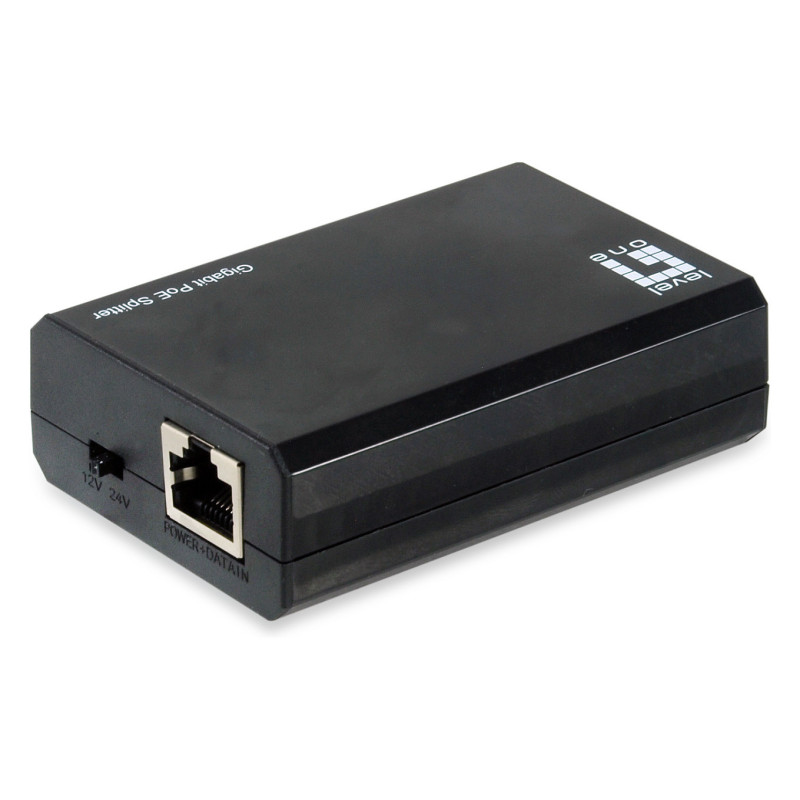

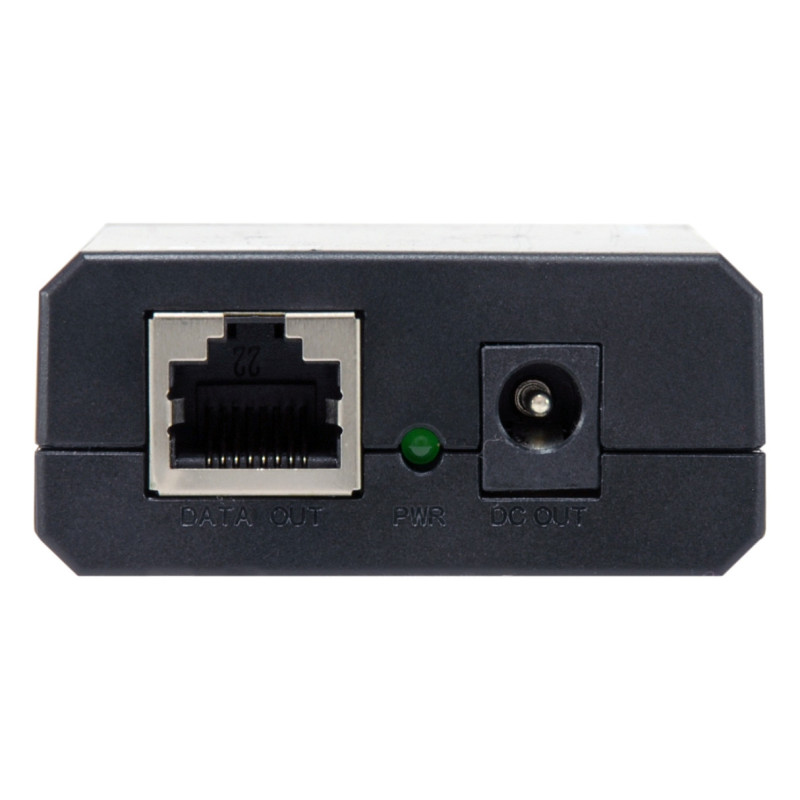

LevelOne POS-5000 network splitter

LevelOne Gigabit IEEE802.3bt PoE Splitter. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Cabling technology: 10/100/1000Base-T(X), Product colour: Black. Width: 53 mm, Depth: 24 mm, Height: 80 mm. Cables included: DC, LAN (RJ-45). Package width: 125 mm, Package depth: 55 mm, Package height: 125 mm. DC output voltage: 12V, 24V, Output power: 60 W

The LevelOne POS-5000 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (12V or 24V). Save installation and equipment cost when installing WiFi access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

Features

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cabling technology: 10/100/1000Base-T(X)
Feature: Power over Ethernet (PoE)
Product colour: Black
LED indicators: Yes

Ports & interfaces

RJ-45 input ports: 1
RJ-45 output ports: 1
Feature: DC-out jack

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 53 mm
Depth: 24 mm
Height: 80 mm
Weight: 80 g

Packaging content

Cables included: DC, LAN (RJ-45)

Packaging data

Package width: 125 mm
Package depth: 55 mm
Package height: 125 mm
Package weight: 600 g

Power

DC output voltage: 12V, 24V
Output power: 60 W

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 168 cm
Country of origin: China
Master (outer) case width: 290 mm
Master (outer) case length: 270 mm
Master (outer) case height: 640 mm
Master (outer) case gross weight: 5.5 kg
Products per master (outer) case: 50 pc(s)
