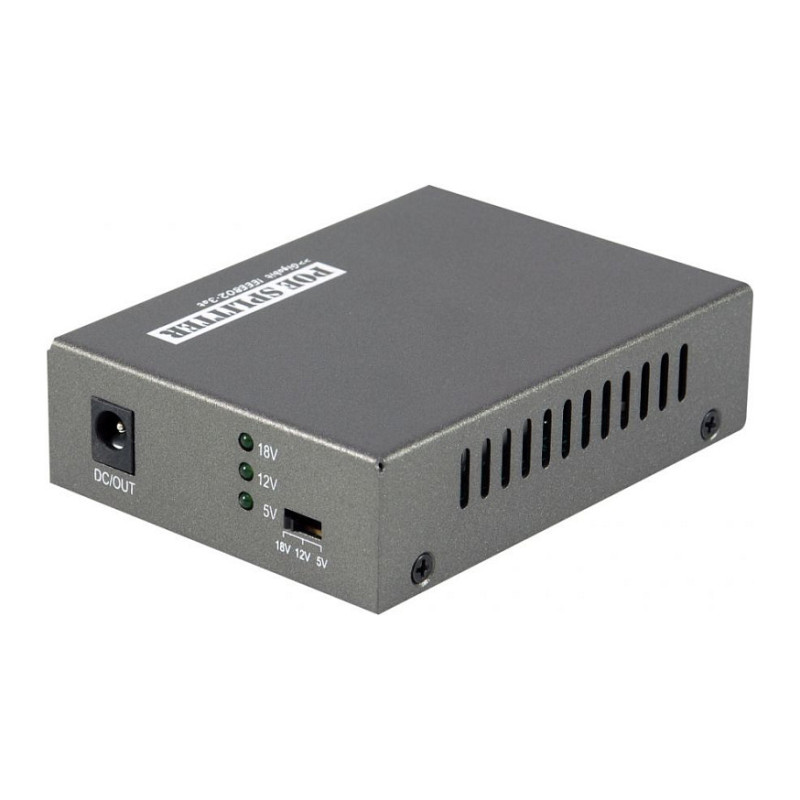

LevelOne POS-3000 network splitter

LevelOne Gigabit PoE Splitter, 802.3at/af PoE, 5-12V DC Output. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X), Product colour: Black. Width: 92 mm, Depth: 60 mm, Height: 27 mm. DC output voltage: 18V, Output voltage: 5, 12, 18 V, Output power: 25 W

The LevelOne POS-3000 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V or 12V or 18V). Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

Features

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)
Feature: Power over Ethernet (PoE)
Product colour: Black
LED indicators: Yes
Feature: Plug and Play

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1
Feature: DC-out jack

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 92 mm
Depth: 60 mm
Height: 27 mm
Weight: 85 g

Packaging content

Feature: Quick installation guide

Power

Feature: Adjustable output voltage
DC output voltage: 18V
Output voltage: 5, 12, 18 V
Output power: 25 W
Output current (5V): 3.5 A
Output current (12V): 2 A
Feature: Power auto-sensing
