LevelOne POS-1002 network splitter

LevelOne Fast Ethernet PoE Splitter, 802.3af PoE, 5-12V DC Output. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Cabling technology: 10/100Base-TX, Product colour: Black. Certification: CE, FCC, EN 60950:2006, RoHS. Width: 55 mm, Depth: 80 mm, Height: 31 mm. Quantity per pack: 1 pc(s). Package width: 125 mm, Package depth: 190 mm, Package height: 55 mm

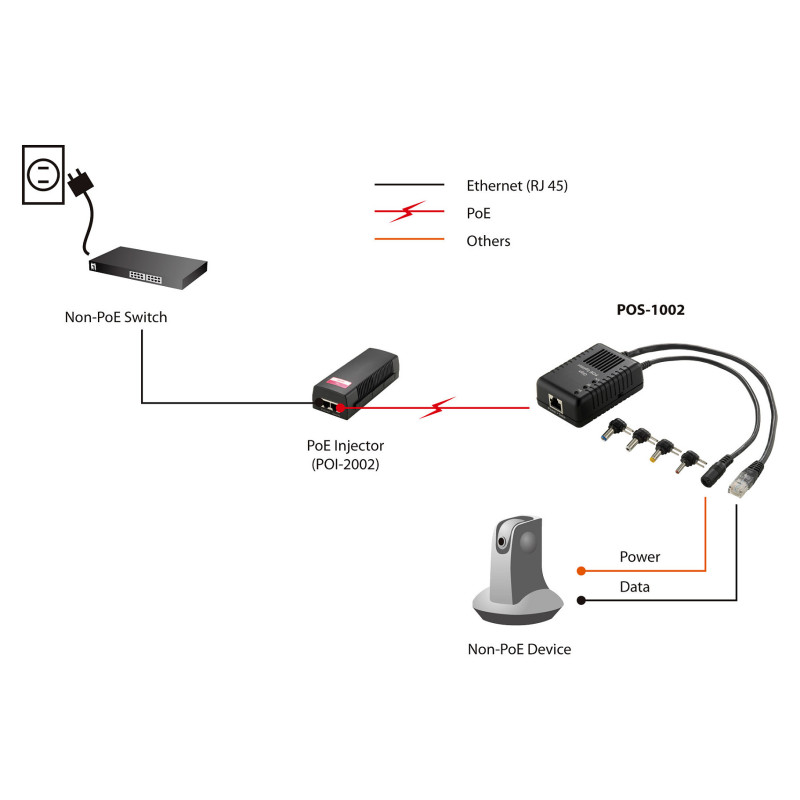

The LevelOne POS-1002 PoE Splitter splits a networked PoE signal into a separate power and Fast Ethernet data sources. This device allows administrators to run Fast Ethernet speed PoE cables over long distances, and then split the PoE signal into a separate data and power sources in order to run non-PoE devices. This active PoE splitter is available in the following output voltages (5V, 9V or 12V).

Save installation and equipment cost when installing access points, IP cameras and other devices in remote locations, with no need to install network devices near a power outlet. This compact splitter safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non-PoE network at Fast Ethernet speeds.

- IEEE 802.3af compliant
- Converts non-PoE devices with Power over Ethernet support
- DIP switch for 5V, 9V, and 12V adjustable output power
- Delivers power and data via a single Ethernet cable
- Eliminates the need for a bulky power adapter and powerline
- Compatible with Wireless Router, AP, Network Camera, Print Server, Converter
- Light weight and compact size

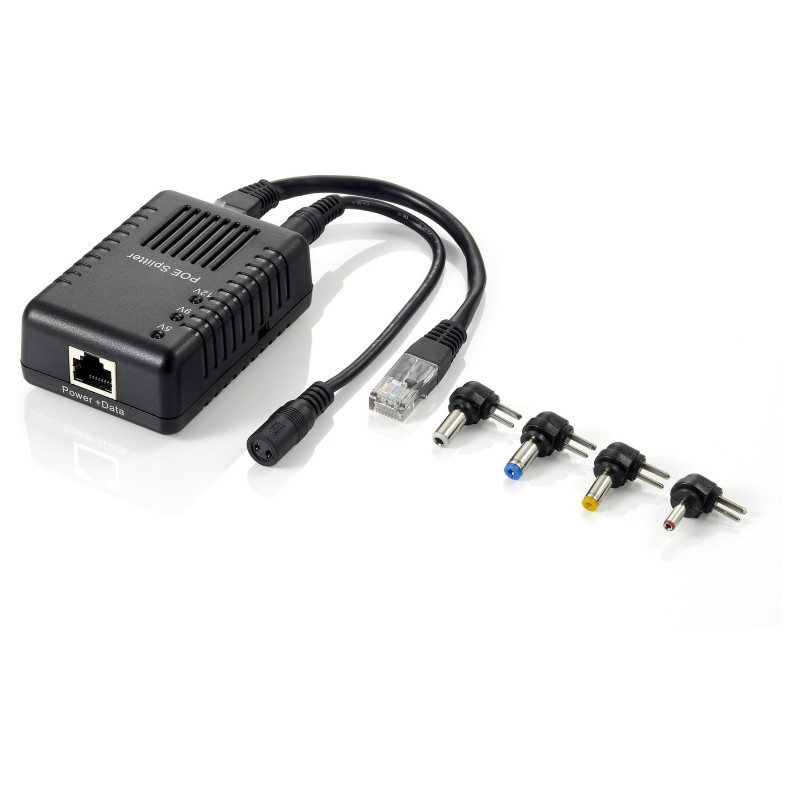

- Provides interchangeable tips

Features

Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Cabling technology: 10/100Base-TX
Feature: Power over Ethernet (PoE)
Product colour: Black
LED indicators: Power

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1
Feature: DC-out jack
Feature: Detachable power connectors
Supplementary power connectors: 4

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Certification: CE, FCC, EN 60950:2006, RoHS

Weight & dimensions

Width: 55 mm
Depth: 80 mm
Height: 31 mm
Weight: 76 g

Packaging content

Feature: Quick installation guide
Quantity per pack: 1 pc(s)

Packaging data

Package width: 125 mm
Package depth: 190 mm
Package height: 55 mm
Package weight: 260 g

Power

DC output voltage: 5V, 9V, 12V
Output current (5V): 2 A
Output current (9V): 1.1 A
Output current (12V): 1 A

Logistics data

Country of origin: China
