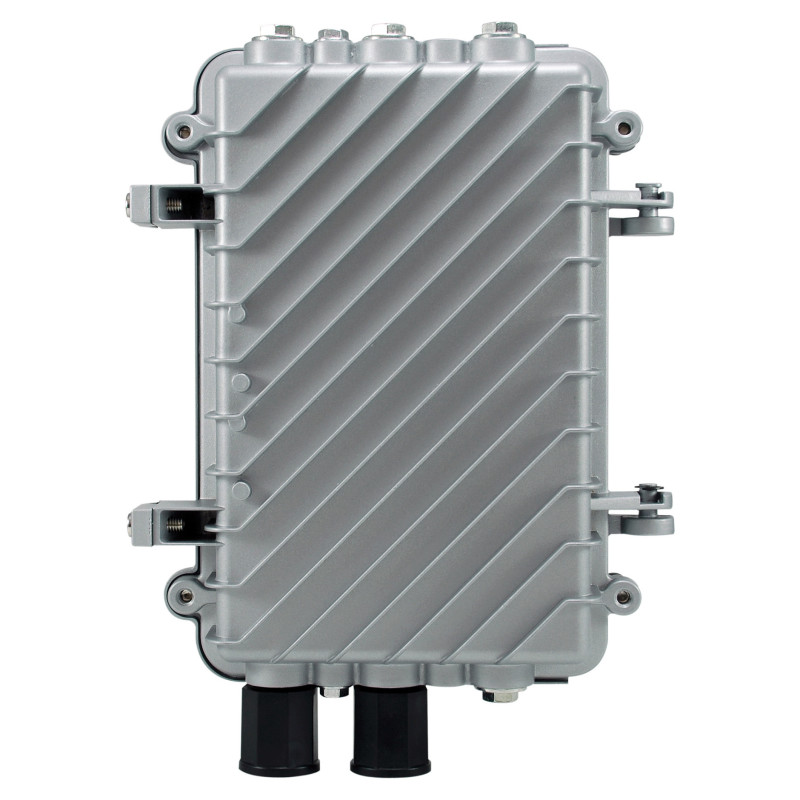

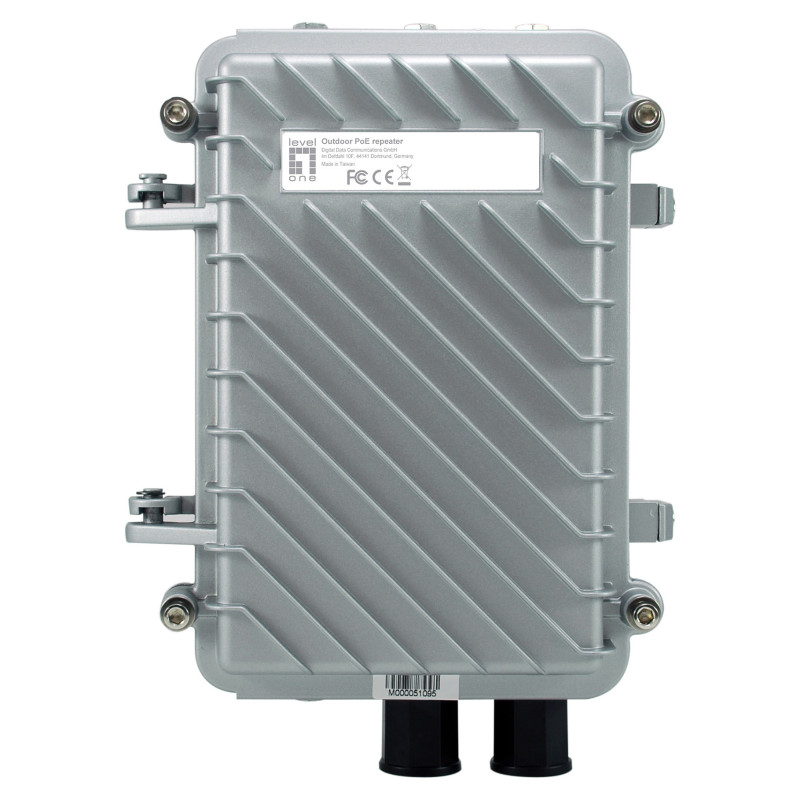

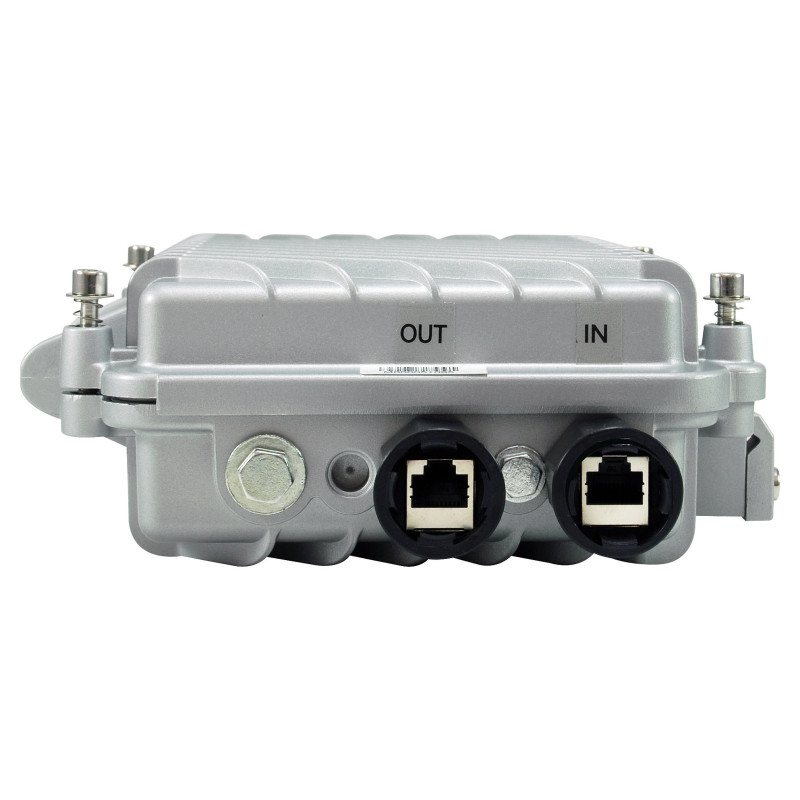

LevelOne POR-1100 network extender

LevelOne Outdoor PoE Repeater, Cascadable,. Type: Network repeater, Maximum transfer distance: 100 m, International Protection (IP) code: IP66. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Product colour: Silver, Country of origin: Taiwan. Width: 200 mm, Depth: 70 mm, Height: 270 mm. Package type: Box, Package width: 300 mm, Package depth: 80 mm

The LevelOne POR-1100 is the perfect accessory to increase your Power over Ethernet network performance. Normal ethernet cable runs only reach 100 meters, but with POR-1100 installers can extend the PoE network performance up to 200 meters! Simple yet durable, no software required. As a PoE Repeater, POR-1100 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-1100 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. The POR-1100 is the perfect solution for taking Ethernet to areas such as roof tops, factory floors, airports manufacturing plants, and large warehouses.

Performance

Type: Network repeater
Maximum transfer distance: 100 m
International Protection (IP) code: IP66
Feature: Plug and Play

Network

Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Design

Product colour: Silver
Country of origin: Taiwan

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 200 mm
Depth: 70 mm
Height: 270 mm
Weight: 1.08 kg

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 300 mm
Package depth: 80 mm
Package height: 210 mm
Package weight: 1.08 kg

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 170 cm
Master (outer) cases per pallet (sea): 15 pc(s)
Master (outer) case width: 560 mm
Master (outer) case length: 440 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 9.5 kg
Products per master (outer) case: 10 pc(s)
