LevelOne POI-3010 PoE adapter

LevelOne POI-3010. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 52 V, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Compliance certificates: RoHS, Certification: FCC Part 15, CE. Width: 143 mm, Depth: 51 mm, Height: 38 mm

The LevelOne POI-3010 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , the POI-3010 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward compatible to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11ac access points. For all the function featured in POI-3010, people can get the benefit of flexible network installation at lower cost and less downtime. It also provides a high-bandwidth pipe to the network.

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Features

Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Feature: Surge protection
Maximum operating distance: 100 m

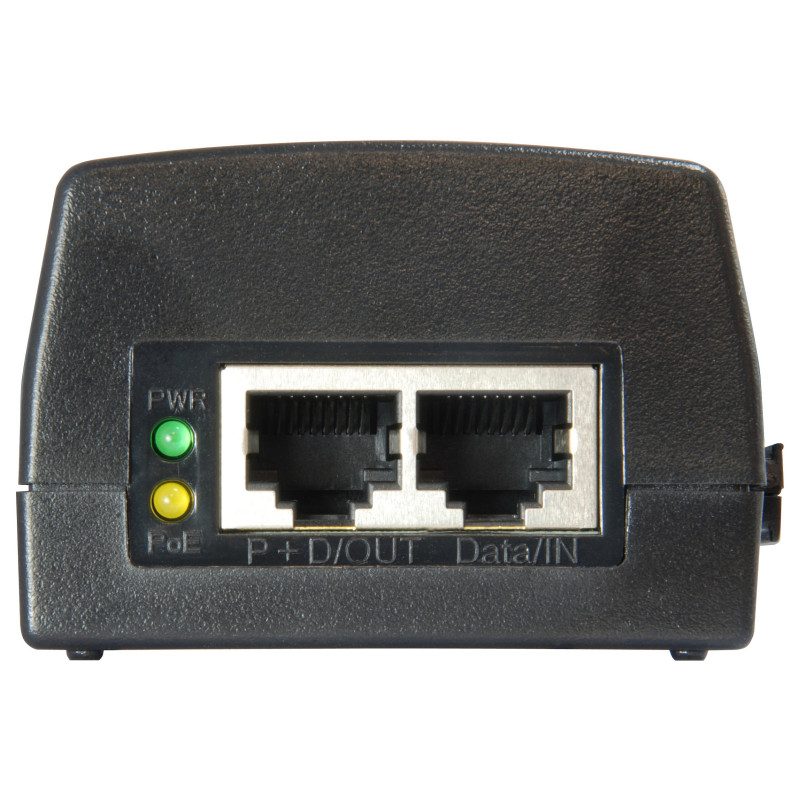

LED indicators: PoE, Power
Pin assignment & polarity: 1/2 (+), 3/6 (-)

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 52 V

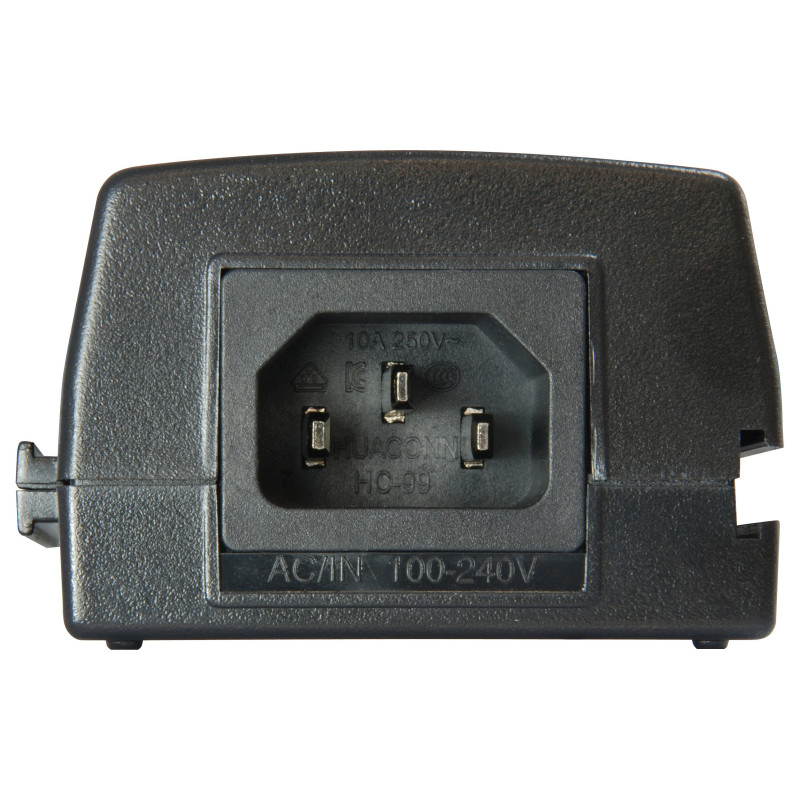

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.8 A
Output current: 0.6 A
Power consumption (max): 30 W
Power over Ethernet (PoE) power per port: 30 W

Certificates

Compliance certificates: RoHS
Certification: FCC Part 15, CE

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): 0 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 143 mm
Depth: 51 mm
Height: 38 mm
Weight: 350 g

Packaging content

Number of products included: 1 pc(s)
Feature: Power cord included
Feature: Quick installation guide

Packaging data

Package width: 210 mm
Package depth: 125 mm
Package height: 55 mm
Package weight: 400 g
Package type: Box

Logistics data

Harmonized System (HS) code: 85044095
