LevelOne POI-3000 PoE adapter

LevelOne Gigabit PoE Injector, 802.3at/af PoE, 30W. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, LED indicators: PoE, Power. Output power: 30 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: RoHS Compliant, CE/FCC. Width: 55 mm, Depth: 35.5 mm, Height: 173.5 mm

Advanced PoE Solution

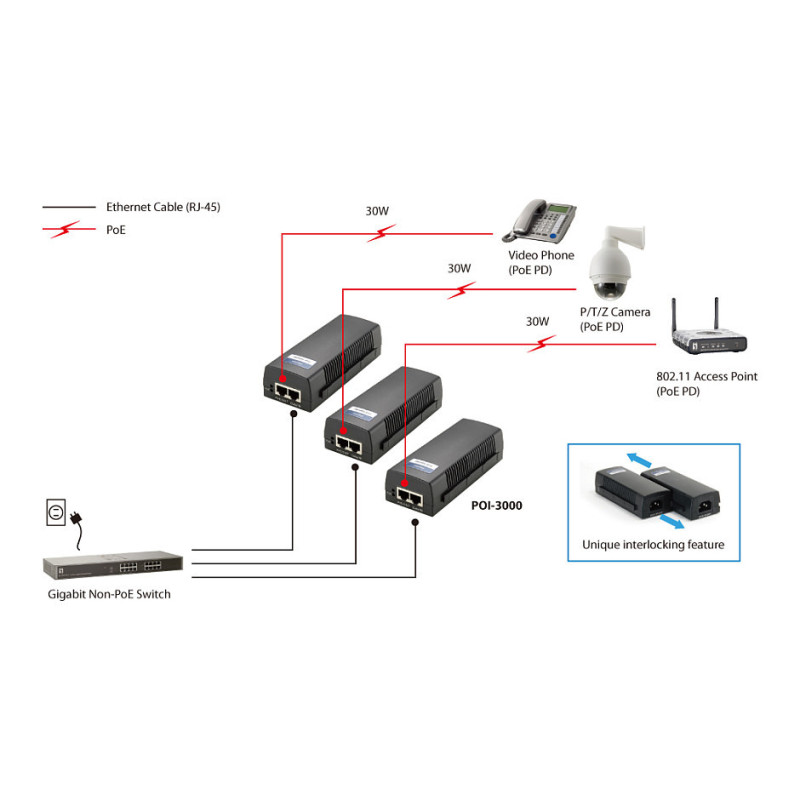

The LevelOne POI-3000 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , POI-3000 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in POI-3000, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.

- Up to 30W of PoE Power Feeding on 2-pairs
- IEEE 802.3at Compliant
- IEEE 802.3af backward compatible
- Compatible with IEEE 802.3af or Legacy PoE applications
- Safe on Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non-standard Ethernet Terminals
- Supports 10/100/1000Base-T LAN environment
- Unique interlocking feature for easy installation

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)

Features

Product colour: Black

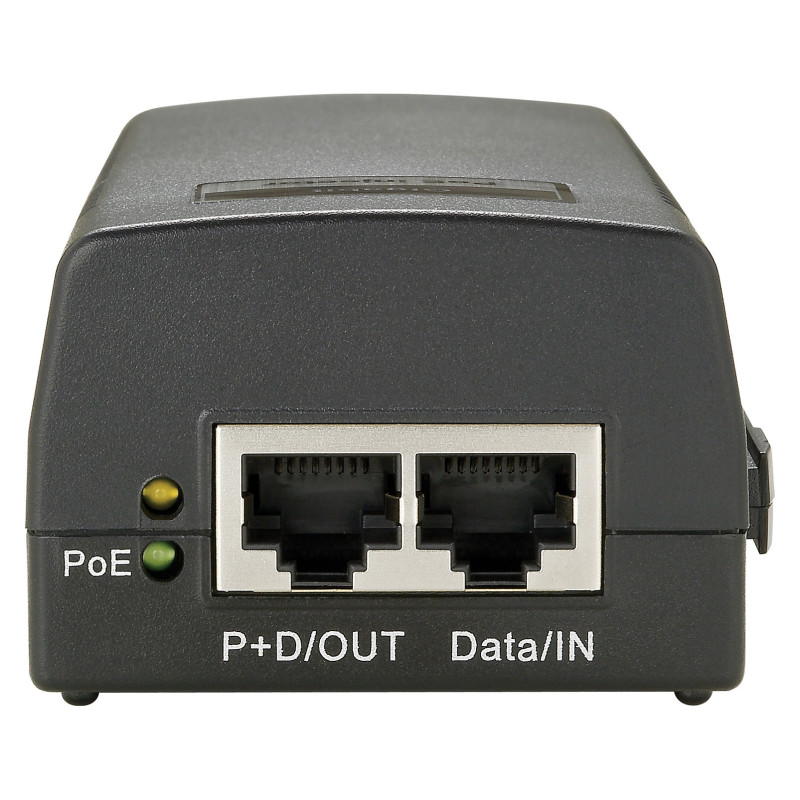

LED indicators: PoE, Power

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Output power: 30 W
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input current: 0.8 A

Certificates

Certification: RoHS Compliant, CE/FCC

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 55 mm
Depth: 35.5 mm
Height: 173.5 mm
Weight: 280 g

Packaging content

Number of products included: 1 pc(s)

Packaging data

Package width: 55 mm
Package depth: 125 mm
Package height: 210 mm
Package weight: 450 g

Logistics data

Harmonized System (HS) code: 85044095
