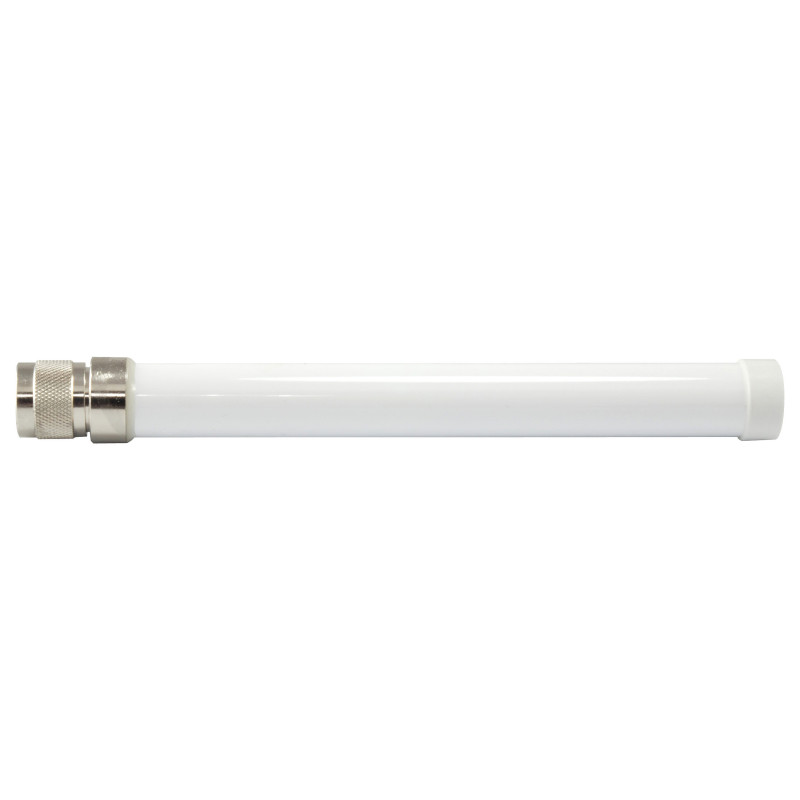

LevelOne OAN-4058 network antenna

LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor. Antenna gain level (max): 8 dBi, Frequency band: 2.4 - 5 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 22 mm, Depth: 203 mm, Height: 22 mm. Package width: 70 mm, Package depth: 60 mm, Package height: 265 mm. Quantity per pack: 1 pc(s)
The LevelOne OAN-4058 is an omni-directional antenna operating on the 2.4 GHz and 5GHz frequency that can be mounted either indoors or outdoors. The antenna's gain value 2.4GHz/5GHz is 5dBi/8dBi, and if mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions.

Performance

Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Gain: 5 / 8 dBi
Antenna gain (2.4 GHz): 5 dBi
Antenna gain (5 GHz): 8 dBi
Impedance: 50 Ω
Horizontal beam width (2.4 GHz): 360°
Vertical beam width (2.4 GHz): 51.7°
Horizontal beam width (5 GHz): 360°
Vertical beam width (5 GHz): 27.7°
Antenna gain level (max): 8 dBi

Features

Antenna type: Omni-directional antenna

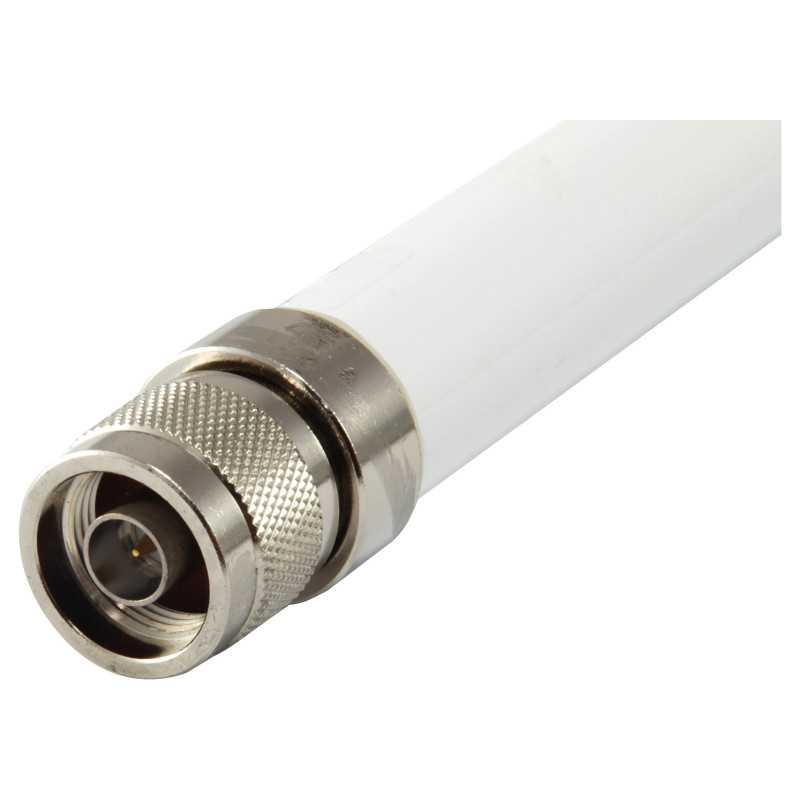

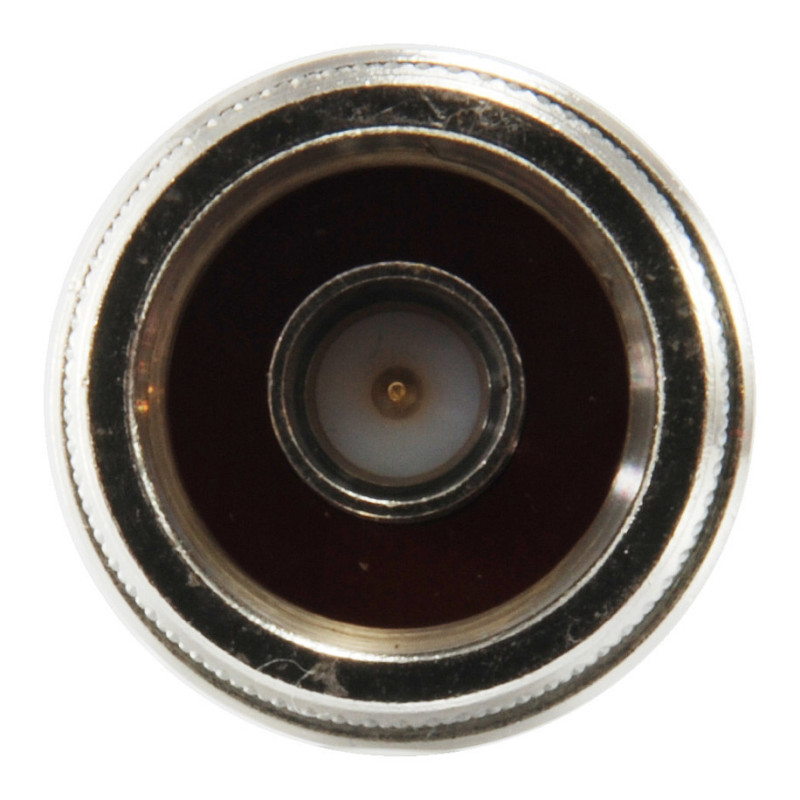

Antenna connector type: N-type
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2
Product colour: White

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 22 mm
Depth: 203 mm
Height: 22 mm
Weight: 860 g

Packaging data

Package width: 70 mm
Package depth: 60 mm
Package height: 265 mm
Package weight: 192 g
Package type: Blister

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85177100
Country of origin: Taiwan
Master (outer) case width: 480 mm
Master (outer) case length: 560 mm
Master (outer) case height: 290 mm
Master (outer) case gross weight: 11 kg
Master (outer) case volume: 50 cm³
Products per master (outer) case: 50 pc(s)
