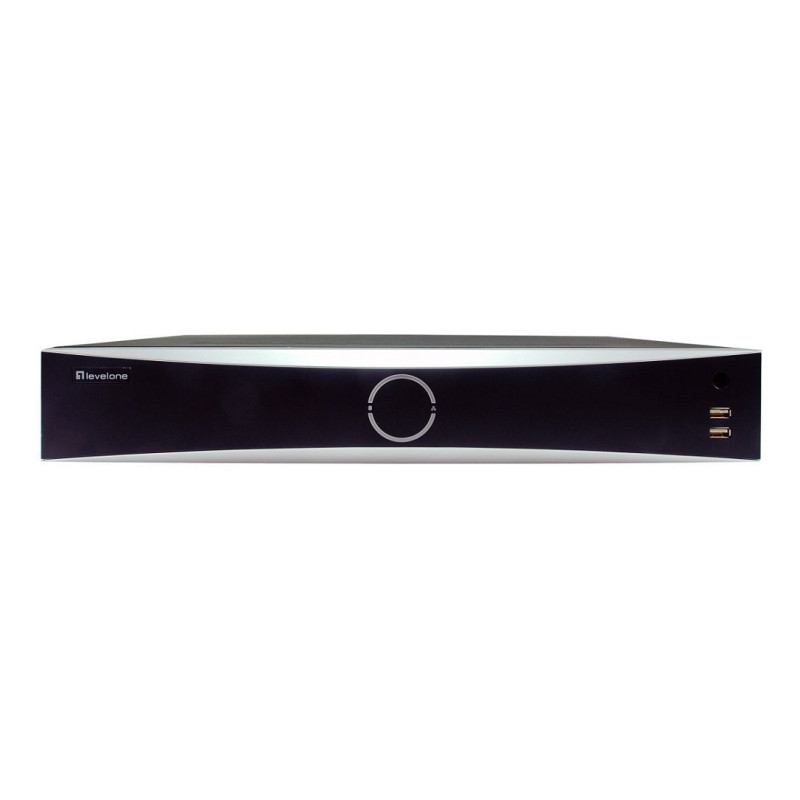

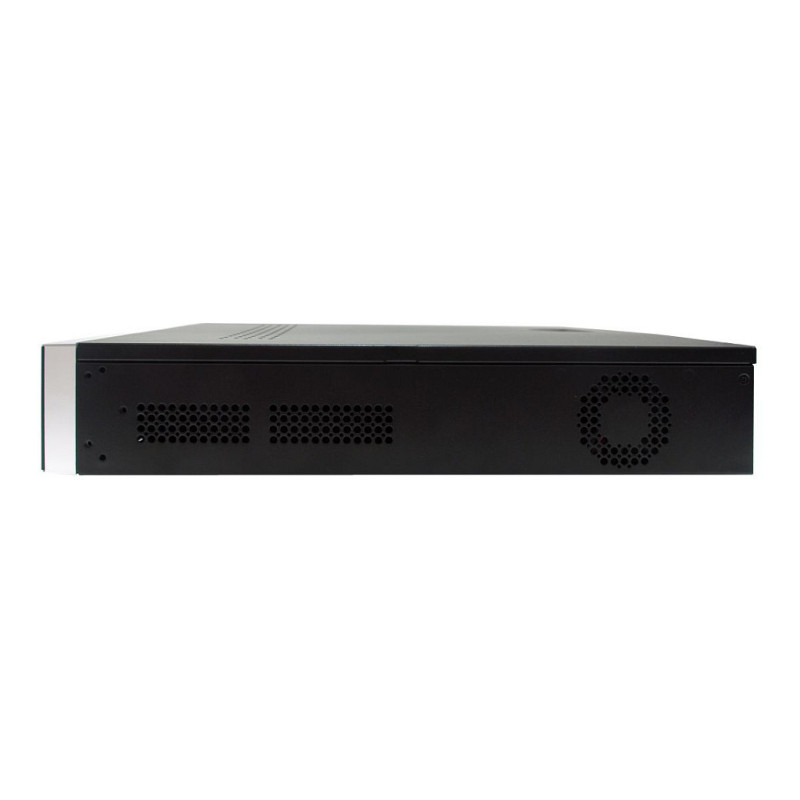

LevelOne NVR-0411 network video recorder

LevelOne NVR-0411. Video input channels: 32 channels, Maximum resolution: 4096 x 2160 pixels, Number of simultaneously playbacked channels: 256 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Product colour: Black, Grey. Power consumption (max): 200 W, Power consumption (typical): 20 W, Power over Ethernet (PoE) power per port: 16 W. Browser supported: IE11, Chrome V57, Firefox V52, Safari V12, Edge V889

The LevelOne NVR-0411 NVR enables live view, recording and playback for up to 32 IP network cameras at the same time, featuring up to 12-megapixel resolution and H.265/H.264+/H.264 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app. 4 HDD bays complete the package, with a disk capacity of up to 10TB making the LevelOne NVR-0411 a powerful, smart and cost-effective solution for managing your security network.

The Guarding Vision Central Management System(CMS) software is included for free, with no license fees. The Guarding Vision CMS is capable of managing up to 256 channels, making it suitable for large scale surveillance applications.

Performance

Video input channels: 32 channels
Number of simultaneously playbacked channels: 256 channels
Maximum resolution: 4096 x 2160 pixels
Supported resolutions: 2MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QC
Feature: Video motion detection
Video formats supported: H.264, H.264+, H.265, H.265+
Maximum frame rate: 30 fps
Input bandwidth: 256 Mbit/s
Output bandwidth: 160 Mbit/s

Hard drive

Number of HDDs supported: 4
Maximum storage capacity: 10 TB
HDD interface: SATA

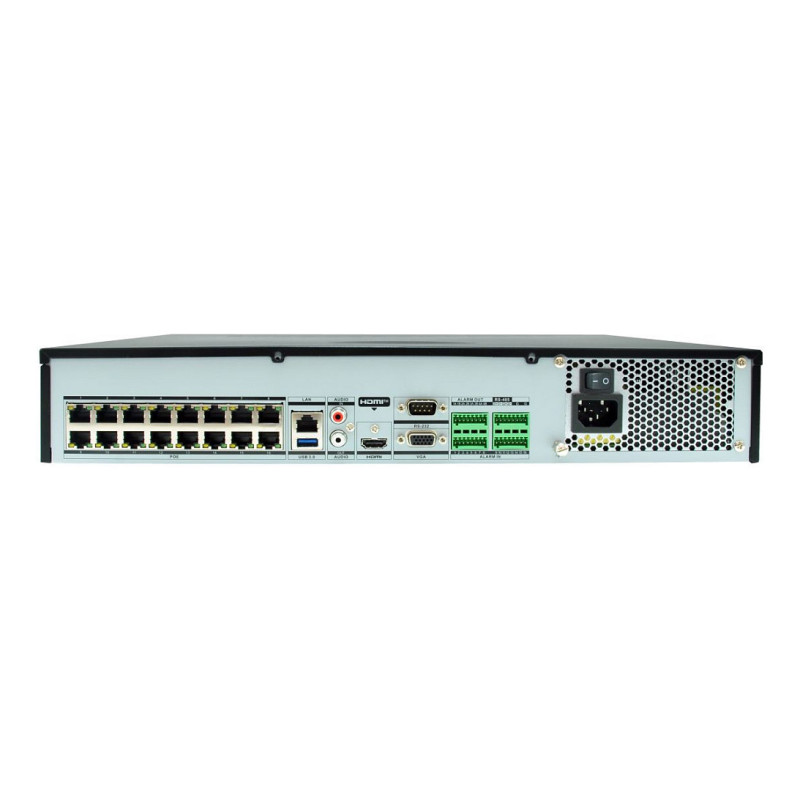

Ports & interfaces

Ethernet LAN (RJ-45) ports: 17
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Audio RCA inputs: 1
Audio RCA outputs: 1
eSATA ports quantity: 1
RS-485 ports: 1
Feature: RS-232 interface
Feature: eSATA
RS-232 ports: 1

Features

Feature: Rack mounting
LED indicators: Yes
Feature: On/off switch
Product colour: Black, Grey

Power

Power consumption (max): 200 W
Power consumption (typical): 20 W
Power over Ethernet (PoE) power per port: 16 W

System requirements

Browser supported: IE11, Chrome V57, Firefox V52, Safari V12, Edge V889

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 5 - 95%

Technical details

Compliance certificates: BIS, CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RCM, REACH, RoHS, UKCA, UL, WEEE

Weight & dimensions

Width: 445 mm
Depth: 400 mm
Height: 75 mm
Weight: 5 kg
Package type: Box

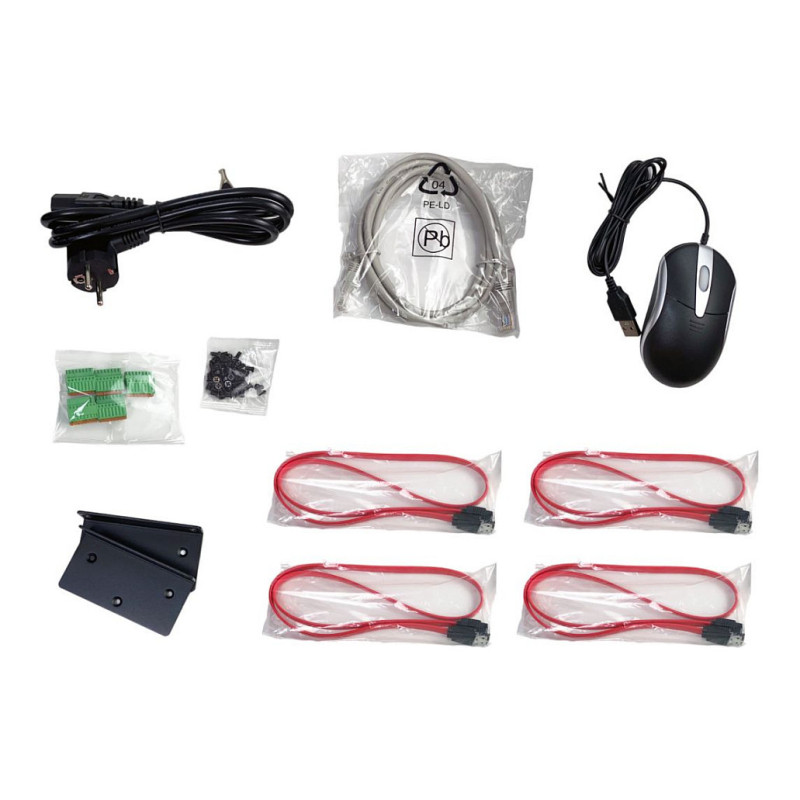

Packaging content

Cables included: AC, SATA
Feature: Quick installation guide
