LevelOne IGS-2128 network switch

LevelOne Hilbert 28-Port Industrial Gigabit Smart Lite Switch, 24x RJ45, 4x SFP/RJ45 Combo. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 28. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 12 - 57 V. Rack mounting

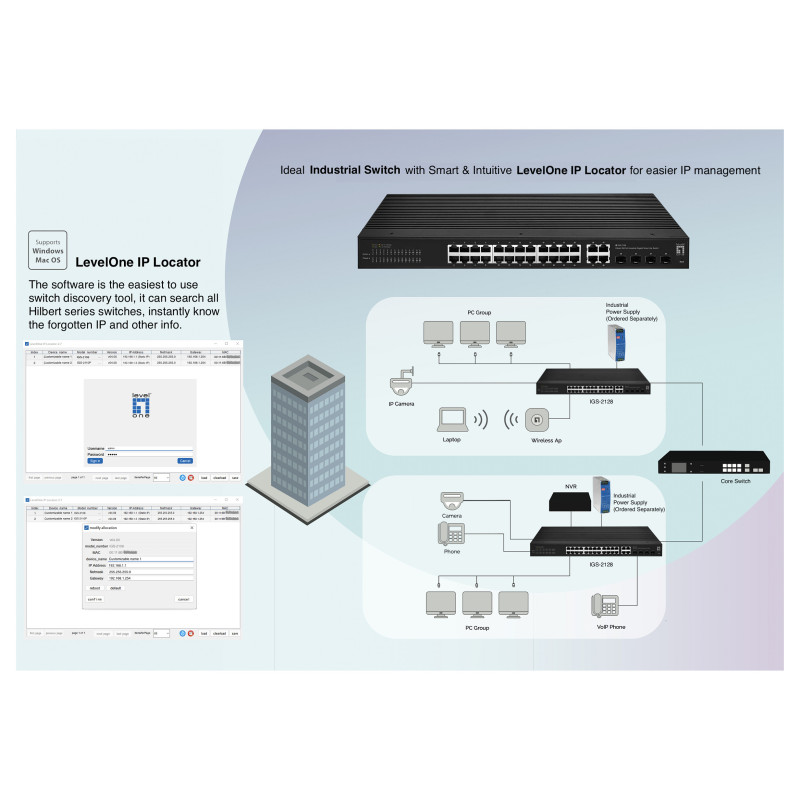

The LevelOne IGS-2128 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. IGS-2128 delivers 24 (10M/100M/1G) RJ45 ports and 4 Combo GbE RJ45/SFP ports. With the standard 19" Rack mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne IGS-2128 provides high HW performance and environment flexibility for Enterprises. IGS-2128 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 28
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Combo SFP ports quantity: 4

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 56 Gbit/s
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

Feature: IGMP snooping
Queue scheduling algorithms: Priority queuing (PQ)

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Power, Link, Activity
International Protection (IP) code: IP30

Performance

Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 43800 h

Power

Power source: DC
Feature: Redundant power supply (RPS) support
DC input voltage: 12 - 57 V
Power consumption (typical): 20 W
Feature: Surge protection
Surge protection voltage: 4 kV
Power protection features: Surge protection

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 68.24 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 244 mm
Height: 45 mm
Weight: 3.4 kg

Packaging content

Feature: Quick start guide
Feature: Rack mount kit

Packaging data

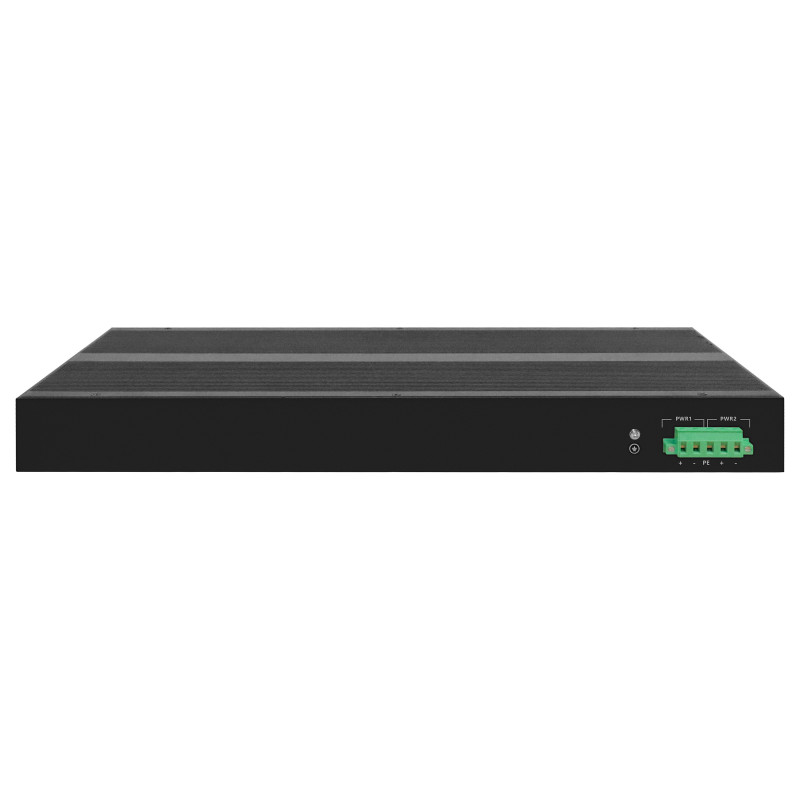

Feature: Terminal block included
Package type: Box
Package width: 510 mm
Package depth: 375 mm
Package height: 93 mm
Package weight: 4 kg

Sustainability

Feature: Sustainability compliance

Technical details

Layers per pallet (air): 16 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA

Logistics data

Pallet gross height: 174.4 cm
Country of origin: China
Master (outer) case width: 540 mm
Master (outer) case length: 320 mm
Master (outer) case height: 400 mm
Harmonized System (HS) code: 8517620090
Master (outer) case gross weight: 12.5 kg
Products per master (outer) case: 3 pc(s)
