LevelOne IGP-1271 network switch

LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 48 - 57 V. Power over Ethernet (PoE)

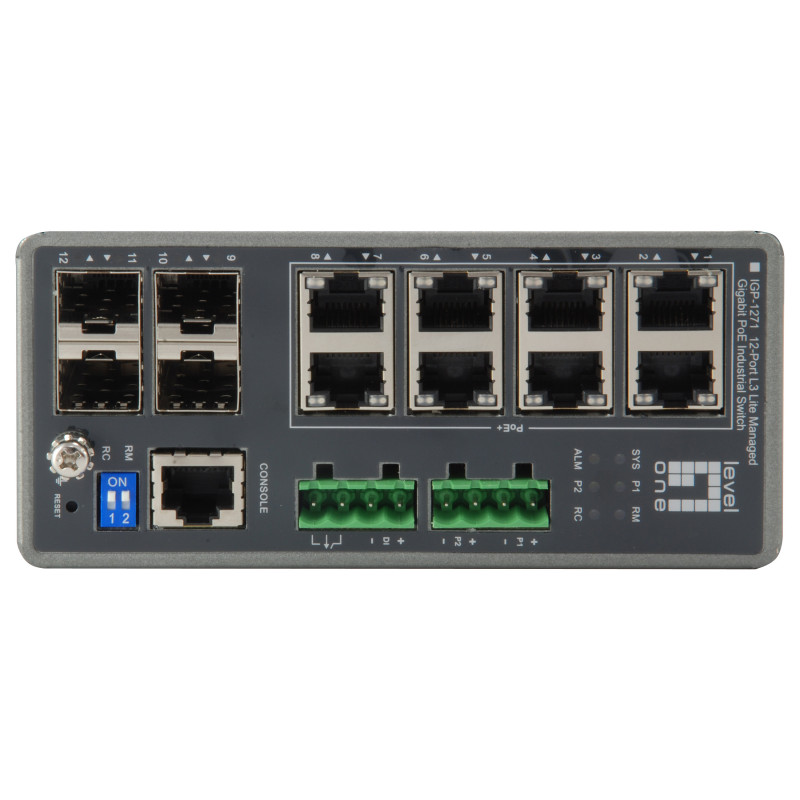

The LevelOne IGP-1271, a L3 Lite Managed PoE Industrial Switch with 8 ports of Gigaibit RJ45 PoE and 4 ports of Gigabit SFP. This switch is offering full suite of L2 management features, better PoE functionality with 240W PoE power budget and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in enterprise networks via fiber or copper connections.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Console port: RJ-45

Network

Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: Ethernet Ring Protection Switching (ERPS)
Feature: VLAN support
Virtual LAN features: Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet-based VLAN

Data transmission

Switching capacity: 24 Gbit/s
Forwarding rate: 17.856 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.5 MB

Security

DHCP features: DHCP server, DHCP snooping, DHCP relay, DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: Loop protection
Feature: Root protection
Feature: BPDU tunneling

Protocols

Management protocols: SNMP, Web, Telnet, SSH
Supported network protocols: IPv4/IPv6
Feature: GARP VLAN Registration Protocol (GVRP)

Design

Product colour: Grey
Feature: Reset button
LED indicators: Alarm, Power, Ring, Status, System
International Protection (IP) code: IP30
Feature: DIN rail mounting
Safety: UL, CB

Performance

Internal memory: 128 MB
Flash memory: 32 MB
Feature: Firmware upgradeable
Feature: Telnet
Feature: sFlow
Mean time between failures (MTBF): 476206 h

Power

Feature: Redundant power supply (RPS) support
DC input voltage: 48 - 57 V
Power consumption (max): 239.2 W
Power protection features: Short circuit

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 816.18 BTU/h

Weight & dimensions

Width: 62 mm
Depth: 130 mm
Height: 135 mm
Weight: 700 g

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick start guide
Feature: Manual

Packaging data

Feature: Resource CD
Package width: 255 mm
Package depth: 207 mm
Package height: 85 mm
Package weight: 900 g

Certificates

Certification: RoHSFCC,CEEN61000-4-2EN61000-4-3EN61000-4-4EN61000-4-5EN61000-4-6IEC60068-2-32IEC60068-2-27IEC60068-2-6

Logistics data

Country of origin: Taiwan
Master (outer) case width: 520 mm
Master (outer) case length: 445 mm
Master (outer) case height: 220 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 2.4 kg
Products per master (outer) case: 10 pc(s)
