LevelOne IGP-1061 network switch

LevelOne IGP-1061. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 48 - 57 V. Power over Ethernet (PoE)

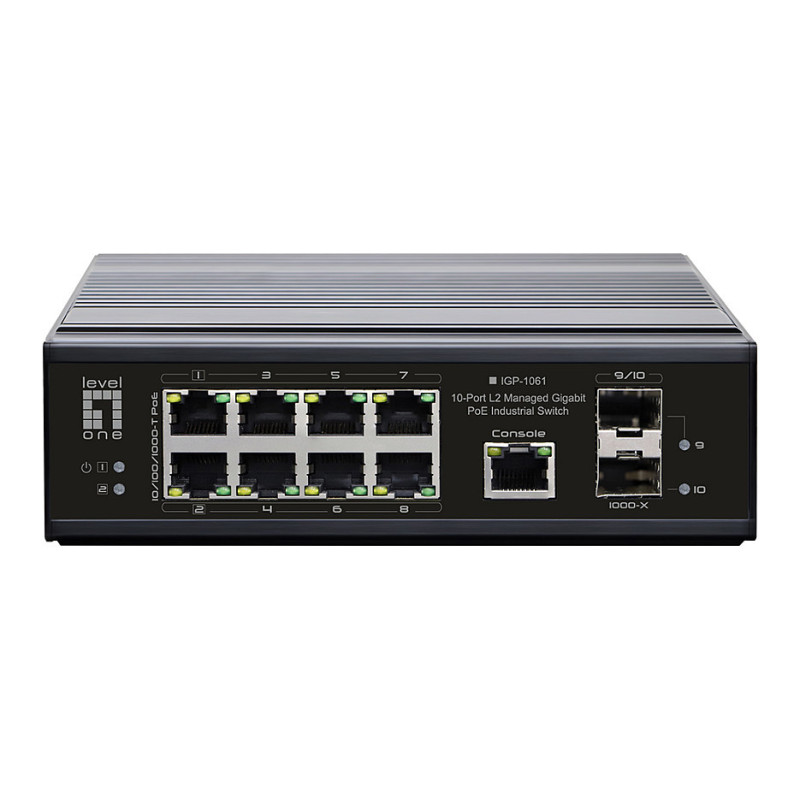

The LevelOne IGP-1061 L2 Managed Gigabit PoE Industrial Switch, provides 8 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at/bt PoE standard at maximum 90W(1-2 port) power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Installed SFP modules quantity: 2
Console port: RJ-45

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

MAC address table: 8000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000

Security

DHCP features: DHCP Option 82, DHCP client, DHCP relay, DHCP snooping
Feature: MAC address filtering
Feature: BPDU filtering/protection
Feature: Password protection

Multicast features

Feature: Multicast support

Design

Product colour: Black
LED indicators: Activity, Link, PoE, Power
Feature: DIN rail mounting

Performance

Internal memory: 1024 MB
Flash memory: 128 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 338634 h

Power

Power source: DC

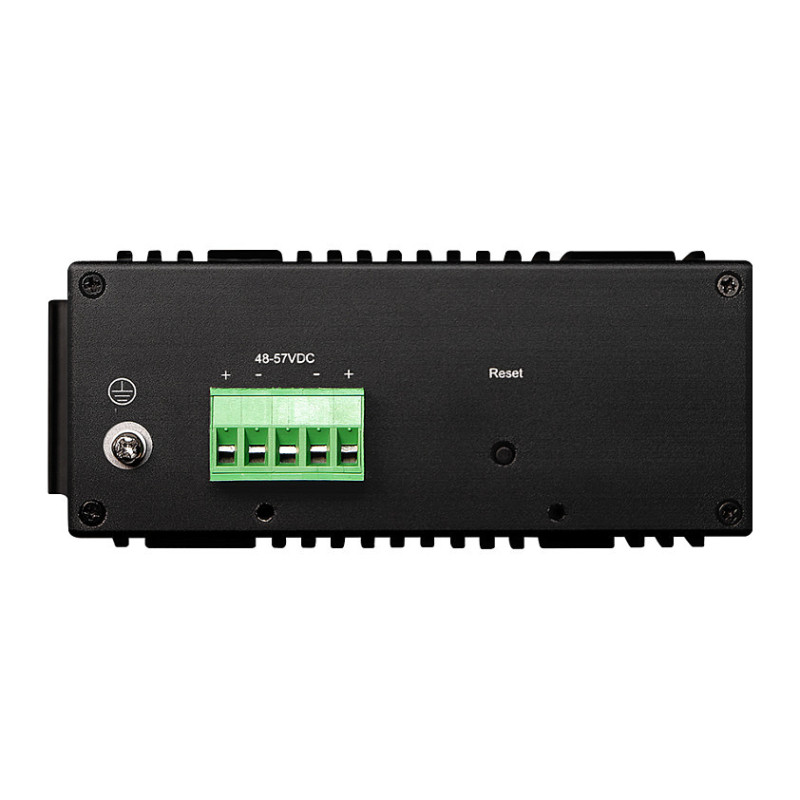

DC input voltage: 48 - 57 V
Power consumption (typical): 5 W
Power consumption (max): 380 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 10 W
Total Power over Ethernet (PoE) budget: 360 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 165 mm
Depth: 115 mm
Height: 50 mm
Weight: 500 g

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 270 mm
Package depth: 181 mm
Package height: 74 mm
Package weight: 1.13 kg

Certificates

Certification: CE, RoHS

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
