LevelOne IGP-0432 network switch

LevelOne IGP-0432. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2. MAC address table: 8000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)

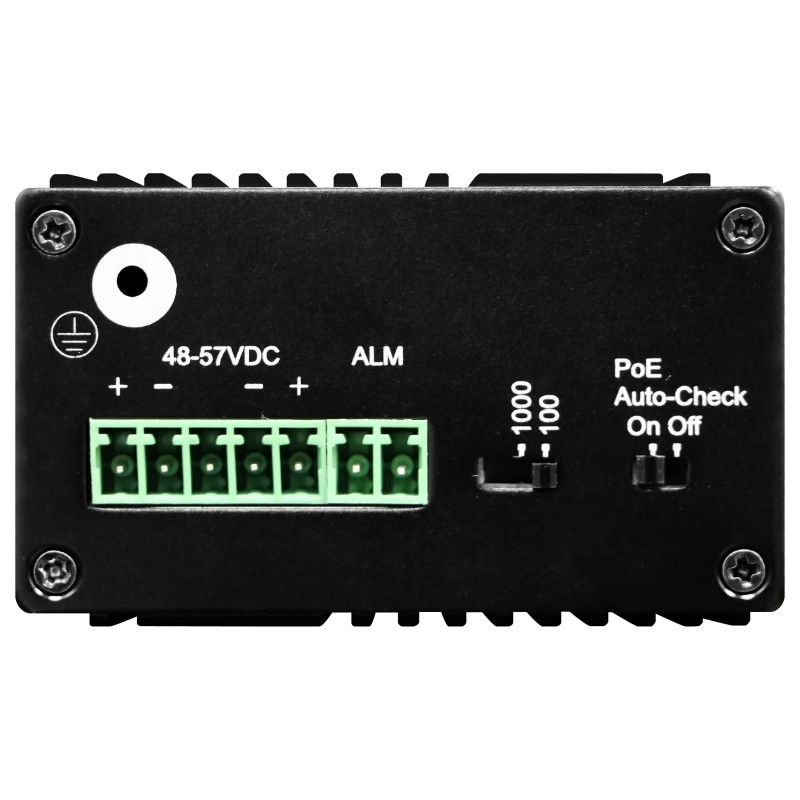

LevelOne IGP-0432 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at/af PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 2
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates: 1000 Mbit/s

Data transmission

Switching capacity: 8 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 5.95 MB

Design

Product colour: Black
LED indicators: Activity, Alarm

Performance

Feature: Fanless

Power

Power source: DC
DC input voltage: 48 - 57 V
Power consumption (typical): 5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 60 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 65 mm
Depth: 35 mm
Height: 101 mm
Weight: 300 g

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 110 mm
Package depth: 62 mm
Package height: 130 mm
Package weight: 350 g

Technical details

Pallet net height: 152.5 cm
Pallet net length: 80 cm
Pallet net width: 120 cm

Logistics data

Country of origin: China
