LevelOne IGC-0101 network media converter

LevelOne RJ45 to SFP Gigabit Industrial Media Converter, 1 PoE Output. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Mean time between failures (MTBF): 500000 h. LED indicators: Activity, Link, Power. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 48 - 56 V, Power consumption (typical): 2 W, Total Power over Ethernet (PoE) budget: 30 W

This IGC-0101 Industrial POE media converter is equipped with Hardened Marvell IC to provide a reliable power source to power up your remote POE device. It is designed for Security, Transportation and Telco application to extend your network distances. With its multi-purpose design, it can also be used for Din-Rail or wall-mounted. It is an ideal unit for IP surveillance, traffic monitoring and Security application in critical environment. It can tolerate -40°C to 75°C in harsh environment to perform a reliable network.

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support

Performance

Mean time between failures (MTBF): 500000 h

Features

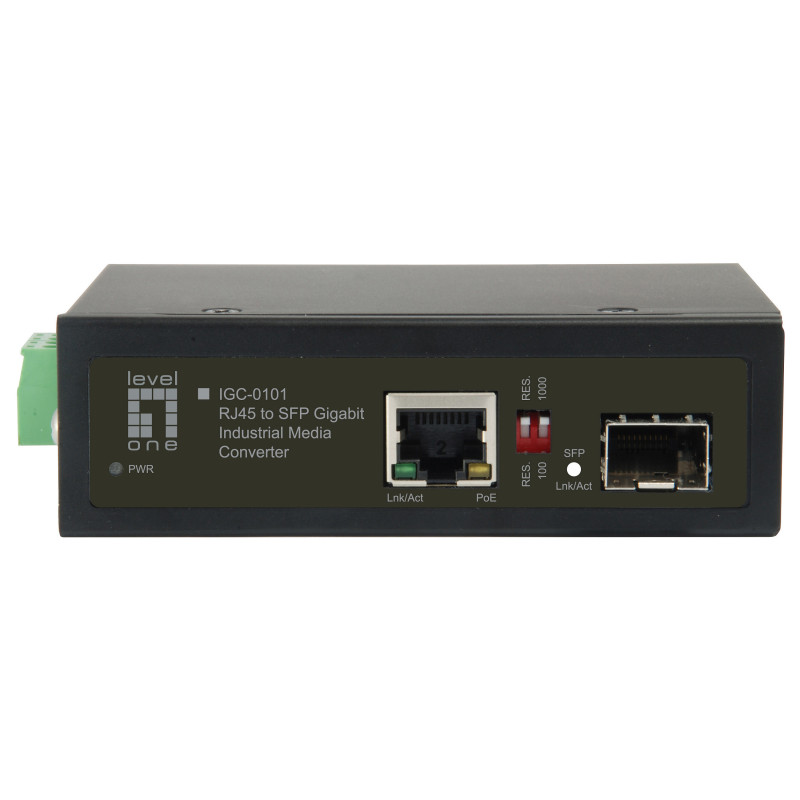

LED indicators: Activity, Link, Power

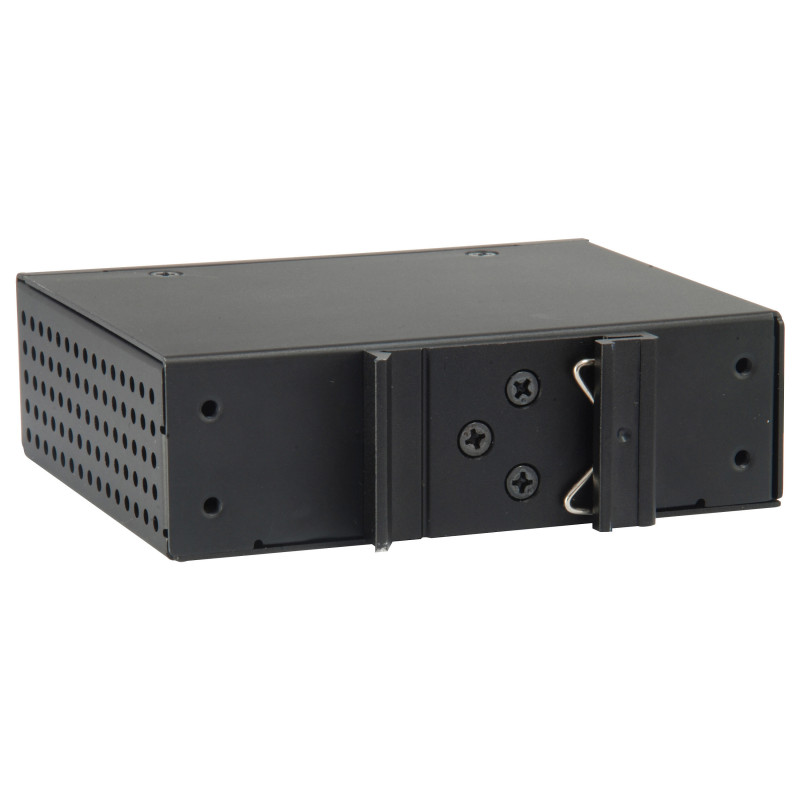

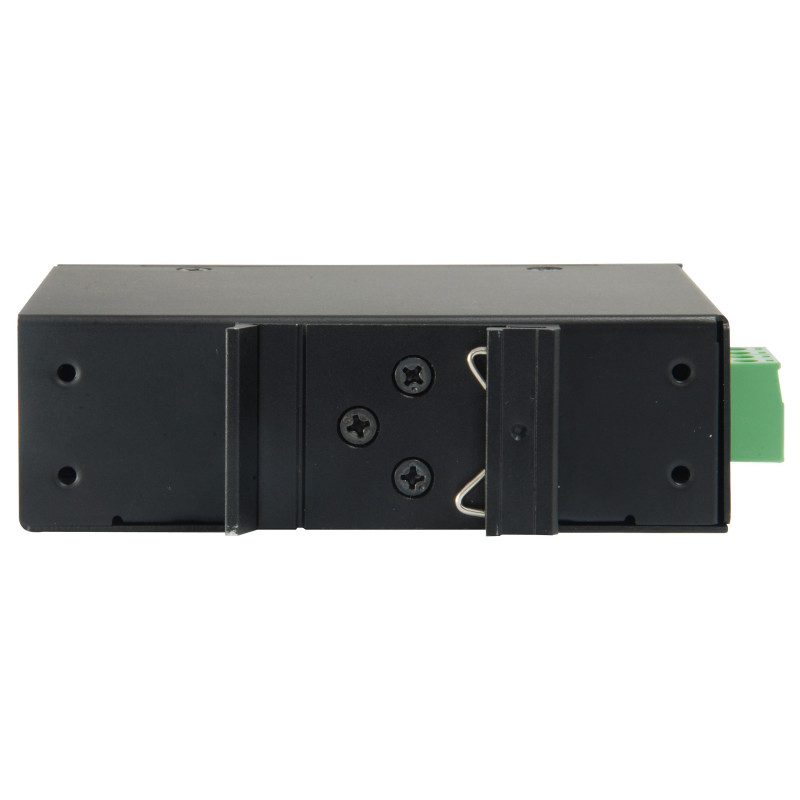

Feature: DIN rail mounting

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet (PoE) ports quantity: 1

Power

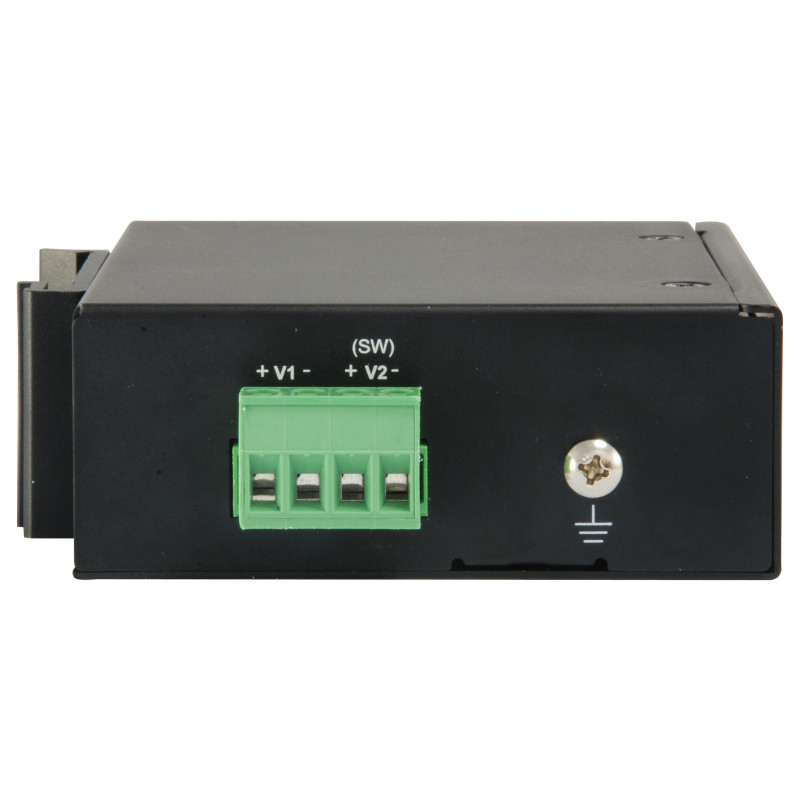

Input voltage: 48 - 56 V
Power consumption (typical): 2 W
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 30 W

Weight & dimensions

Width: 32 mm
Depth: 81.5 mm
Height: 103.5 mm
Weight: 135 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Packaging content

Feature: Manual

Packaging data

Package width: 165 mm
Package depth: 65 mm
Package height: 215 mm
Package weight: 350 g

Certificates

Safety: IEC EN60950-1
Certification: CE, FCC, VCCI, FCC Part 15 Subpart B Class A, CE EN 55022 Class A

Logistics data

Country of origin: Taiwan
Harmonized System (HS) code: 85176990
Master (outer) case width: 350 mm
Master (outer) case length: 240 mm
Master (outer) case height: 560 mm
Master (outer) case gross weight: 6.6 kg
Products per master (outer) case: 16 pc(s)
