LevelOne IFP-0801 network switch

LevelOne 8-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 126W, -40°C to 75°C. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

The LevelOne IFP-0801 is 10/100M industrial 8 port high power POE switch is equipped with 4 port 30Watts PSE. It is designed for 48-56VDC input sources, especially for IP surveillance, traffic monitoring and for a broad range of applications. It can be used as a stand-alone device for buses, trucks, and other vehicles for Surveillance purposes. It is being rigorously tested for your Security, Transportation and Telco application.

- PoE ports can support the IEEE 802.3at standard and power up 30W devices
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 40°C to 75°C operating temperature range
- Provides DIN-rail, wall or desktop mounting
- IP30 metal case

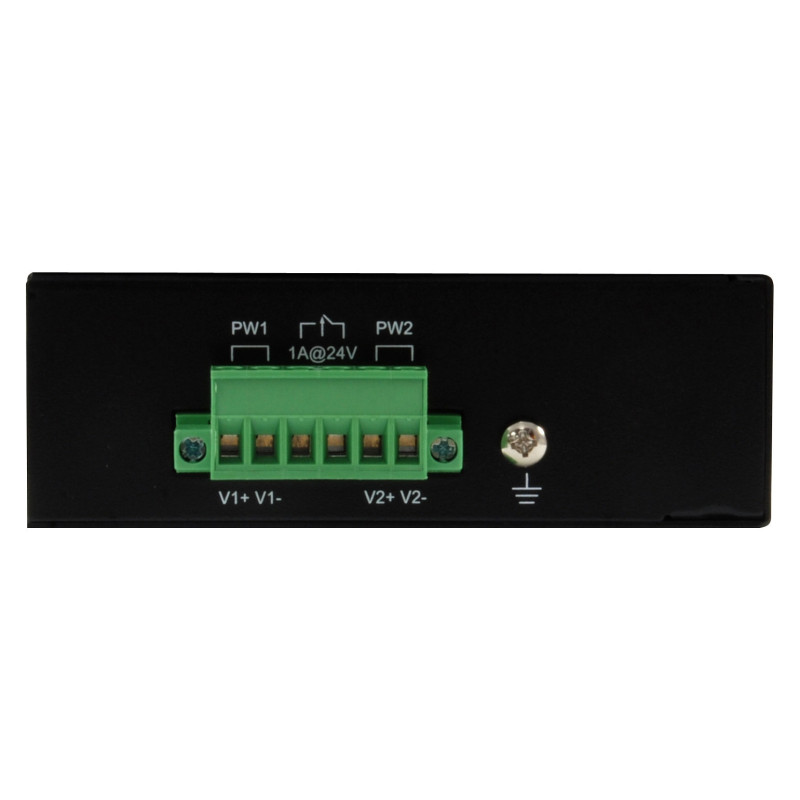

- Redundant power inputs with Terminal Block and DC Jack

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 1.6 Gbit/s
MAC address table: 1000 entries
Feature: Store-and-forward
Packet buffer memory: 1 MB

Design

Product colour: Black
LED indicators: Link, Power, Status
Feature: Wall mountable
Feature: DIN rail mounting
Safety: IEC EN60950-1

Performance

Feature: Plug and Play
Mean time between failures (MTBF): 510304 h

Power

Feature: Redundant power supply (RPS) support
Power consumption (typical): 5.76 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) voltage range: 44 - 56 V
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 126 W

Other features

Feature: Terminal block port

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 105 mm
Depth: 36.2 mm
Height: 142 mm
Weight: 525 g

Packaging content

Feature: Manual

Packaging data

Feature: Wall mounting kit
Feature: Terminal block included
Package type: Box
Feature: DIN rail included
Package width: 165 mm
Package depth: 65 mm
Package height: 215 mm
Package weight: 730 g

Certificates

Certification: EMI: FCC Part 15 Subpart B Class ACE EN 55022 Class AEMC: EN55022, EN55024EN50155/EN60068-2-6EN50155/EN60068-2-27EN50155/EN60068-2-32

Logistics data

Country of origin: Taiwan
Master (outer) case width: 350 mm
Master (outer) case length: 240 mm
Master (outer) case height: 570 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 12.6 kg
Products per master (outer) case: 16 pc(s)
