LevelOne IEC-4301 network media converter

LevelOne RJ45 to SC Fast Ethernet Industrial Media Converter, Single-Mode Fiber, 30km, -40°C to 75°C. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 30000 m, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Black, Housing material: Aluminium. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 12 - 60 V, Power consumption (typical): 1.44 W

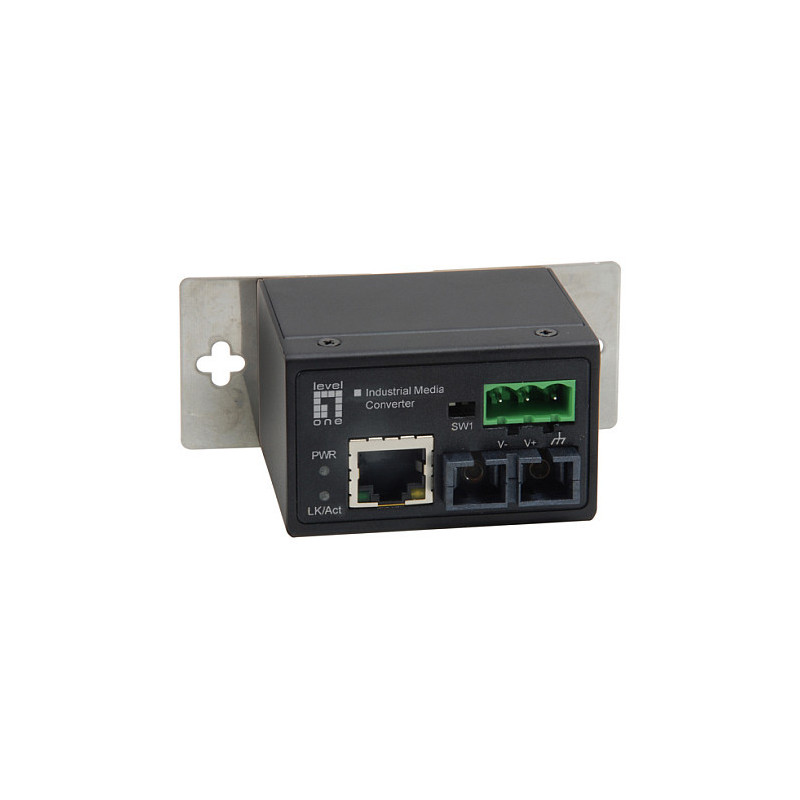

LevelOne IEC-4301 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.

- 10/100BaseT to 100Base-FX
- Rugged aluminium case design in a mini size form factor
- 18V-36VAC & 12V-60VDC with polarity protection
- Link Fault Pass through (LFP) function
- Supports switch and pure converter mode
- Surge & ESD protection
- Maximum noise & interference immunity
- 40°C to 75°C (-40°F to 167°F) operating temperature range

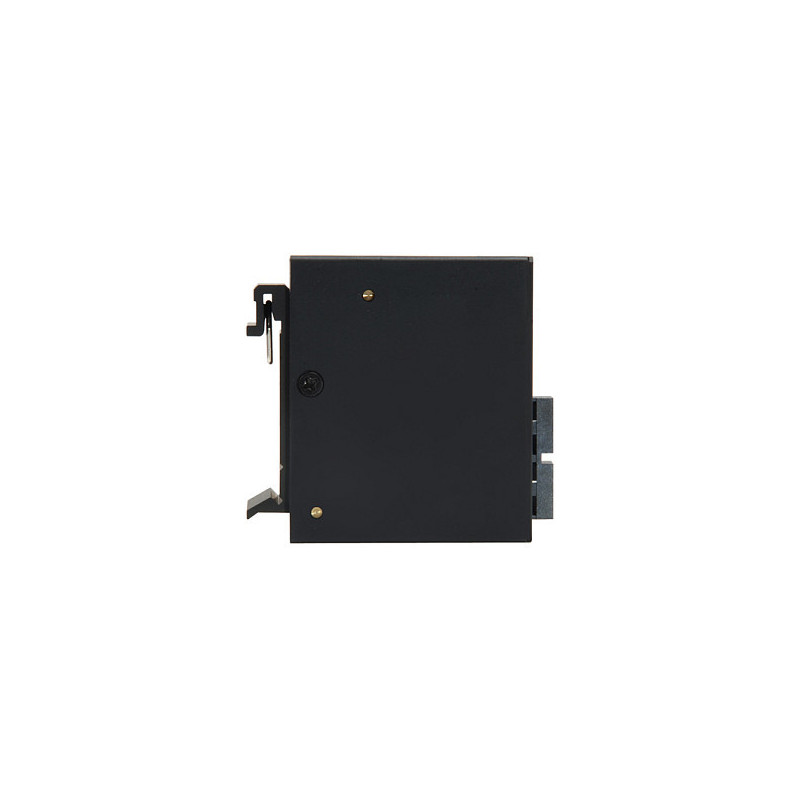

- DIN-Rail or panel mount installation

Network

Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full, Half

Performance

Maximum transfer distance: 30000 m
Fiber mode structure: Single-mode

Features

LED indicators: Activity, Link, Power
Product colour: Black
Housing material: Aluminium

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Input voltage: 12 - 60 V
Power consumption (typical): 1.44 W

Weight & dimensions

Width: 59 mm
Depth: 49 mm
Height: 36 mm
Weight: 90 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Packaging content

Feature: Quick installation guide

Packaging data

Package width: 160 mm
Package depth: 105 mm
Package height: 65 mm
Package weight: 260 g
Package type: Box

Certificates

Compliance certificates: RoHS

Logistics data

Country of origin: Taiwan
Harmonized System (HS) code: 85176990
