LevelOne GVT-2011 network media converter

LevelOne RJ45 to SFP Gigabit Media Converter Switch, 2 x SFP, 1 x RJ45. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-X. Mean time between failures (MTBF): 30000 h. LED indicators: Activity, Link, Power, Product colour: Grey. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 110 - 240 V, Output voltage: 5 V, Output current: 2 A

The LevelOne GVT-2011 Gigabit Media Converter Switch provides 1 RJ45 and 2 SFP ports to support conversion between 10/100/1000Base-T and 1000Base-X networks. With the two SFP ports, the converter switch provides high reliability and flexibility to extend the media transmission distance up to 550m, 20km, or longer depending on the SFP fiber optical transceivers. It allows the two types of segment to connect easily, efficiently and inexpensively.

The GVT-2011 works in high performance Store and Forward mechanism, and prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) functions. As the GVT-2011 Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-X, the Gigabit media converter installation is quite quick and easy by simply plug and play.

- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- SFP slot supports pluggable Gigabit optic modules that enabling you to choose from a variety of transceiver
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Supports low-time lag transmission
- 10°C to 55°C operating temperature range

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Converter output interface: 1000Base-X
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: VLAN support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full, Half

Performance

Mean time between failures (MTBF): 30000 h

Features

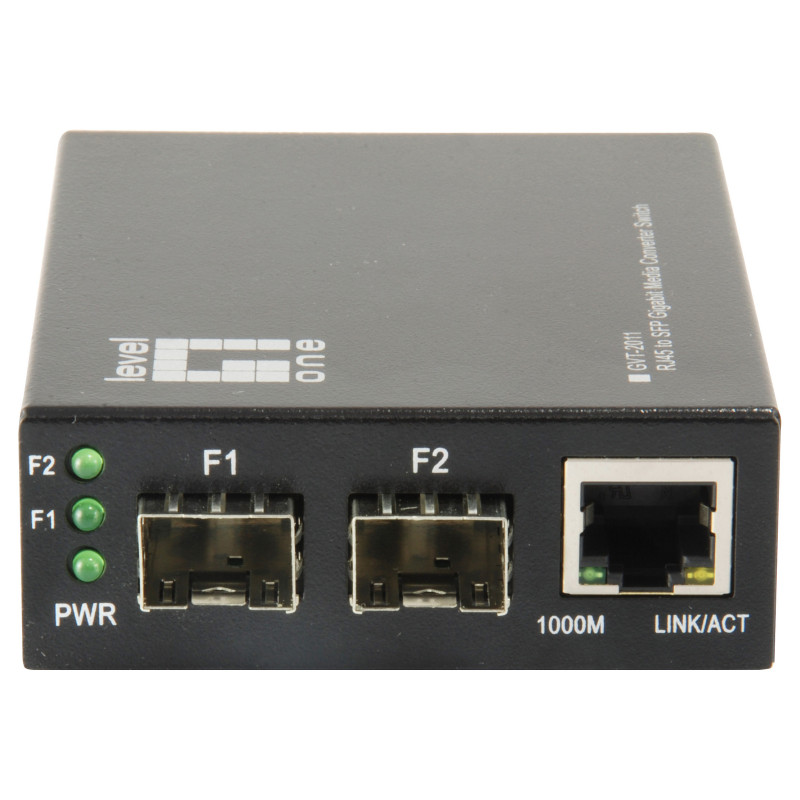

LED indicators: Activity, Link, Power
Product colour: Grey

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 2
Fiber optic connector: SFP
Feature: DC-in jack

Power

Input voltage: 110 - 240 V
Output voltage: 5 V
Output current: 2 A
Power consumption (max): 5 W

Weight & dimensions

Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 300 g

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 120 mm
Package depth: 235 mm
Package height: 55 mm
Package weight: 380 g
Package type: Box

Certificates

Certification: FCC, CE

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
Master (outer) case width: 360 mm
Master (outer) case length: 480 mm
Master (outer) case height: 390 mm
Master (outer) case gross weight: 1.2 kg
Products per master (outer) case: 36 pc(s)
