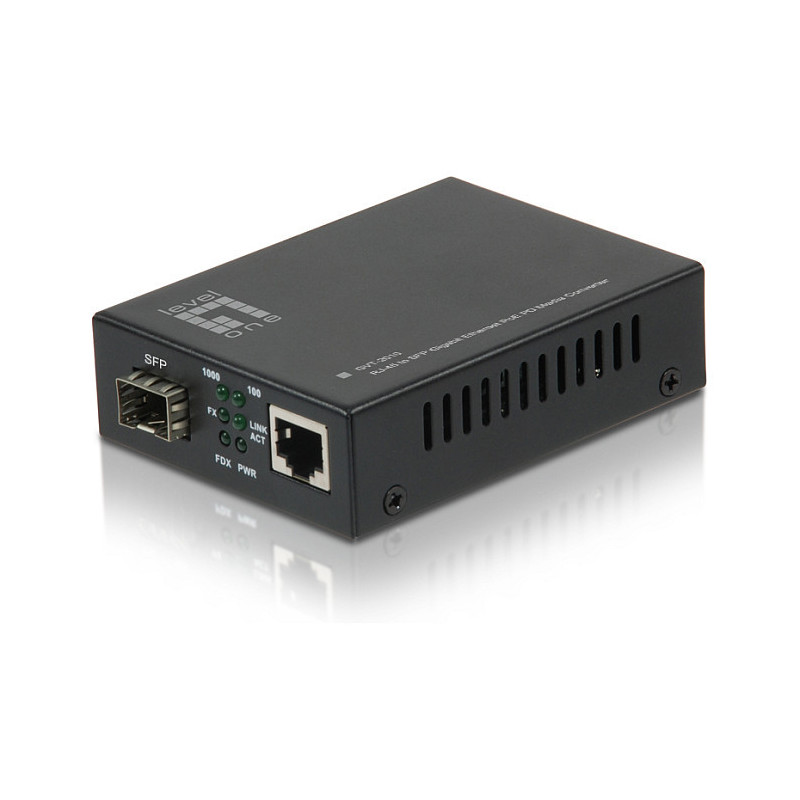

LevelOne GVT-2010 network media converter

LevelOne RJ45 to SFP Gigabit Media Converter, PoE PD. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T. Mean time between failures (MTBF): 30000 h. LED indicators: Activity, FDX, Link, Power, Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 90 - 264 V, Output voltage: 5 V, Output current: 2 A

GVT-2010 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 100 km via fiber optical cable.

GVT-2010 supports 802.3at/af POE-PD function. It can draw the power via UTP cable connect to a POE-PSE switch or mid-span injector. This function makes the GVT-2010 ideal for remote areas of a network without power outlests

Key Features
- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- SFP slot supports pluggable Gigabit optic modules that enabling you to choose from a variety of transceiver
- 9K jumbo frames to increase data transfer rates
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- 10°C to 55°C operating temperature range
- IEEE 802.3af/at PoE compliant to simplify deployment and installation

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T
Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: VLAN support
Feature: Auto MDI/MDI-X
Feature: Store-and-forward
Duplex system: Full, Half

Performance

Mean time between failures (MTBF): 30000 h

Features

Feature: Web-based management
LED indicators: Activity, FDX, Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP
Power over Ethernet plus (PoE+) ports quantity: 1

Power

Input voltage: 90 - 264 V
Output voltage: 5 V
Output current: 2 A

Weight & dimensions

Width: 94 mm
Depth: 71 mm
Height: 26 mm
Weight: 220 g

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

Feature: Manual

Packaging data

Package width: 120 mm
Package depth: 55 mm
Package height: 235 mm
Package weight: 430 g

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
