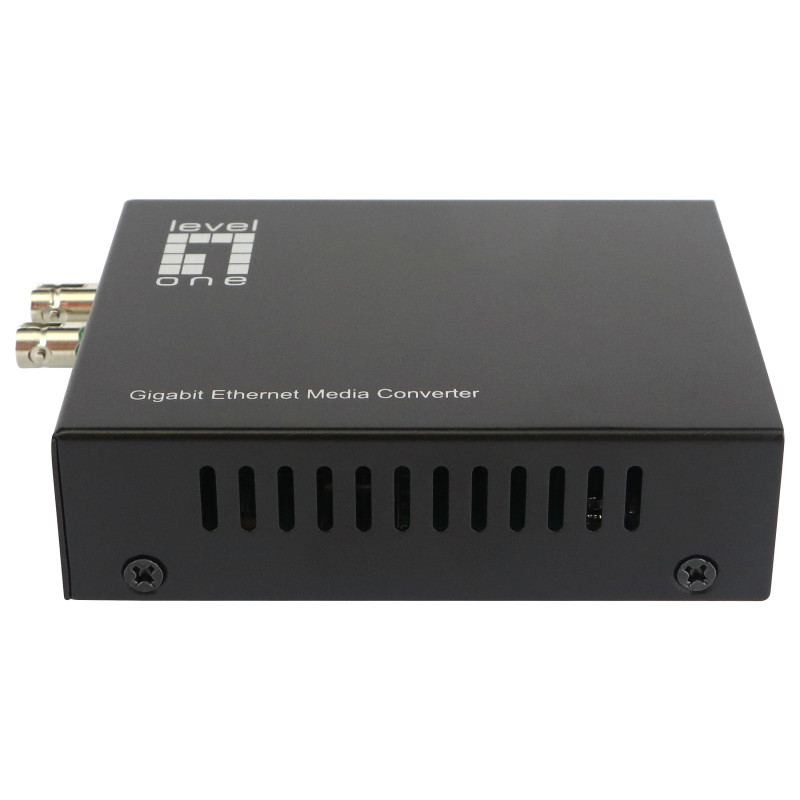

LevelOne GVT-2003 network media converter

LevelOne RJ45 to ST Gigabit Media Converter, Single-Mode Fiber, 1310nm, 20km. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-LX, 1000Base-SX, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Link, Power, Product colour: Black. Fiber optic connector: ST, Connectivity technology: Wired. Power consumption (typical): 5 W

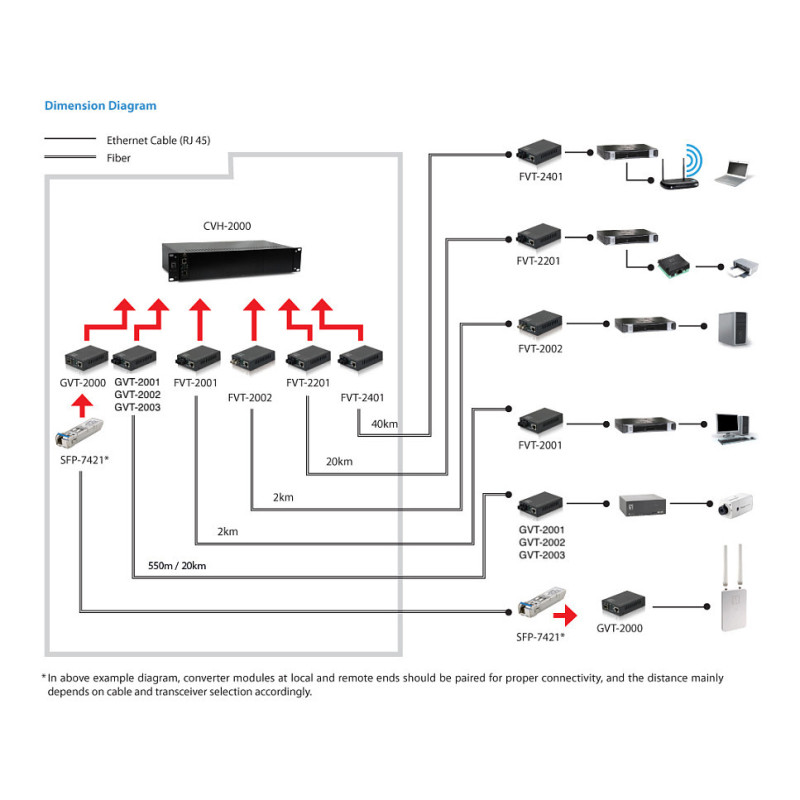

The GVT-2003 SMF ST media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km. The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode. The GVT-2003 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19" converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Duplex system: Full, Half
Feature: Link Loss Carry Forward (LLCF) supported
Feature: Link Loss Return (LLR) supported
Feature: Link Fault Pass-through (LFP)

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode

Features

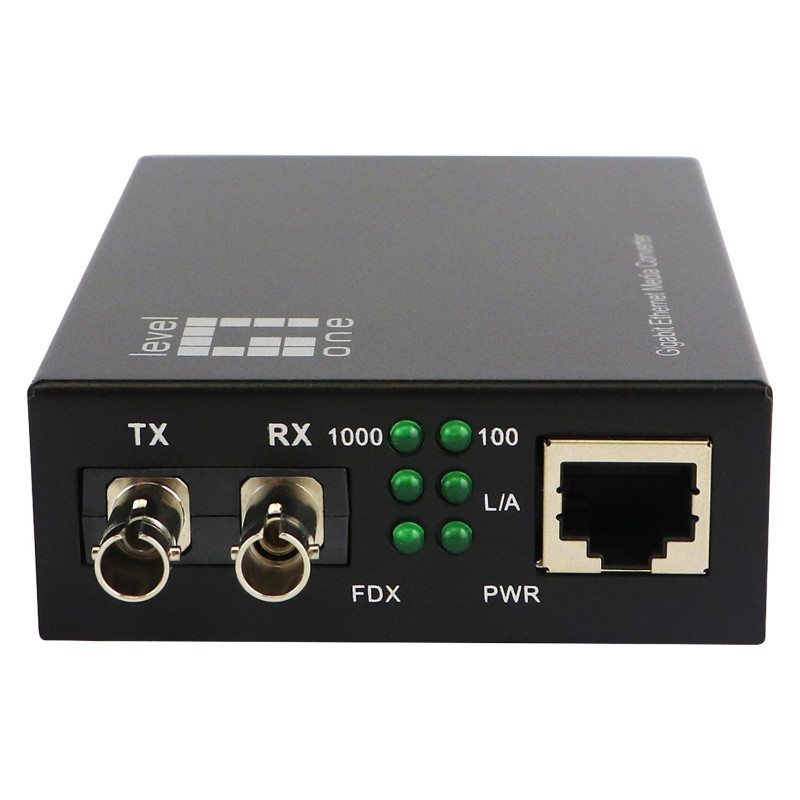

LED indicators: Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber optic connector: ST

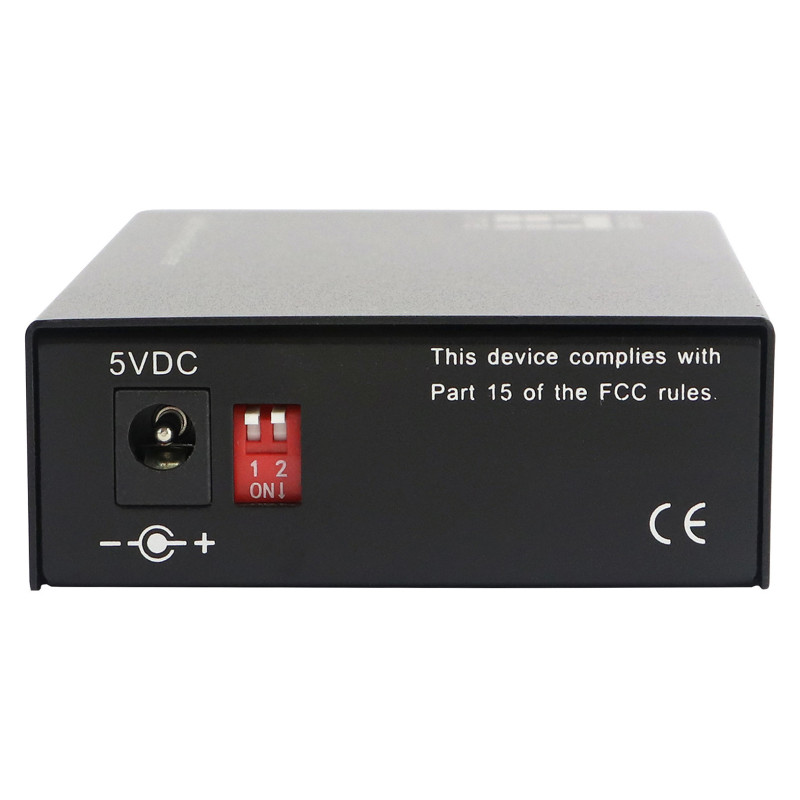

Feature: DC-in jack

Power

Power consumption (typical): 5 W

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 71 mm
Depth: 94 mm
Height: 26 mm
Weight: 200 g

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 90%

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 235 mm
Package depth: 120 mm
Package height: 55 mm
Package weight: 840 g
Package type: Box

Certificates

Compliance certificates: CE

Logistics data

Country of origin: China
Master (outer) cases per pallet (air): 16 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 158.4 cm
Master (outer) case width: 360 mm
Master (outer) case length: 390 mm
Master (outer) case height: 480 mm
Master (outer) case gross weight: 31.2 kg
Products per master (outer) case: 36 pc(s)
