LevelOne GVT-2002 network media converter

LevelOne RJ45 to SC Gigabit Media Converter, Single-Mode Fiber, 20km. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 2 A

The GVT-2002 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km.

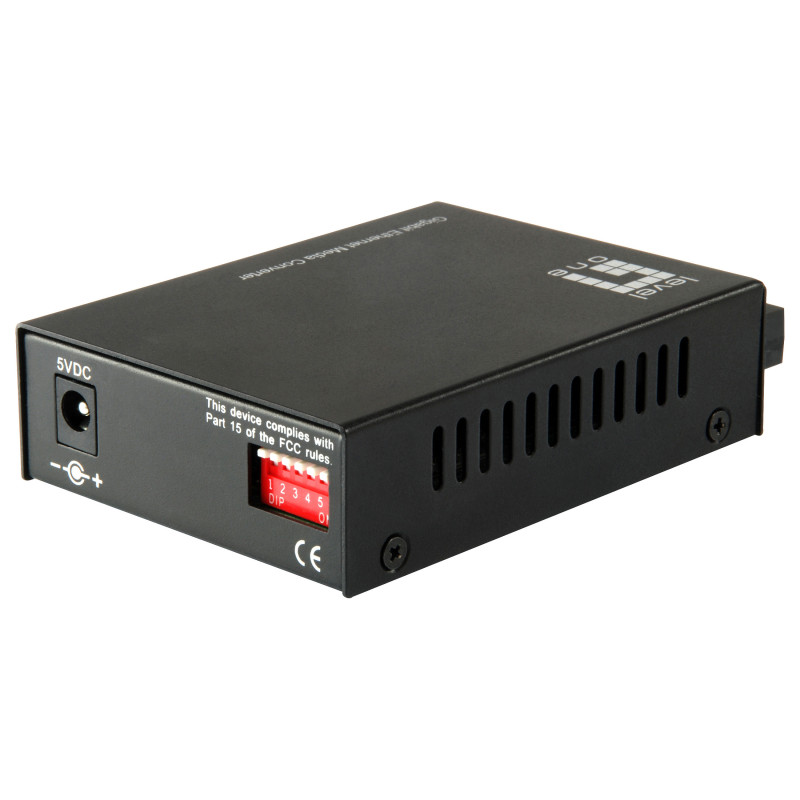

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

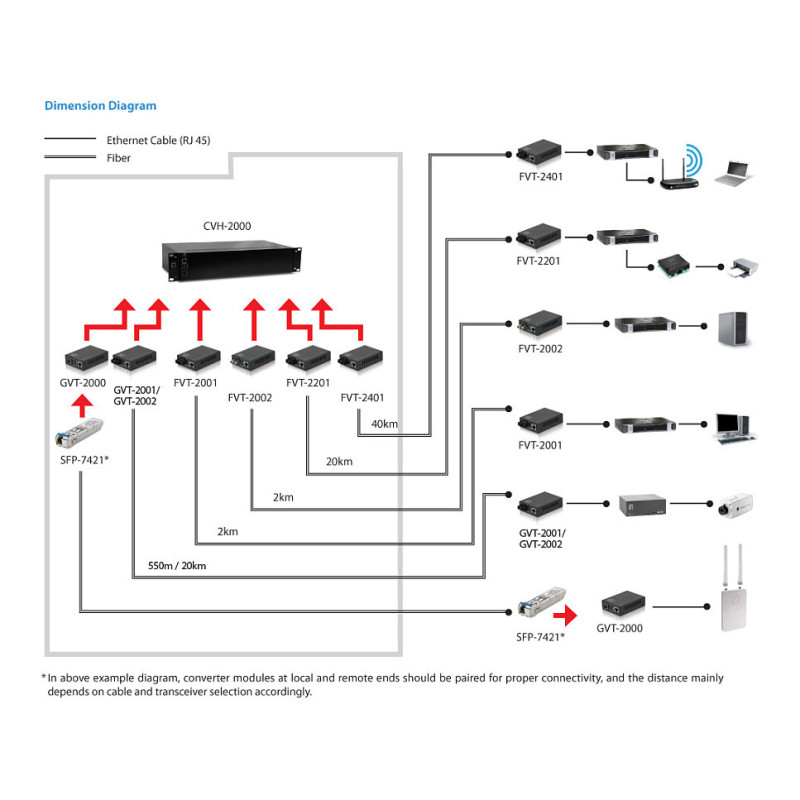

The GVT-2002 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19" converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Converter output interface: 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Duplex system: Full
Feature: Link Loss Carry Forward (LLCF) supported
Feature: Link Loss Return (LLR) supported
Cable types supported: Cat5, Cat5e

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode

Features

LED indicators: Yes
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC
Feature: DC-in jack

Power

Input voltage: 5 V
Input current: 2 A

Weight & dimensions

Width: 94 mm
Depth: 26 mm
Height: 71 mm
Weight: 200 g

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 120 mm
Package depth: 55 mm
Package height: 235 mm
Package weight: 360 g
Package type: Box

Certificates

Certification: CE, FCC

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
Master (outer) case width: 360 mm
Master (outer) case length: 390 mm
Master (outer) case height: 480 mm
Master (outer) case gross weight: 13 kg
Products per master (outer) case: 36 pc(s)
