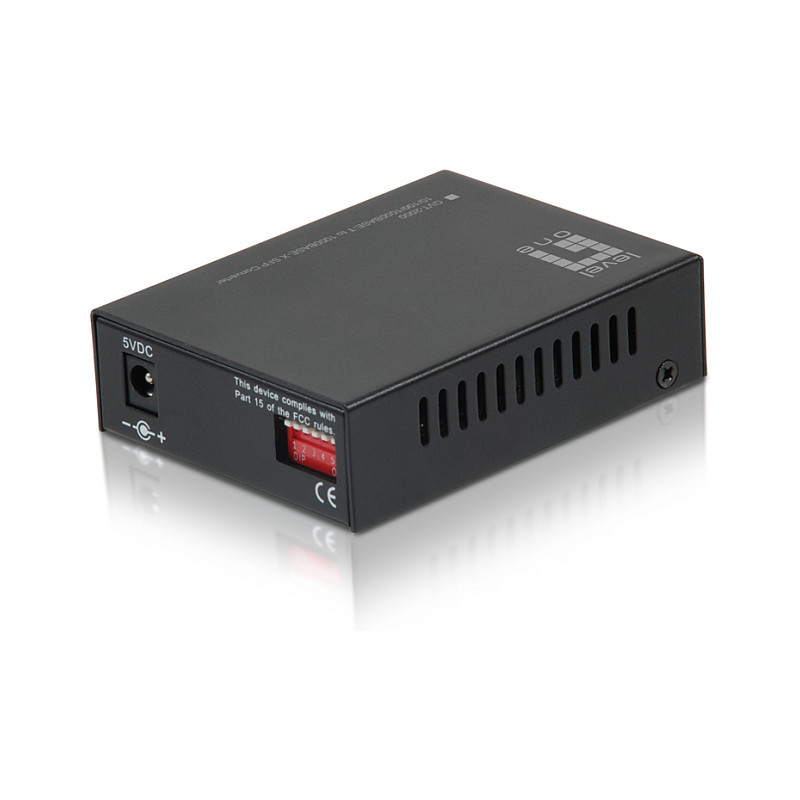

LevelOne GVT-2000 network media converter

LevelOne RJ45 to SFP Gigabit Media Converter. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Input current: 2 A

The GVT-2000 media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a SFP slot for 1000Base-X Gigabit optic module and a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing.

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

The GVT-2000 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19" converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Converter output interface: 1000Base-LX, 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Store-and-forward
Feature: Link Loss Carry Forward (LLCF) supported
Feature: Link Loss Return (LLR) supported
Cable types supported: Cat5, Cat5e

Performance

Maximum transfer distance: 100 m
Fiber mode structure: Multi-mode

Features

LED indicators: Activity, Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP

Power

Input voltage: 5 V
Input current: 2 A

Weight & dimensions

Width: 94 mm
Depth: 70 mm
Height: 25 mm
Weight: 420 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 235 mm
Package depth: 125 mm
Package height: 55 mm
Package weight: 490 g
Package type: Box

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
