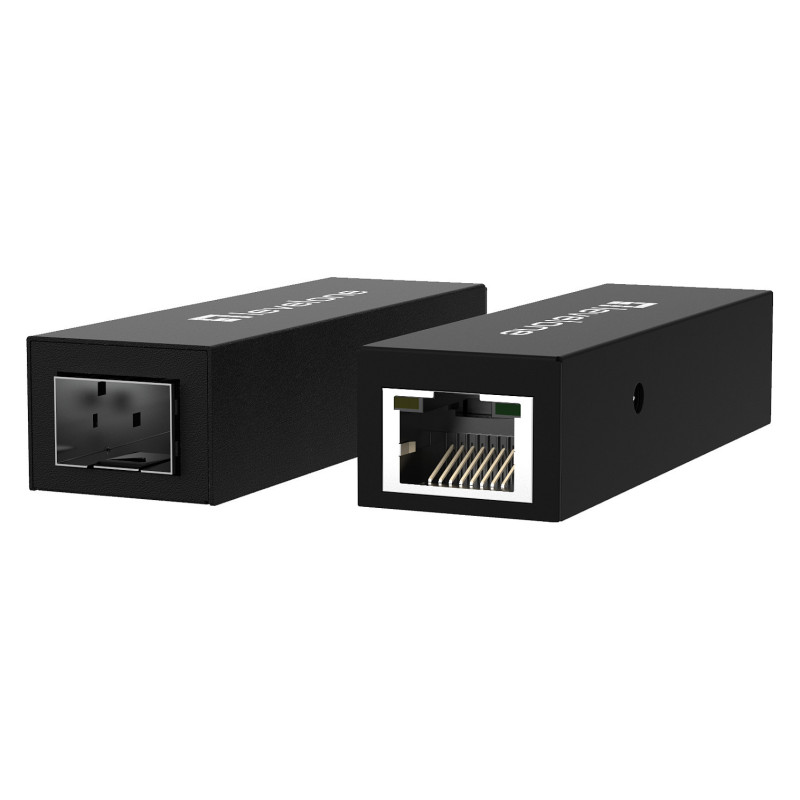

LevelOne GVT-1001 network media converter

LevelOne Ultra-Slim RJ45 to SFP Gigabit Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3z, Ethernet LAN data rates: 1000 Mbit/s. Mean time between failures (MTBF): 100000 h. LED indicators: Activity, Link, Product colour: Yellow. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A, Power consumption (typical): 1.2 W

The GVT-1001 is the ultra-slim plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-slim size and super light weight.

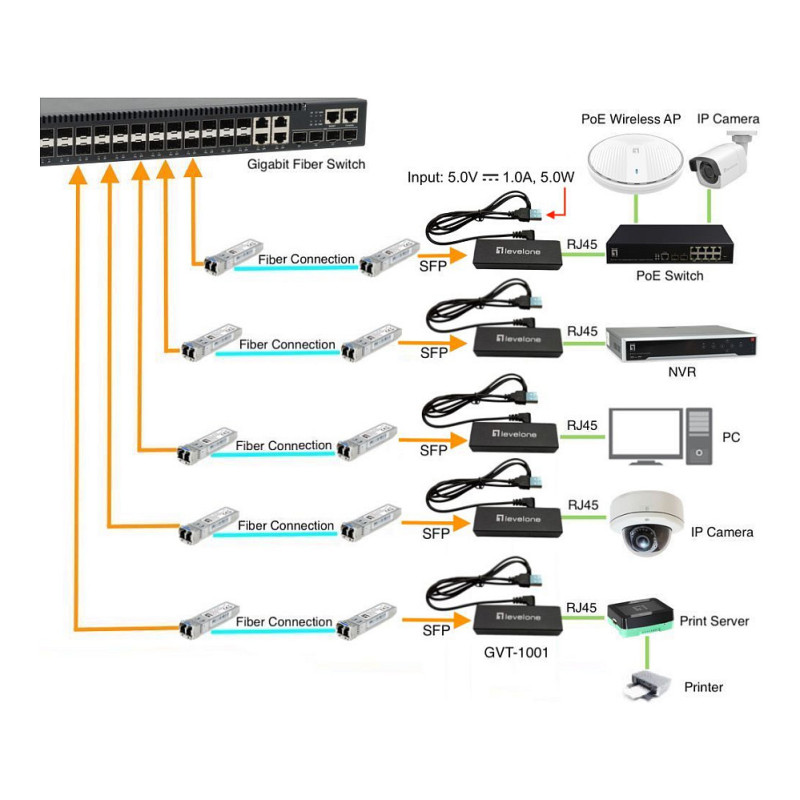

This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn't available. For applications not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3z
Ethernet LAN data rates: 1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Jumbo frames support
Jumbo frames: 10000
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Performance

Mean time between failures (MTBF): 100000 h

Features

Feature: Plug and Play
LED indicators: Activity, Link
Product colour: Yellow

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP

Power

Input voltage: 5 V
Input current: 1 A
Power consumption (typical): 1.2 W

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 23.3 mm
Depth: 79 mm
Height: 18.5 mm
Weight: 56 g

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 135 mm
Package depth: 105 mm
Package height: 45 mm
Package weight: 160 g
Package type: Box

Certificates

Compliance certificates: CE, UKCA, WEEE

Logistics data

Country of origin: China
Master (outer) cases per pallet (air): 15 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 154.4 cm
Harmonized System (HS) code: 85176990
Master (outer) case width: 475 mm
Master (outer) case length: 560 mm
Master (outer) case height: 275 mm
Master (outer) case gross weight: 17 kg
Products per master (outer) case: 100 pc(s)
