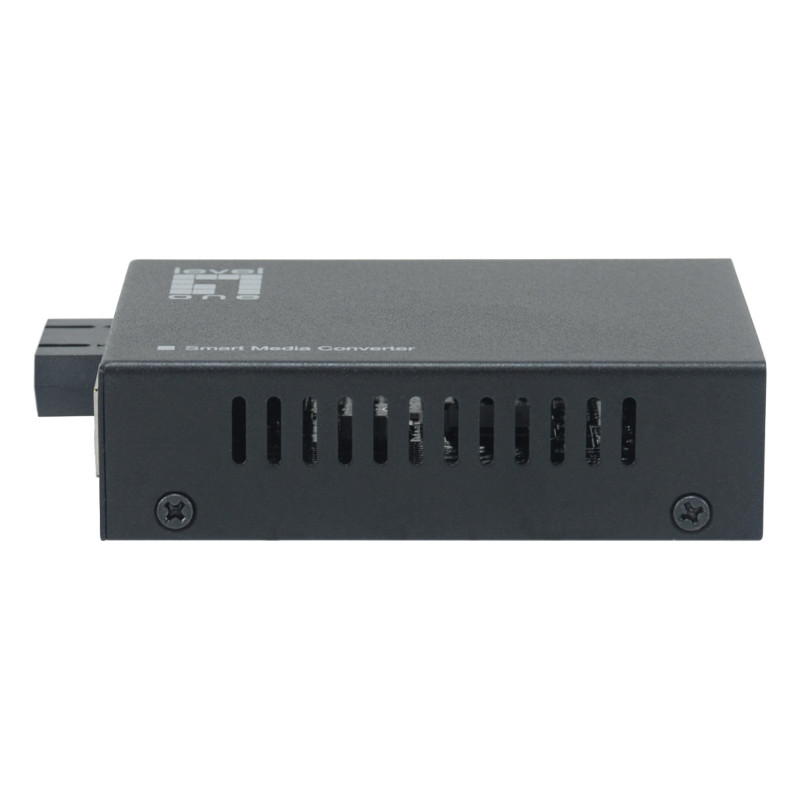

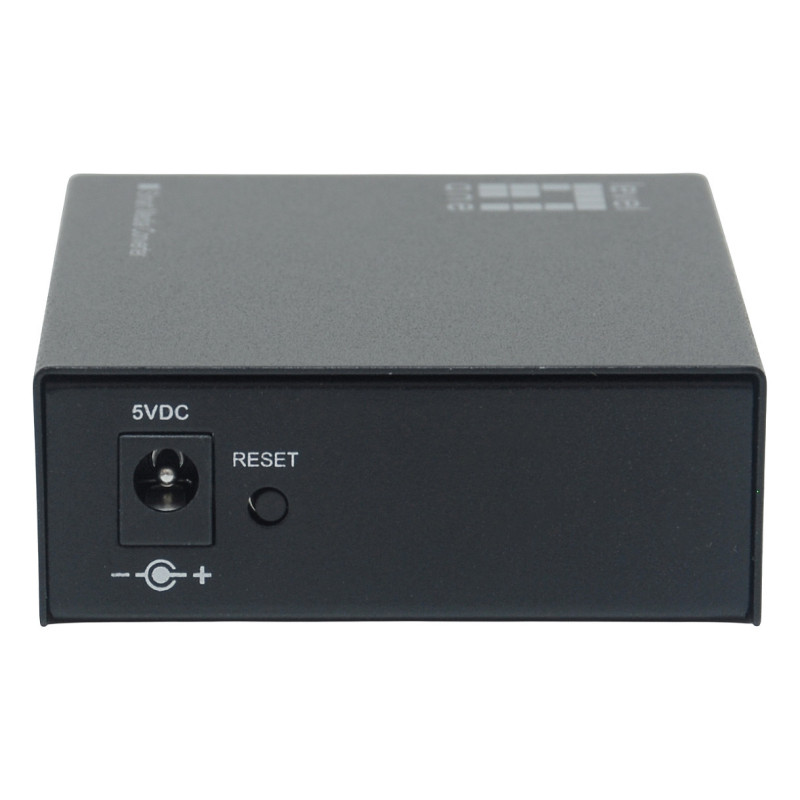

LevelOne GVM-2002 network media converter

LevelOne Smart Gigabit RJ45-SC Media Converter, Single-Mode Fiber, 1310nm, 20km, Compatible with 19-inch rack-mountable chassis. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 2 A, Power consumption (typical): 10 W
The LevelOne GVM-2002 is a Smart Gigabit Media Converter designed to efficiently bridge Ethernet signals between 10/100/1000Base-T and single-mode fiber with an SC connector, supporting transmission distances of up to 20 km. It supports both half- and full-duplex operation, offering flexible deployment options, optimized performance, and a lower total cost of ownership.
Featuring an intuitive web-based management interface, the GVM-2002 allows for easy configuration, monitoring, and maintenance—either locally or via SNMP. Users can conveniently manage key functions such as bandwidth control, duplex mode, port speed, and VLAN configuration. The converter is also compatible with the 19-inch rack-mountable 14-slot Media Converter Chassis (CVH-2000), providing reliable performance, centralized management, and streamlined network operation.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-T, 1000Base-T
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: Flow control support
Feature: VLAN support
Feature: Auto-negotiation
Duplex system: Full, Half
Feature: Quality of Service (QoS) support

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Mean time between failures (MTBF): 400000 h

Features

Feature: Web-based management
LED indicators: Activity, Link, Power
Product colour: Black

Ports interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Output voltage: 5 V
Output current: 2 A
Power consumption (typical): 10 W

Weight dimensions

Width: 94 mm
Depth: 71 mm
Height: 26 mm
Weight: 177 g

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 90%

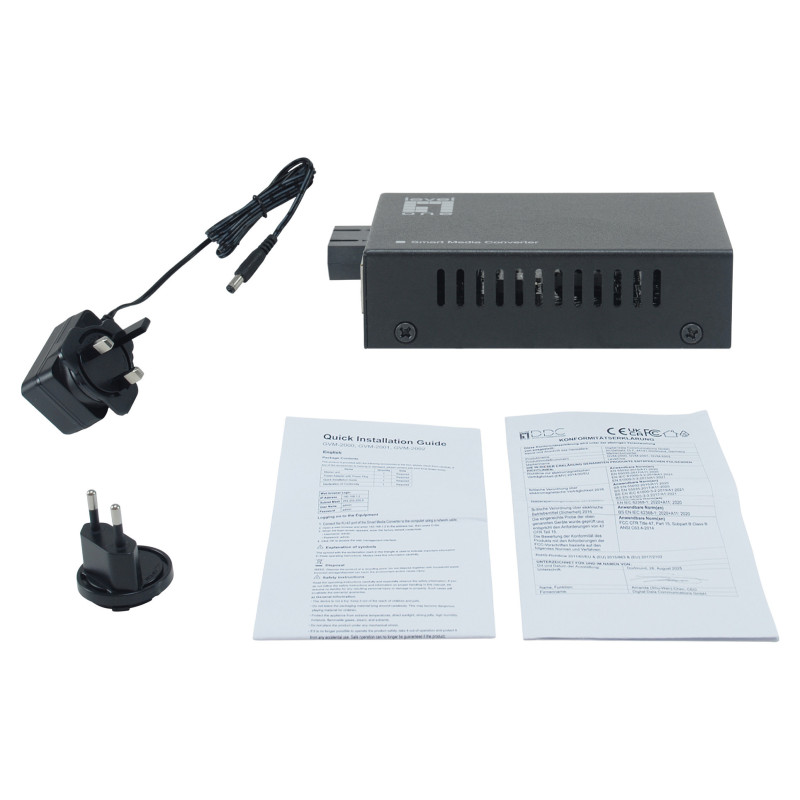

Packaging content

Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 118 mm
Package depth: 78 mm
Package height: 86 mm
Package weight: 350 g
Package type: Box

Logistics data

Country of origin: China
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 154.5 cm
Customs product code (TARIC): 8517620000
Master (outer) case width: 500 mm
Master (outer) case length: 250 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 13.2 kg
Products per master (outer) case: 36 pc(s)
