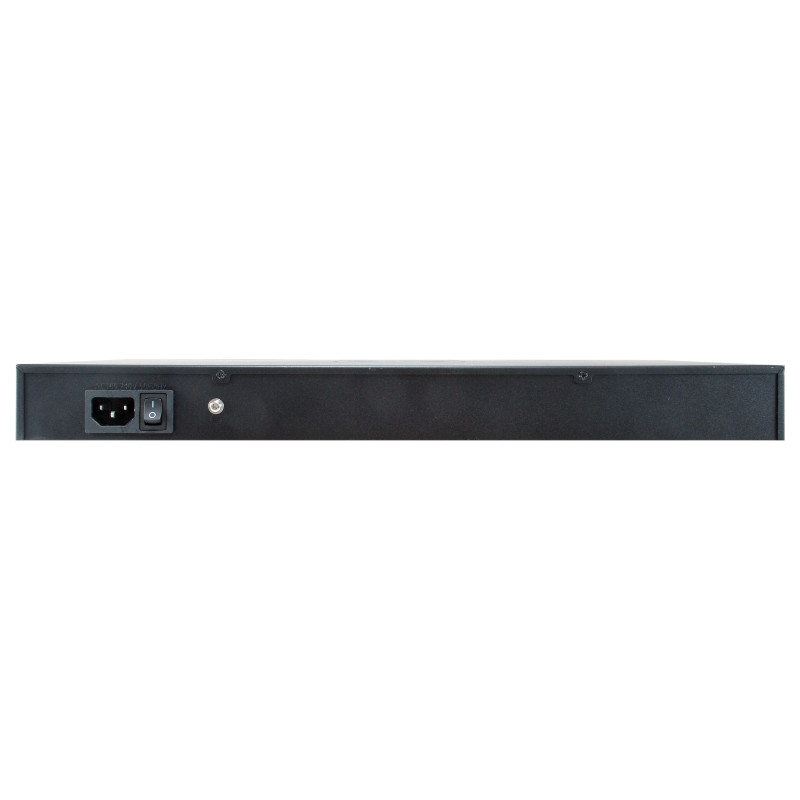

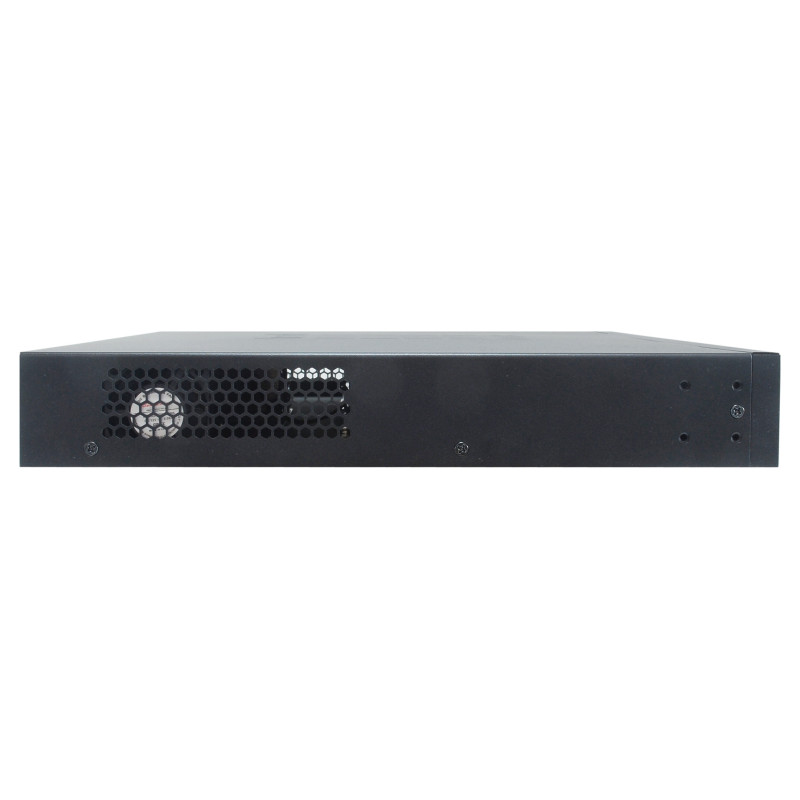

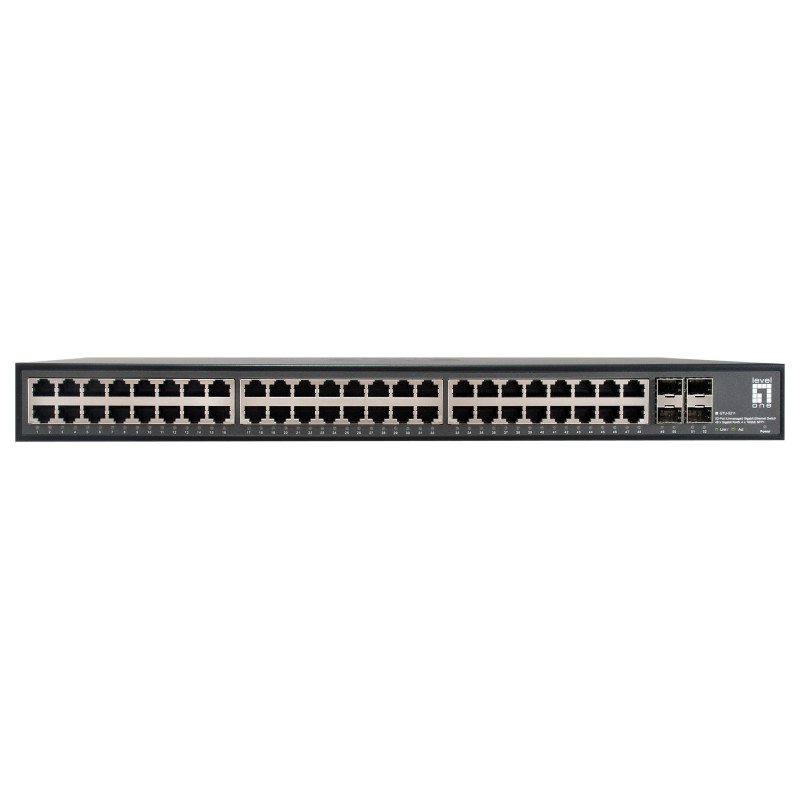

LevelOne GTU-5211 network switch

LevelOne GTU-5211. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP+ modules quantity: 4. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: AC-in jack. Rack mounting

Gigabit Speeds: Take Your Data to the Next Level

The GTU-5211 is a 52-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 176Gbps and bring Gigabit speeds all the way to your computers.

Bandwidth hungry? Not a problem.

What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GTU-5211 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Plug and Play, Flexible and Easy

The GTU-5211 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
Installed SFP+ modules quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 176 Gbit/s
MAC address table: 32000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 16 MB

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Activity, Link, Power

Performance

Internal memory: 256 MB
Flash memory: 16 MB
Noise level: 30 dB

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 48 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 163.8 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 290 mm
Height: 44.5 mm
Weight: 3.39 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 515 mm
Package depth: 380 mm
Package height: 93 mm
Package weight: 4 kg

Certificates

Certification: CE, UKCA, FCC Part 15, Subpart B Class B, RoHS
