LevelOne GTP-5271 network switch

LevelOne 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x 10GbE SFP+, 48 PoE Outputs, 400W PoE Power Budget. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

The GTP-5271 is LevelOne latest generation of 52-Port L3 Lite Managed Gigabit PoE Switch, with 4 10G SFP+ port connectivity. offers powerful L2 and L3 Lite features, better PoE functionality with 400W PoE power budget and usability, The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

The GTP-5271 PoE-enabled switches features an IEEE 802.3af/at certified. are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The GTP-5271 48-port PoE Switch supports up to 30 W of power output giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48

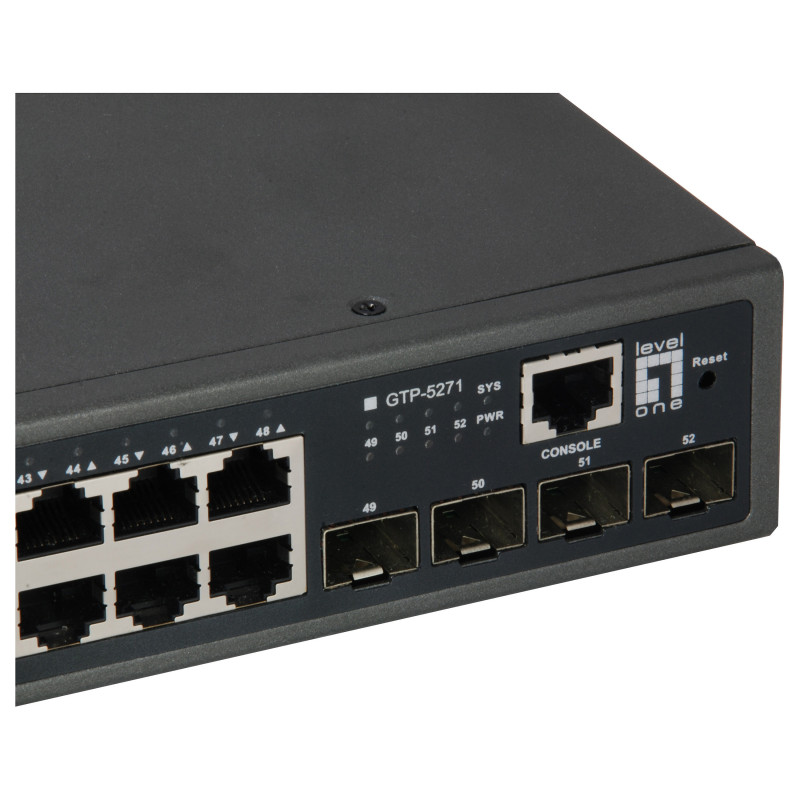

SFP+ module slots quantity: 4
Console port: RJ-45

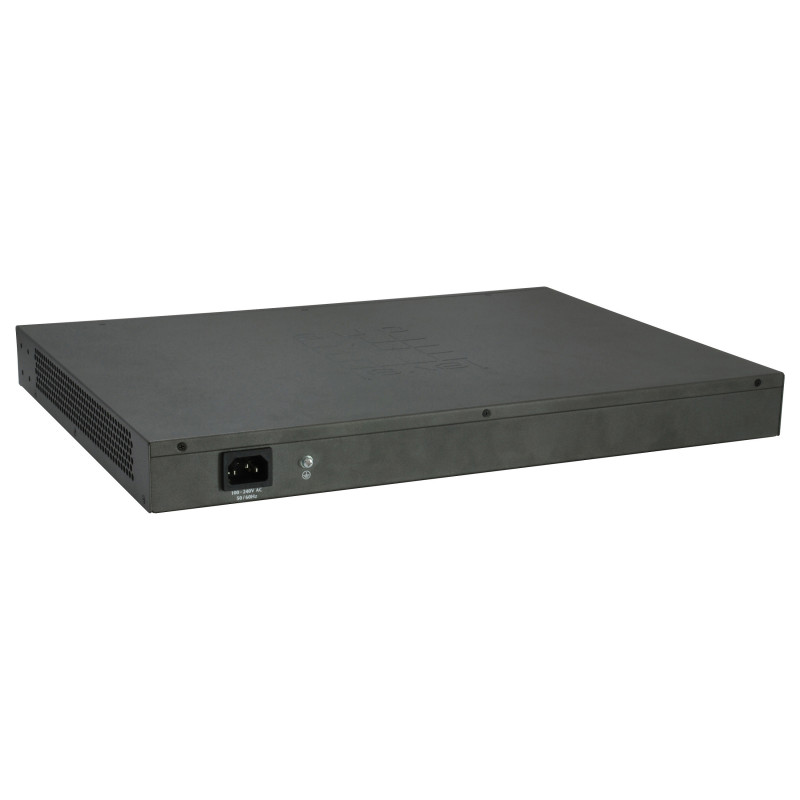

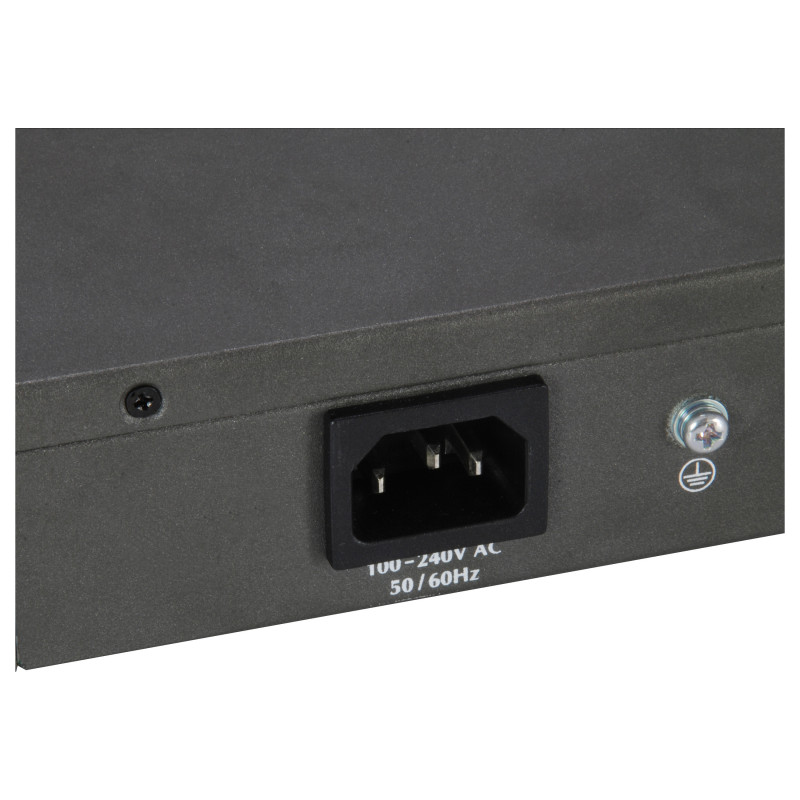

Power connector: AC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Network virtualization technologies: Q-in-Q tunneling
QinQ implementation: Selective QinQ
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Number of VLANs: 4096

Data transmission

Forwarding rate: 130.944 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 512 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IGMP proxy
Security algorithms: SNMPv3
Feature: SSH/SSL support
Authentication: Guest VLAN, Web-based authentication
Feature: Password protection
Feature: DoS attack prevention
Authentication type: RADIUS
Queue scheduling algorithms: Priority queuing (PQ), Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: v1/v2

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features: IPv6 Telnet

Design

Feature: Rack mounting
Product colour: Grey
Housing material: Metal
Feature: Reset button
LED indicators: Link, PoE, Power

Performance

Internal memory: 32 MB
Feature: Firmware upgradeable
Feature: Telnet

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 6 A
Power consumption (max): 473.7 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 48
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 400 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44.5 mm
Weight: 4.52 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Feature: Rubber feet
Package width: 596 mm
Package depth: 390 mm
Package height: 80 mm
Package weight: 6 kg

Certificates

Compliance certificates: RoHS
Certification: CE

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
