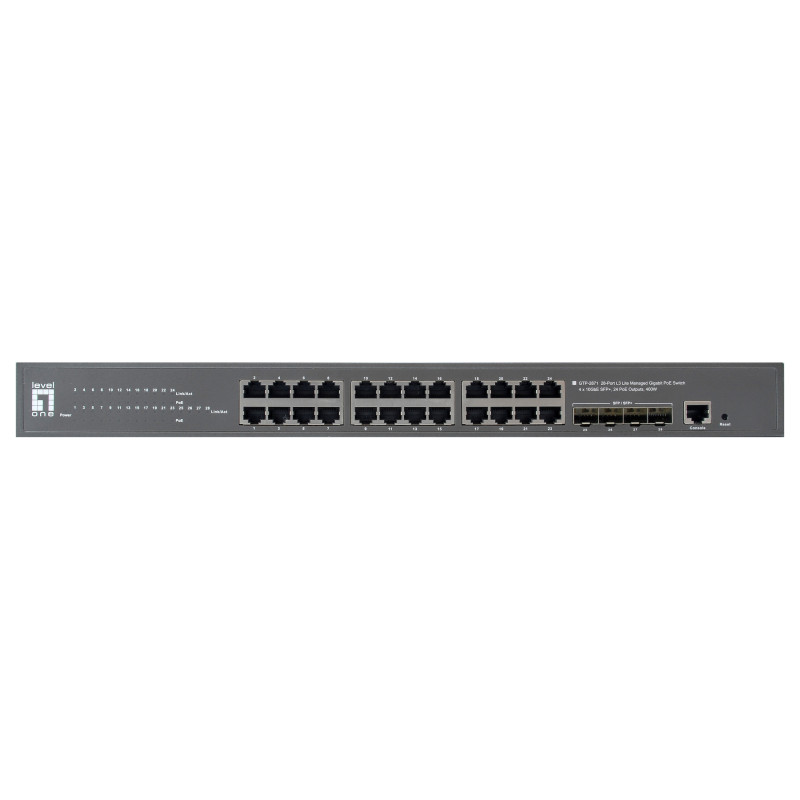

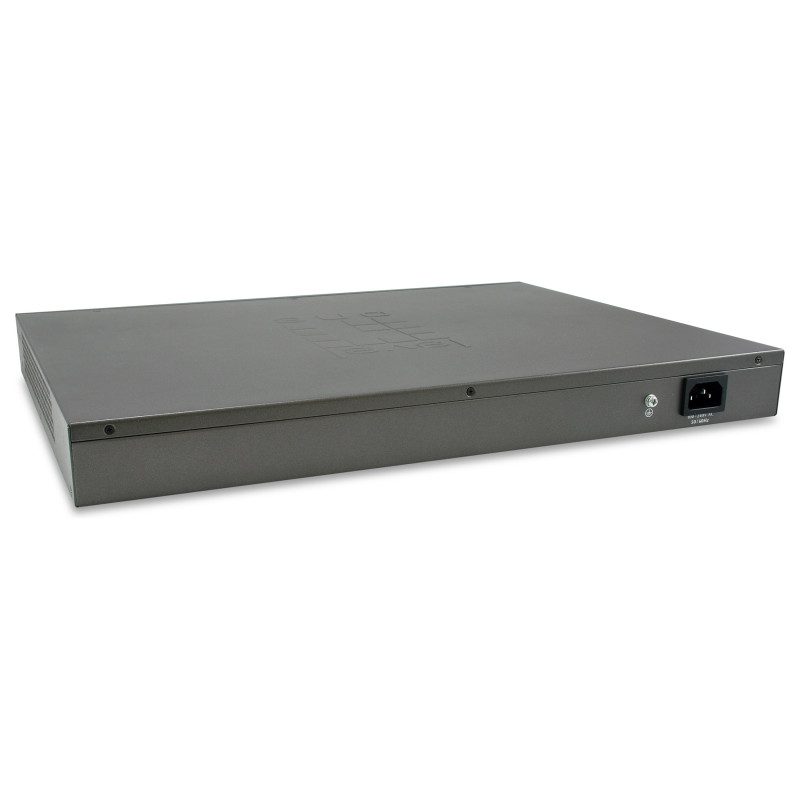

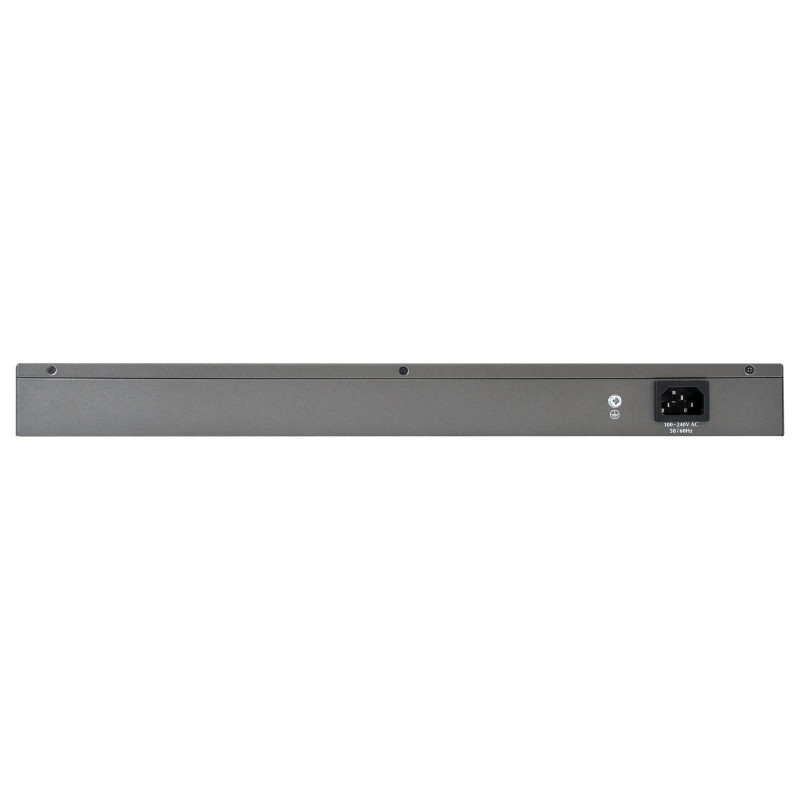

LevelOne GTP-2871 network switch

LevelOne GTP-2871. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

The GTP-2871 is LevelOne latest generation of 28-Port L3 Lite Managed Gigabit PoE Switch, with 4 10G SFP+ port connectivity. offers powerful L2 and L3 Lite features, better PoE functionality with 400W PoE power budget and usability, The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.

The GTP-2871 PoE-enabled switches features an IEEE 802.3af/at certified. are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The GTP-2871 24-port PoE Switch supports up to 30 W of power output giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 4
Fiber ports quantity: 4
Fiber optic connector: SFP+
Power connector: AC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.232 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Static route
Maximum data transfer rate: 10 Gbit/s
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IGMP proxy
Authentication: MAC-based authentication
Authentication type: RADIUS
Queue scheduling algorithms: Priority queuing (PQ), Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Grey
Housing material: Metal
Feature: Reset button
LED indicators: Yes

Performance

Virtual stacking (units): 4
Internal memory: 512 MB
Flash memory: 32 MB
Feature: Firmware upgradeable
Feature: Plug and Play
Mean time between failures (MTBF): 150000 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 6 A
Power consumption (typical): 468.2 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 400 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 330 mm
Depth: 440 mm
Height: 44.5 mm
Weight: 4.48 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Feature: Rubber feet
Feature: Resource CD
Package width: 390 mm
Package depth: 596 mm
Package height: 80 mm
Package weight: 6 kg

Certificates

Compliance certificates: RoHS
Certification: CE

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
