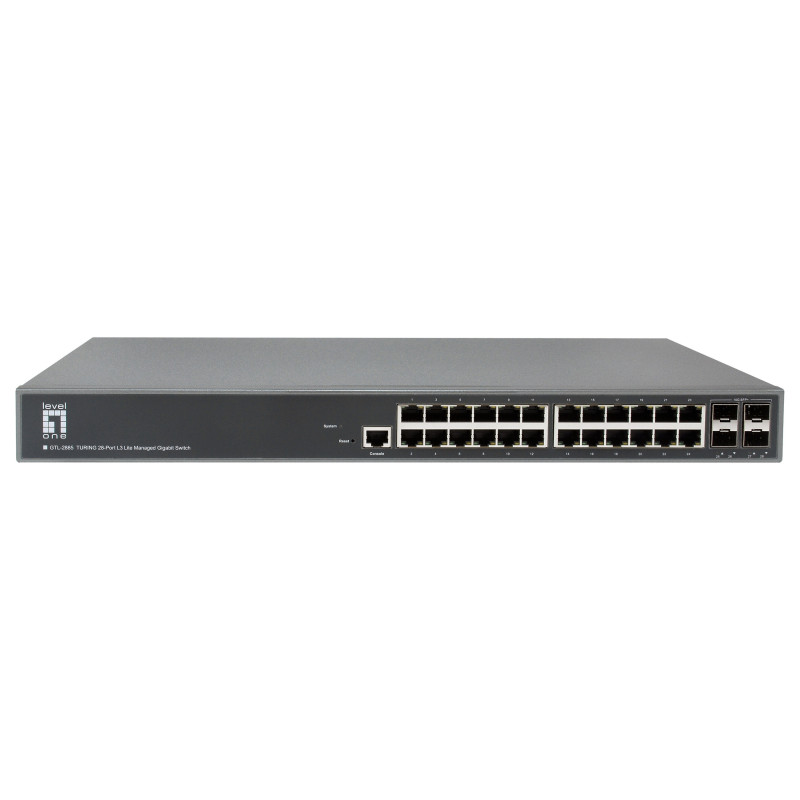

LevelOne GTL-2885 network switch

LevelOne TURING 28-Port L3 Lite Managed Gigabit Switch, 24 x 1G RJ45, 4 x 1G/10G SFP+ Uplinks. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1v, IEEE 802.3ad, IEEE.... Power connector: AC-in jack. Rack mounting

The LevelOne GTL-2885 TURING is a 28-port L3 Lite managed Gigabit switch for enterprise and campus networks, featuring 24 Gigabit RJ45 ports and four 1G/10G SFP+ uplinks for flexible access and aggregation. Built-in IPv4/IPv6 static routing, a DHCP server, and ERPS (G.8032) ensure efficient traffic forwarding and high availability.

The integrated Device Management System (DMS) enables centralized control and monitoring of connected devices—including WLAN access points and IP surveillance—while providing automatic device discovery, security event detection, and cable diagnostics. All management functions are accessible via a standard web browser on PC, tablet, or smartphone.

Management features

Switch type: Managed
Switch layer: L3
Feature: Web-based management
Feature: Traffic classification
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 4
Console port: RJ-45
Power connector: AC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet-based VLAN
Number of VLANs: 4096

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.238 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000

Security

DHCP features: DHCP server, DHCPv6 server, DHCP relay, DHCP Option 82, DHCP client, DHCPv6 client, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication: Guest VLAN
Authentication type: RADIUS, TACACS+

Multicast features

Feature: Multicast support
Multicast MAC address table: 1024 entries
Multicast Listener Discovery (MLD) snooping: Y

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)
Feature: IP Source Guard (IPSG)

Design

Feature: Rack mounting
Product colour: Grey

Performance

Feature: Firmware upgradeable
Feature: Plug and Play
Feature: sFlow

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 30 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 442 mm
Depth: 211 mm
Height: 44 mm
Weight: 2.67 kg

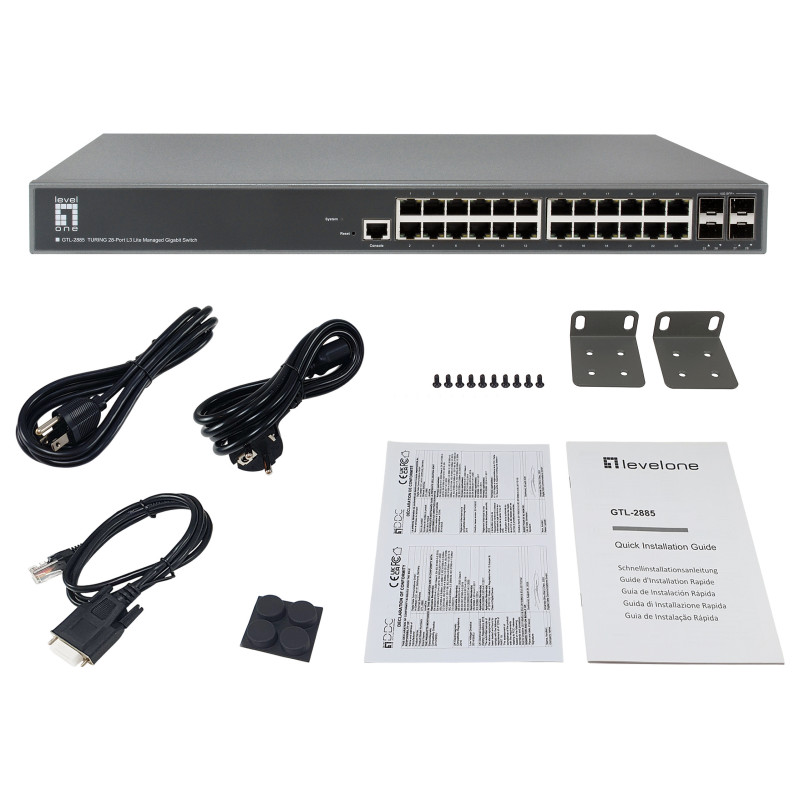

Packaging content

Cables included: AC, LAN (RJ-45) to DB9
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Feature: Rubber feet
Package width: 520 mm
Package depth: 300 mm
Package height: 90 mm
Package weight: 3.8 kg

Technical details

Master (outer) cases per pallet (air): 14 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 177.5 cm

Certificates

Compliance certificates: Low Voltage Directive (LVD), CE, UKCA, RoHS

Logistics data

Customs product code (TARIC): 8517620000
Country of origin: Taiwan
Master (outer) case width: 540 mm
Master (outer) case length: 492 mm
Master (outer) case height: 326 mm
Master (outer) case gross weight: 20 kg
Products per master (outer) case: 5 pc(s)
