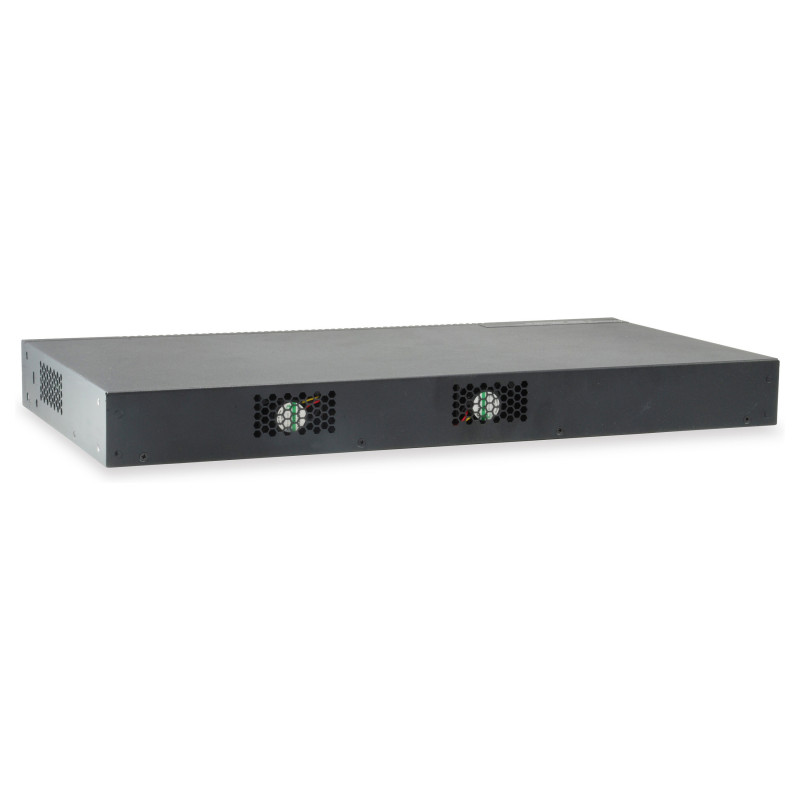

LevelOne GTL-2872 network switch

LevelOne KILBY 28-Port L3 Lite Managed Gigabit Fiber Switch, 4 x 10GbE SFP+, 4 x Gigabit SFP/RJ45 Combo. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah,.... Rack mounting

The GTL-2872 switch is a Gigabit Ethernet access switch with four 10G uplink ports. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services with up to Gigabit bandwidth. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The GTL-2872 switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services from home to business users by providing a more reliable and resilient network (ITU-T G.8032 ERPS), L2 VPNs, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
Combo SFP ports quantity: 4

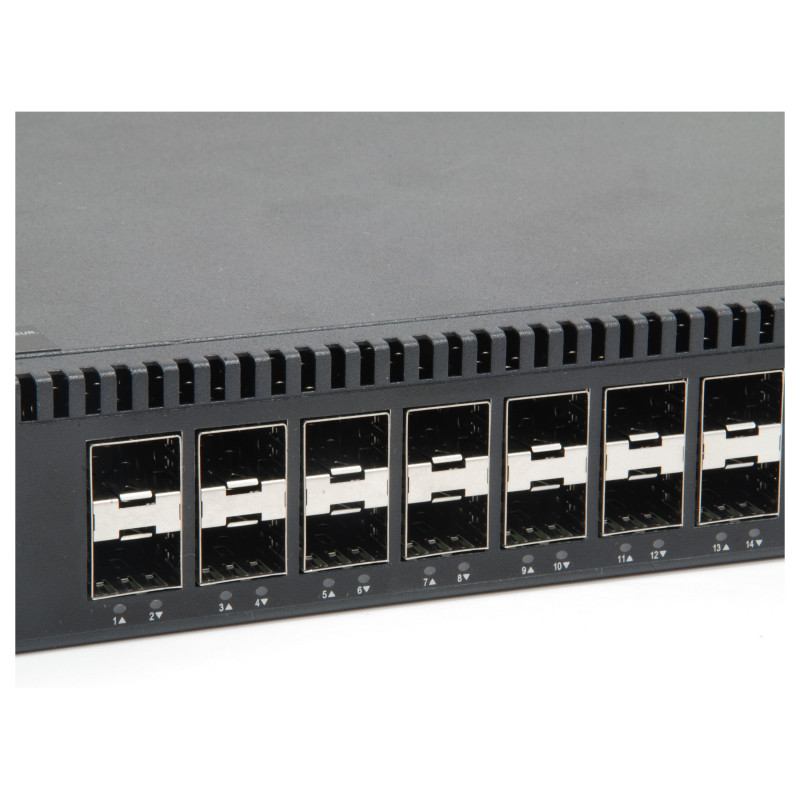

SFP module slots quantity: 20

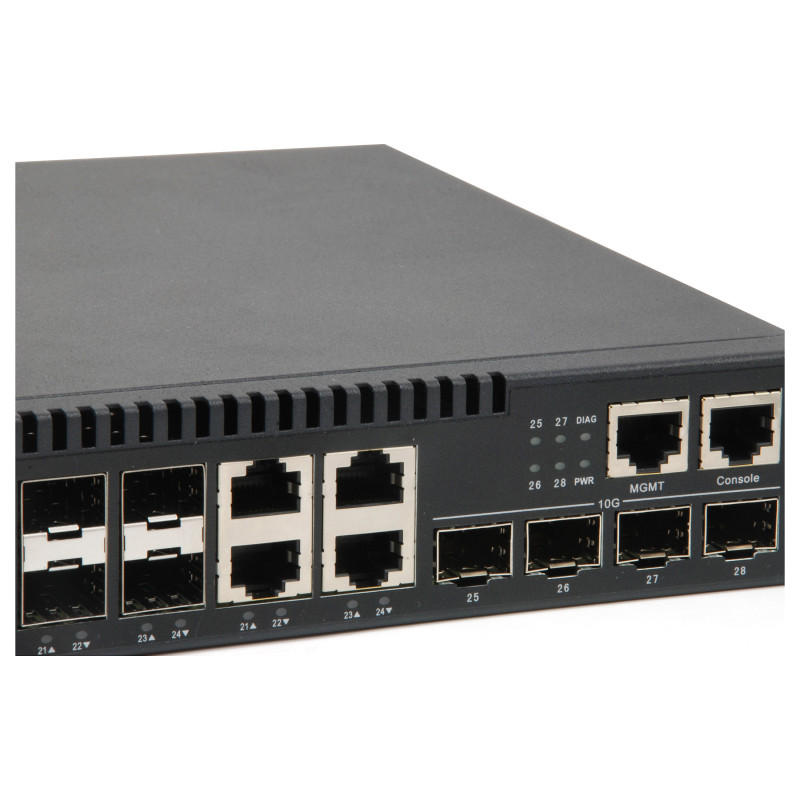

SFP+ module slots quantity: 4
Fiber optic connector: SFP
Console port: RJ-45

Network

Networking standards: IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Feature: Full duplex
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet-based VLAN

Optical fiber

Fiber ethernet cabling technology: 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 1000BASE-LHX, 1000BASE-SX, 1000BASE‑LX, 1000BASE‑ZX

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95 Mpps
MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: Static port security
Feature: Loop protection
Authentication: MAC-based authentication, Port-based authentication, Web-based authentication
Packet filtering: CDP/PVST+

Protocols

Management protocols: CLI, WEB, TELNET
Feature: GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features: Dual stack IPv4/IPv6

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Diagnostic, Link, Power
Safety: UL (UL60950-1)

Performance

Memory type: DRAM
Internal memory: 512 MB
Flash memory: 256 MB
Feature: Telnet
Mean time between failures (MTBF): 298951 h

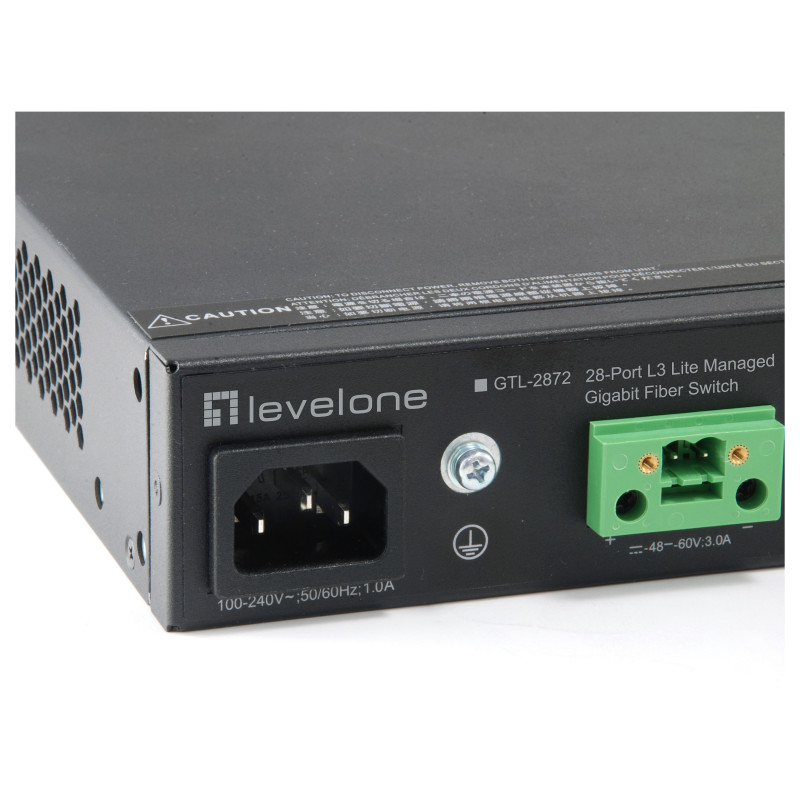

Power

Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input voltage: 48 - 60 V
Power consumption (typical): 21.48 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 440 mm
Depth: 220 mm
Height: 44 mm
Weight: 2.82 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Feature: Resource CD
Package width: 580 mm
Package depth: 405 mm
Package height: 80 mm
Package weight: 3.77 kg

Certificates

Certification: CE, FCC, CISPR, BSMI

Logistics data

Country of origin: China
Master (outer) case width: 600 mm
Master (outer) case length: 435 mm
Master (outer) case height: 340 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 16.6 kg
Products per master (outer) case: 4 pc(s)
