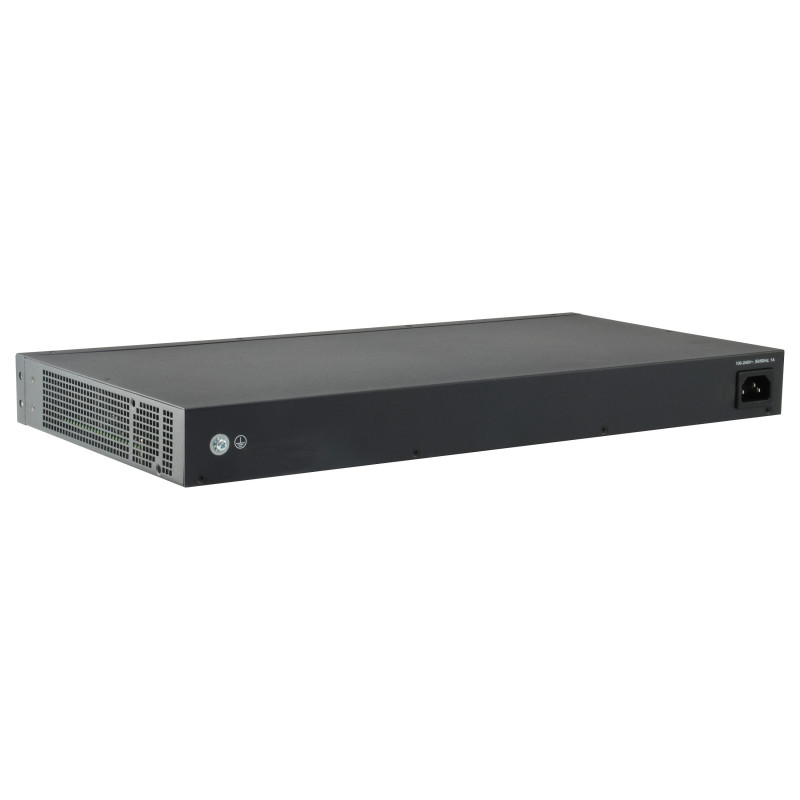

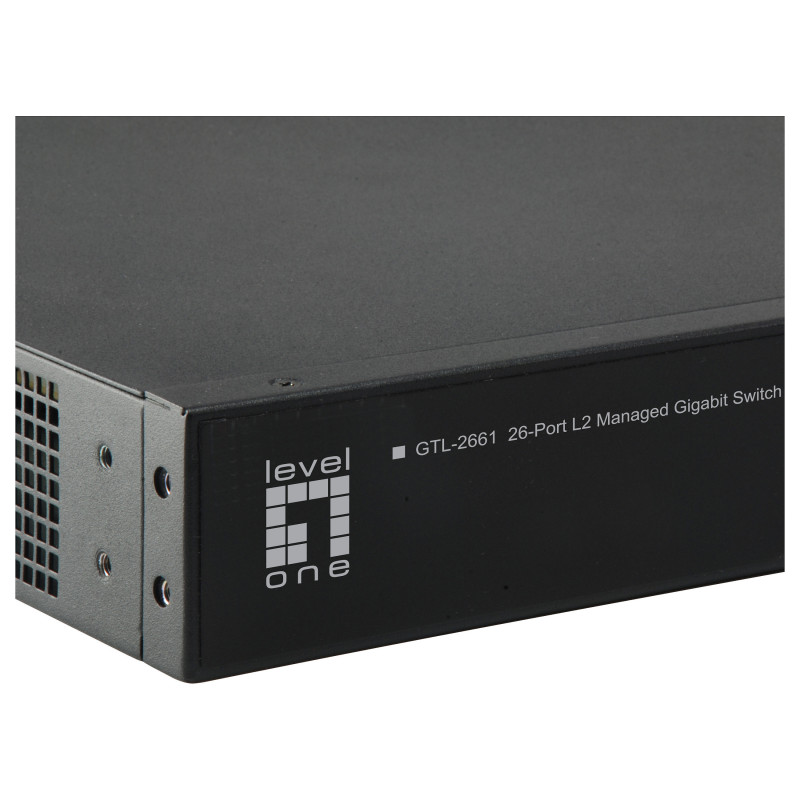

LevelOne GTL-2661 network switch

LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 88 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting

The GTL-2661 series includes high performance Gigabit Ethernet Layer2 switches featuring 26 ports; 24 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual port module. The switch is ideal for high performance server aggregations, such as enterprise data centers, where it can connect high end or network attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit to the desktop for power users. This switch is packed with features and is a cost effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: System event log

Ports & interfaces

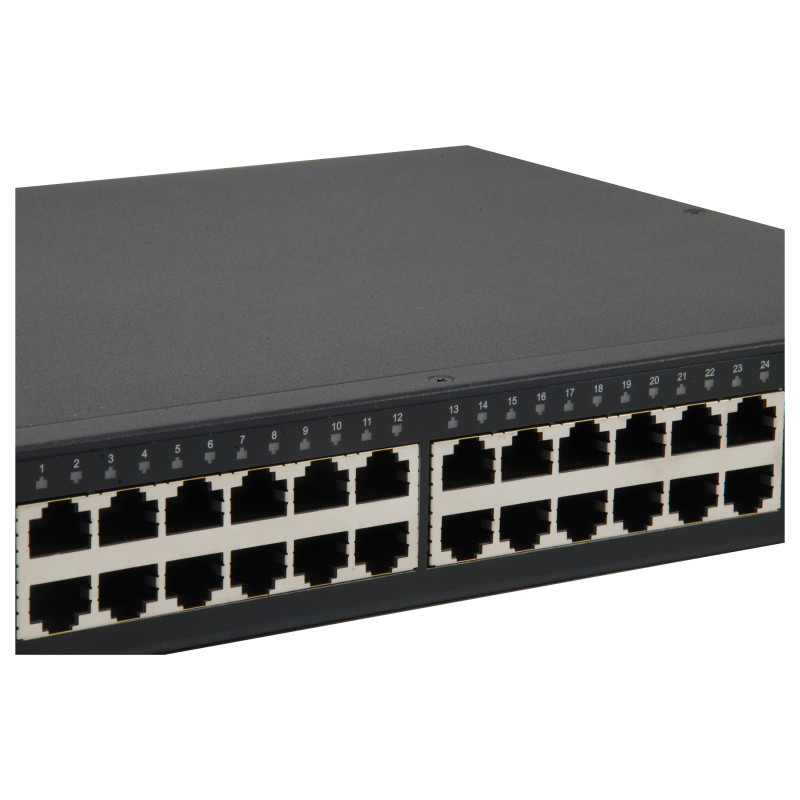

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

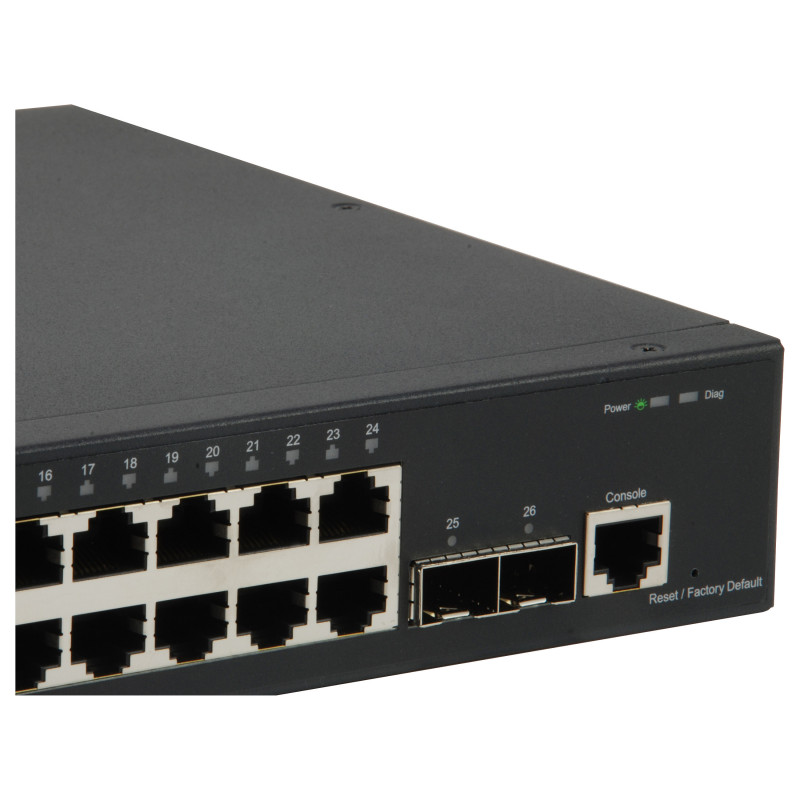

SFP+ module slots quantity: 2
Console port: RJ-45

Network

Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Virtual LAN features: Tagged VLAN, MAC address-based VLAN, Port-based VLAN

Data transmission

Switching capacity: 88 Gbit/s
Forwarding rate: 65.5 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP snooping, DHCP relay, DHCPv6 snooping, DHCP client
Feature: Access Control List (ACL)
Feature: Static port security
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Feature: Password protection
Feature: DoS attack prevention

Protocols

Management protocols: MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, TFTP
Supported network protocols: IPv4/IPv6

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button
LED indicators: Activity, Link, Power
Safety: UL

Performance

Internal memory: 32 MB
Feature: Firmware upgradeable
Feature: Telnet
Feature: Fanless
Mean time between failures (MTBF): 636219 h

Power

Power source: AC

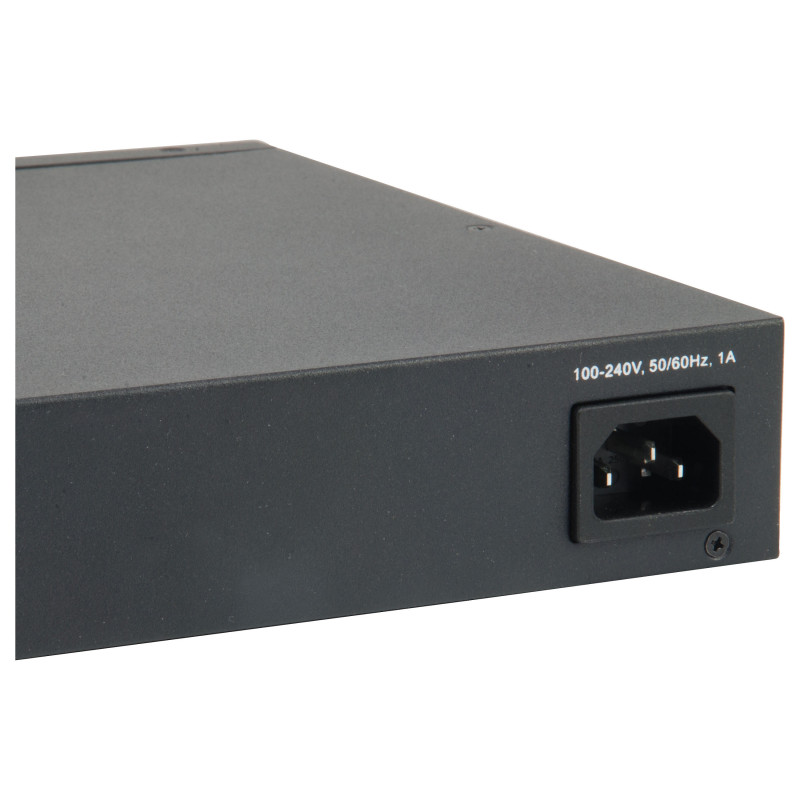

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 20 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 68.242 BTU/h

Weight & dimensions

Width: 220 mm
Depth: 440 mm
Height: 44 mm
Weight: 2.29 kg

Packaging content

Cables included: AC, LAN (RJ-45)
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Feature: Resource CD
Package width: 405 mm
Package depth: 580 mm
Package height: 80 mm
Package weight: 3.02 kg

Certificates

Certification: CE class A, FCC, VCCI, BSMI

Logistics data

Country of origin: China
Master (outer) case width: 340 mm
Master (outer) case length: 600 mm
Master (outer) case height: 435 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 11 kg
Products per master (outer) case: 4 pc(s)
