LevelOne GTL-2091

LevelOne GTL-2091. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 32000 entries, Switching capacity: 256 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: AC-in jack. Rack mounting

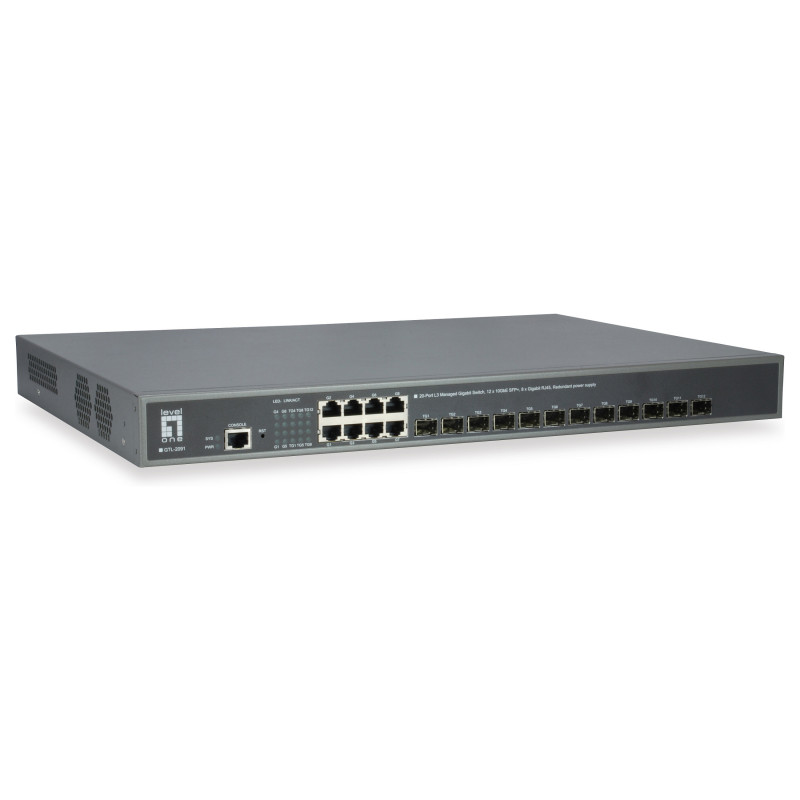

The GTL-2091 is LevelOne latest generation of 20-Port L3 Managed Gigabit Switch, 8 x Gigabit RJ45, with 12 10G SFP+ port connectivity. High-density SFP ports built into allow users to insert different SFP transceivers providing the necessary fiber connections for creating Area Networks infrastructure. also offers AC dual power failover, allowing for continued operation regardless of a single power source failure.

The GTL-2091 offers powerful L3 features(IPv4/v6 static route, RIP v1/v2, OSPF v2/v3, BGP, PIM-DM, PIM-SM ), The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home to business users by providing a more reliable and resilient network , and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements. enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

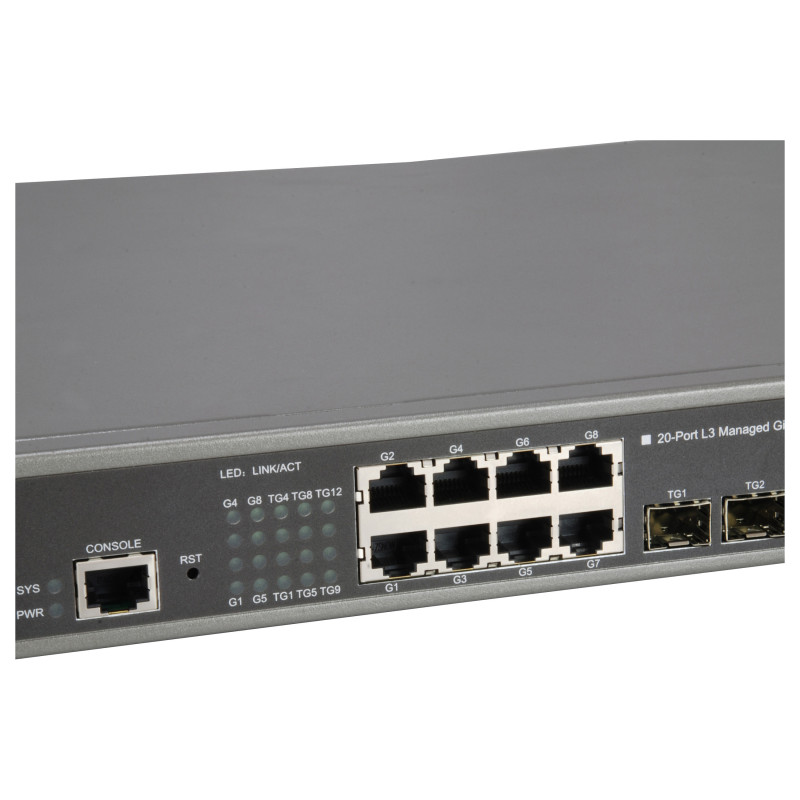

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 12
Console port: RJ-45

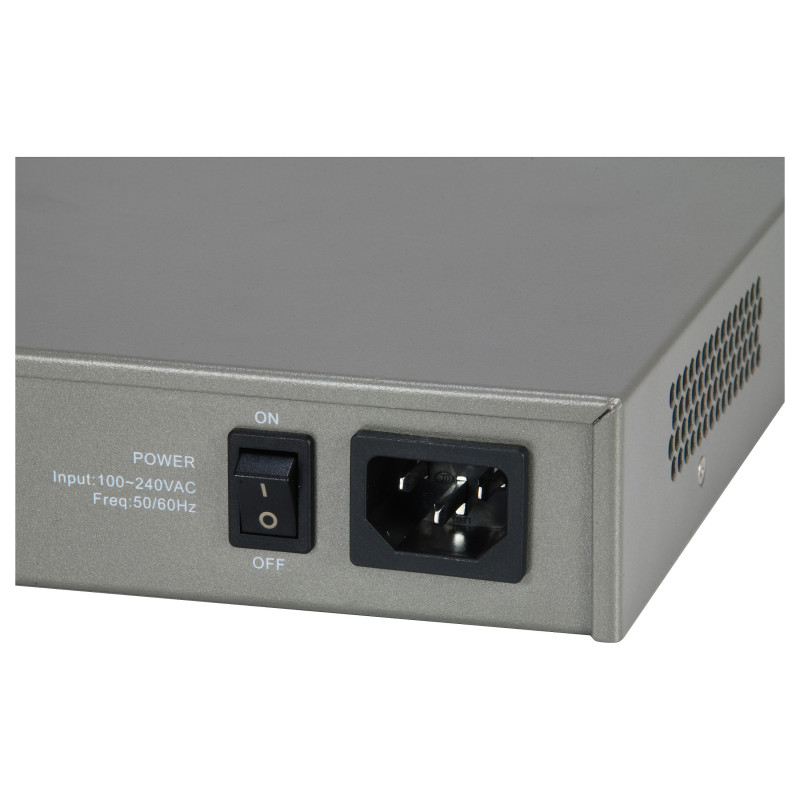

Power connector: AC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: IP routing
Feature: Policy-based routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 10,100,1000 Mbit/s
Network virtualization technologies: Q-in-Q tunneling
Feature: Fast leave
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN

Data transmission

Switching capacity: 256 Gbit/s
MAC address table: 32000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Static route
Number of IP interfaces: 256
Feature: Jumbo frames support
Jumbo frames: 9000
Packet forwarding rate (1 Gbps): 13690474 pps
Packet forwarding rate (100 Mbps): 1369047 pps
Packet forwarding rate (10 Mbps): 136904 pps
Packet buffer memory: 3 MB

Security

DHCP features: DHCP client, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: IGMP proxy
Feature: IP-MAC-Port binding
Authentication: Guest VLAN
Feature: Password protection
Feature: DoS attack prevention
Authentication type: AAA, RADIUS
Queue scheduling algorithms: Deficit Round Robin (DRR), Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 256

Protocols

Feature: GARP VLAN Registration Protocol (GVRP)

Design

Feature: Rack mounting
Product colour: Grey
Housing material: Metal
Feature: Reset button
LED indicators: Activity, Link, Power, System
Safety: FCC Part 15 Subpart B

Performance

Internal memory: 512 MB
Flash memory: 16 MB
Maximum data transfer rate: 10000 Mbit/s
Feature: Telnet
Feature: Dying Gasp
Mean time between failures (MTBF): 185680 h

Power

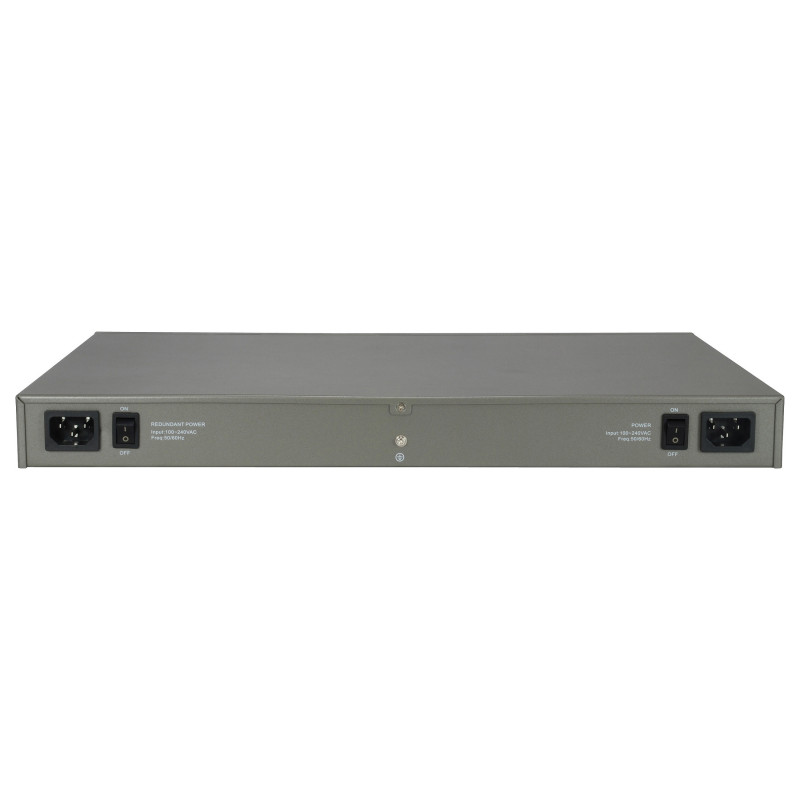

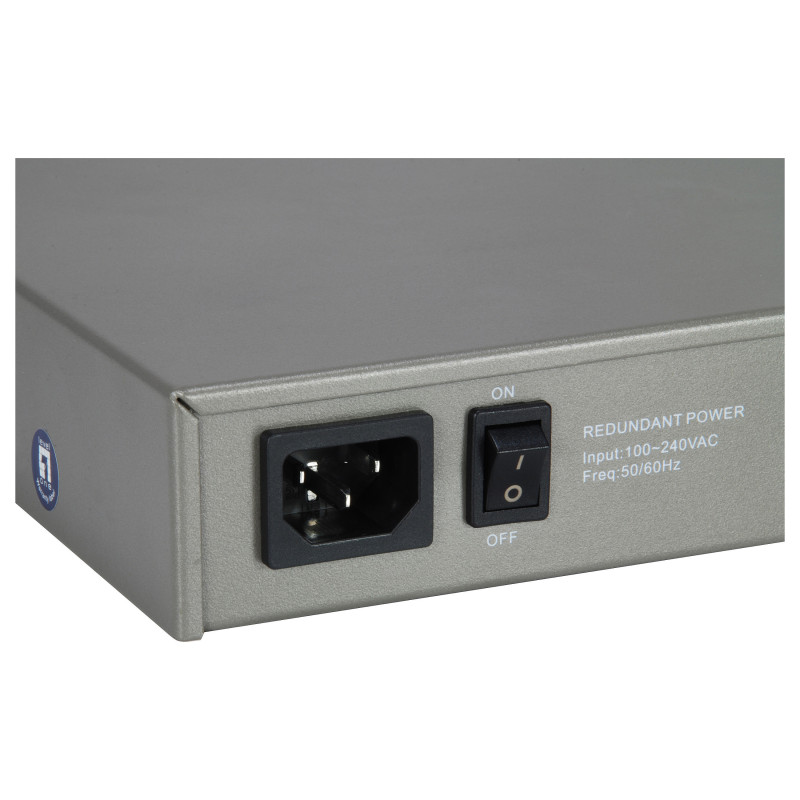

Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 50 W

Other features

Feature: Ethernet LAN

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 90 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 170.65 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 315 mm
Height: 44 mm
Weight: 3.6 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Feature: Rubber feet
Feature: Resource CD
Package width: 576 mm
Package depth: 448 mm
Package height: 94 mm
Package weight: 5.3 kg

Certificates

Compliance certificates: RoHS
Certification: CE

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
