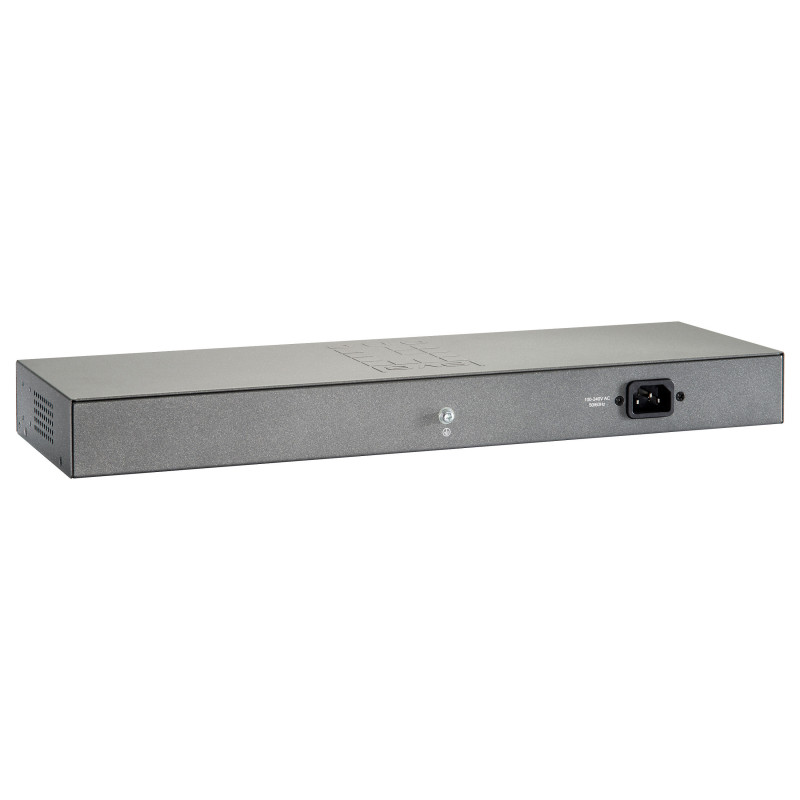

LevelOne GSW-2457 network switch

LevelOne 24-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u. Rack mounting

Gigabit Speeds: Take Your Data to the Next LevelGSW-2457 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.Bandwidth hungry? Not a problem.What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-2457 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.Plug and Play, Flexible and EasyGSW-2457 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 48 Gbit/s
Forwarding rate: 1.488 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power, Speed

Performance

Feature: Built-in processor
Flash memory: 4 MB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 Hz
Power consumption (typical): 15 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 44 mm
Depth: 220 mm
Height: 440 mm
Weight: 2.65 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 224 mm
Package depth: 486 mm
Package height: 77 mm
Package weight: 2.2 kg

Technical details

Master (outer) cases per pallet layer: 22 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 155.5 cm

Logistics data

Country of origin: China
Master (outer) case width: 405 mm
Master (outer) case length: 500 mm
Master (outer) case height: 240 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 12 kg
Products per master (outer) case: 5 pc(s)
