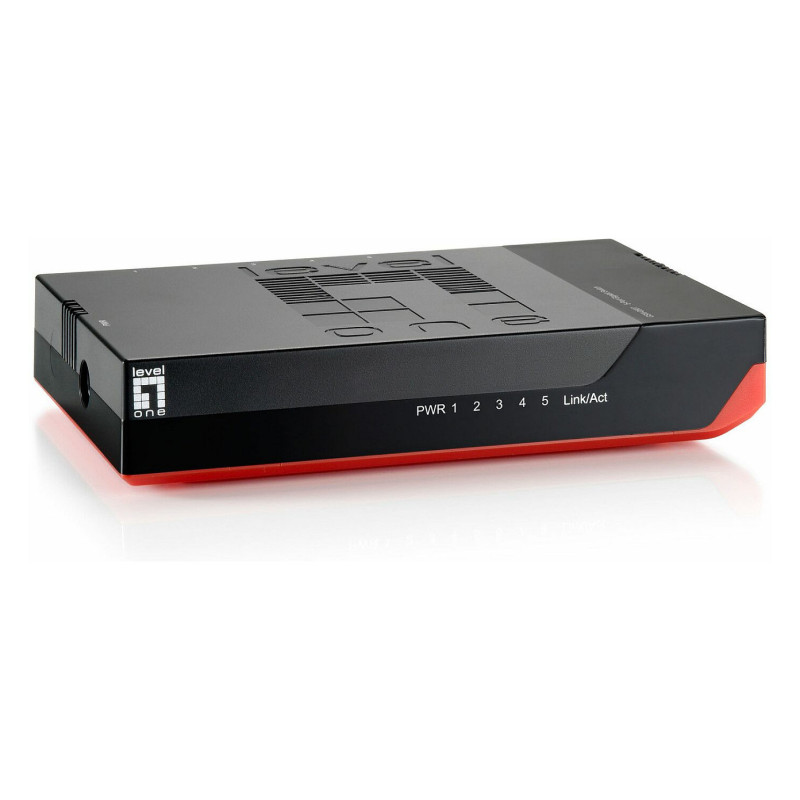

LevelOne GSW-0507 network switch

LevelOne 5-Port Gigabit Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8192 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

The LevelOne GSW-0507 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption. Power Saving Features The GSW-0507 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections. Compact and Stylish Design The stylish, compact wall-mountable housing of GSW-0507 fits any working environment. It comes with 5 10/100/1000Mbps ports to meet SOHO and home network expansion needs. Easy to Use The GSW-0507 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.

Management features

Switch type: Unmanaged

Ports & interfaces

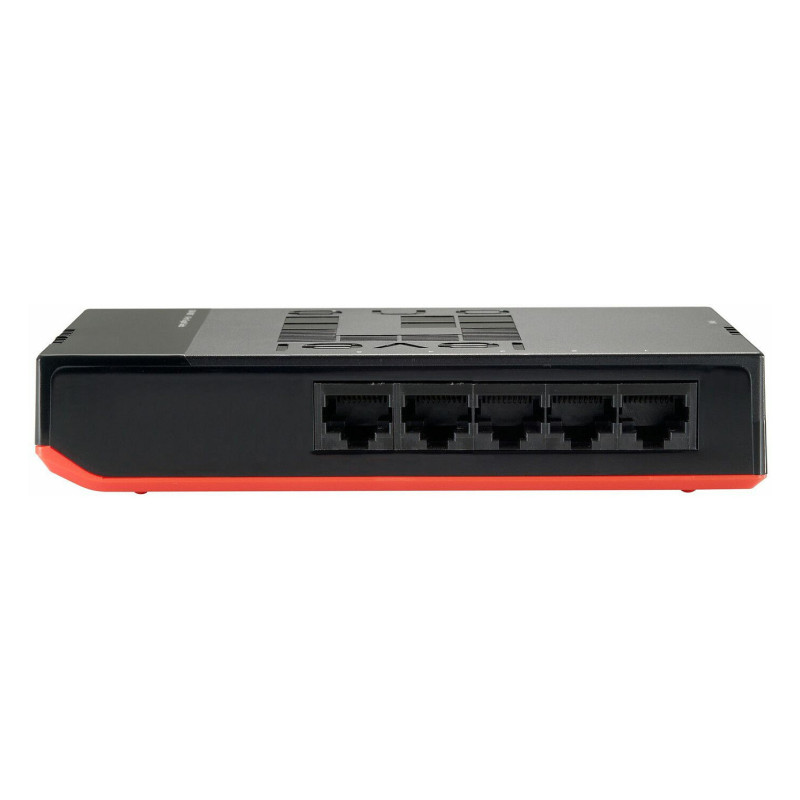

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

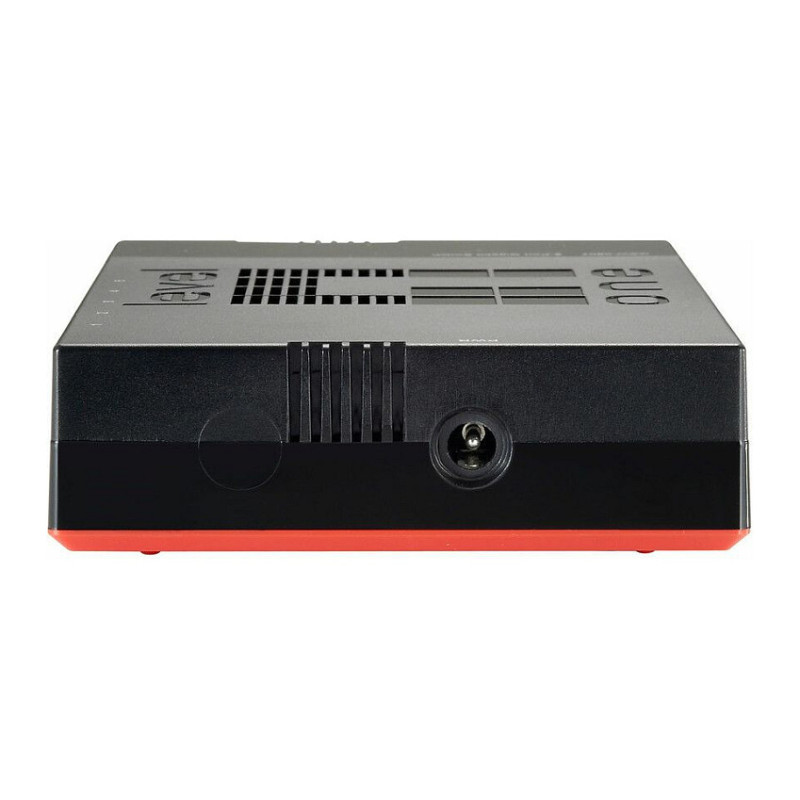

Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8192 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 1 MB

Design

Product colour: Black, Red

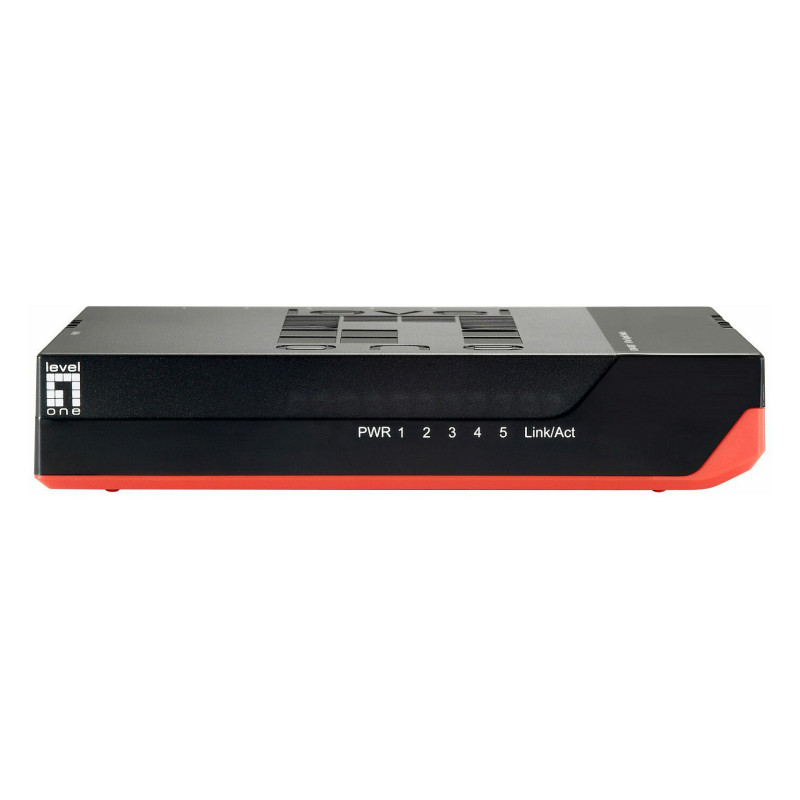

LED indicators: Activity, Link, Power

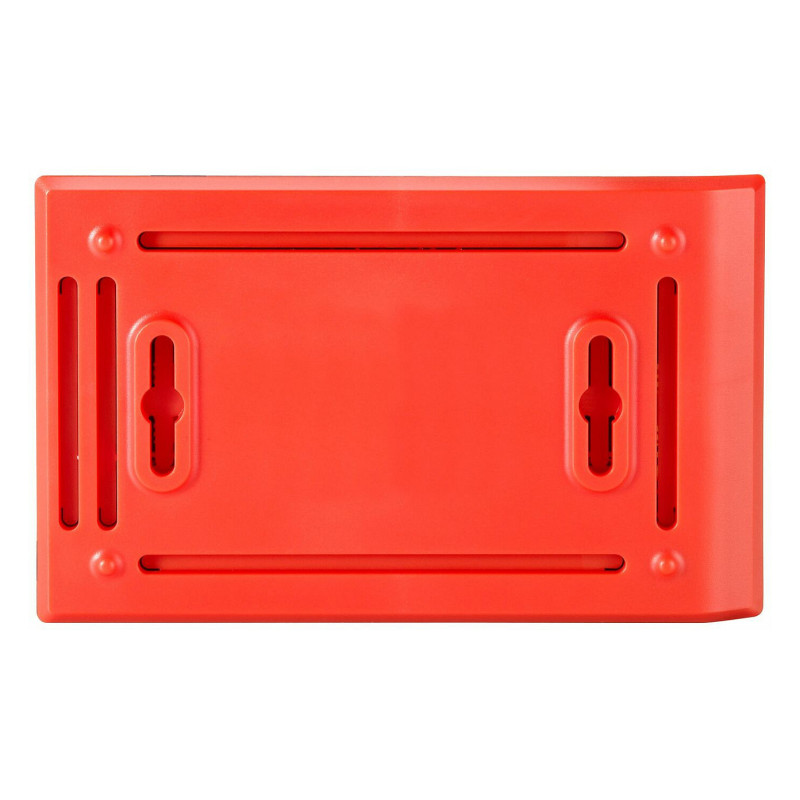

Feature: Wall mountable

Performance

Flash memory: 1024 MB

Power

Input current: 1 A
Power consumption (typical): 3 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 149.5 mm
Depth: 89 mm
Height: 27 mm
Weight: 135 g

Packaging content

Feature: Quick start guide

Packaging data

Feature: AC adapter included
Package type: Box
Package width: 92 mm
Package depth: 142 mm
Package height: 92 mm
Package weight: 300 g

Technical details

Pallet net height: 169 cm
Pallet net length: 80 cm
Pallet net width: 120 cm

Certificates

Certification: CE, RoHS, FCC

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
