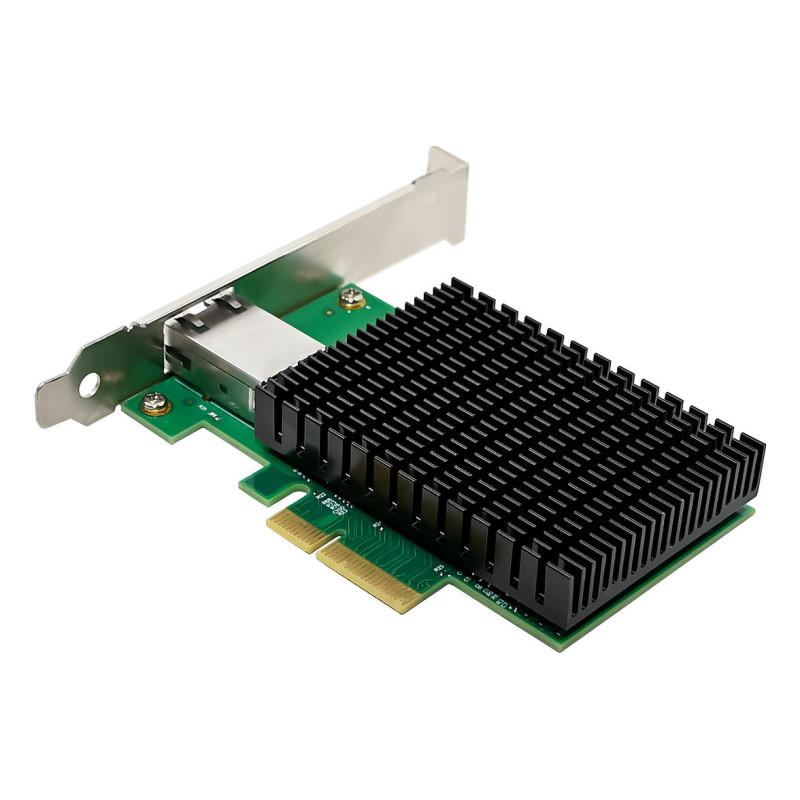

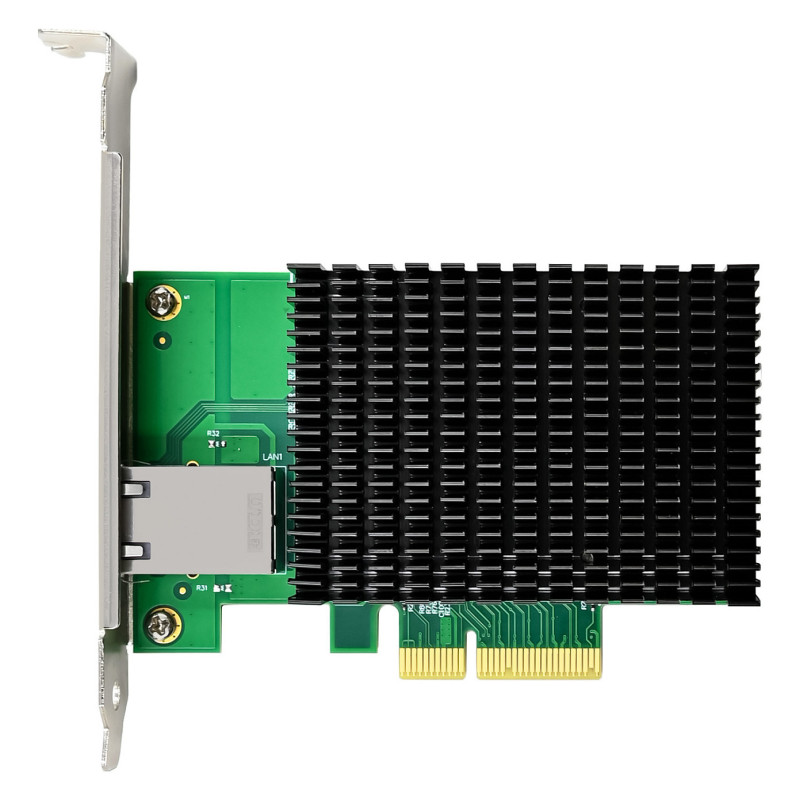

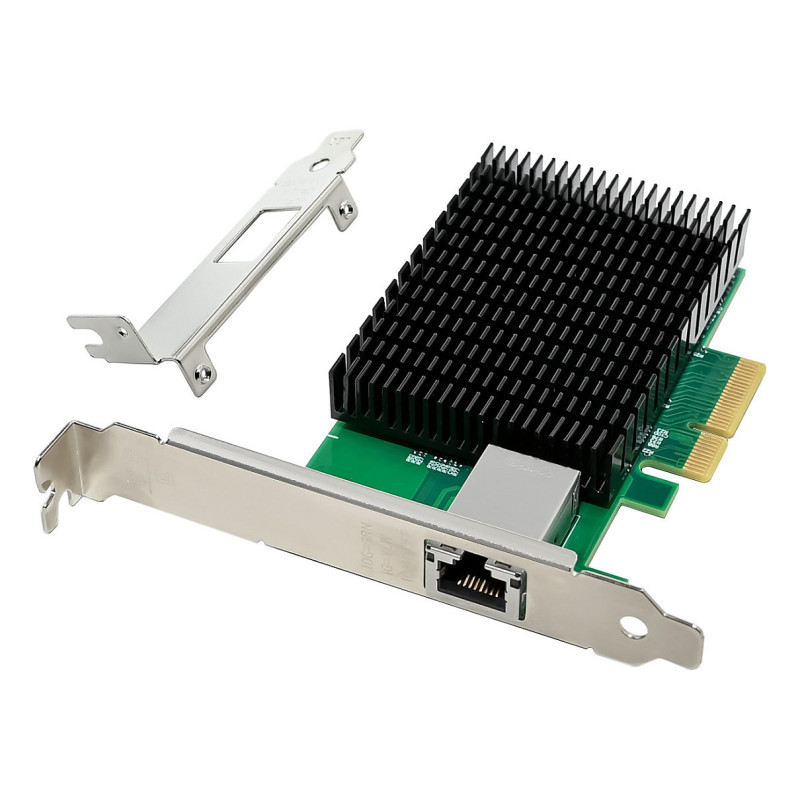

LevelOne GNC-0210 network card

LevelOne 10-Gigabit PCIe x4 Network Card, 1 x RJ45. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Green

The GNC-0210 is a powerhouse 10-Gigabit PCIe network card designed to turbocharge your network performance. Experience unparalleled data transfer speeds, enhanced efficiency, and perfect for handling large data transfers, streaming high-resolution content, and supporting resource-intensive applications.

Elevate your network experience with the GNC-0210. Embrace unmatched speed, efficiency, and control for a truly next-level connected experience.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s
Cabling technology: 10GBase-T
Feature: Wake-on-LAN ready
Feature: Jumbo frames support
Jumbo frames: 16000
Supported network protocols: IPv4, IPv6

Design

Component for: PC/Server
Product colour: Green
Feature: Internal
Country of origin: China

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2012, Windows Server 2016

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 105 mm
Depth: 68 mm
Height: 20 mm
Weight: 110 g

Packaging data

Package width: 183 mm
Package depth: 152 mm
Package height: 30 mm
Package weight: 230 g

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 8517620090
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 189.4 cm
Master (outer) cases per pallet: 19 pc(s)
Master (outer) case width: 490 mm
Master (outer) case length: 340 mm
Master (outer) case height: 350 mm
Master (outer) case gross weight: 15 kg
Products per master (outer) case: 60 pc(s)
