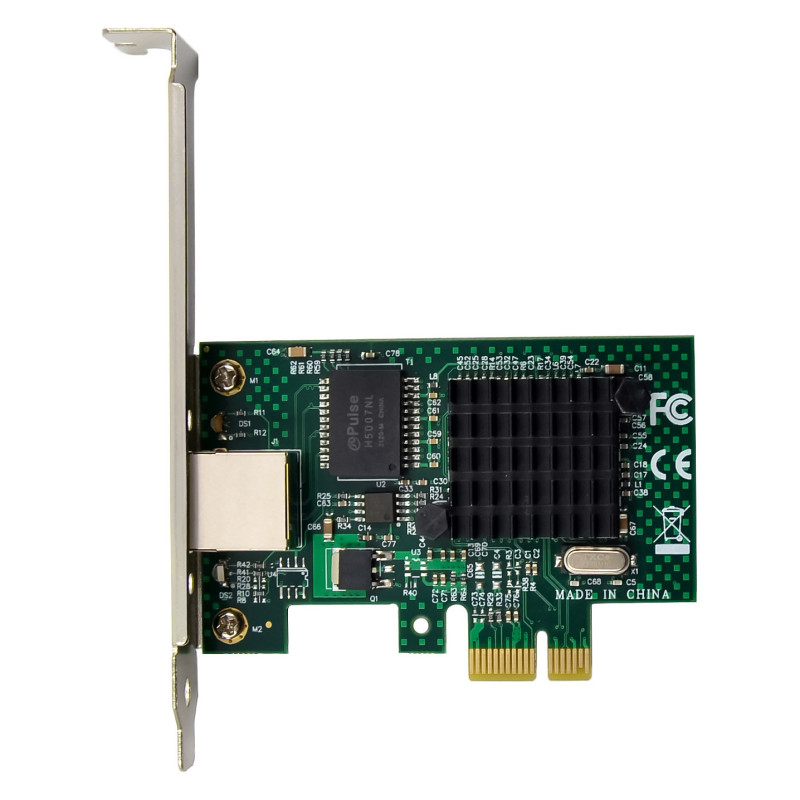

LevelOne GNC-0112 network card

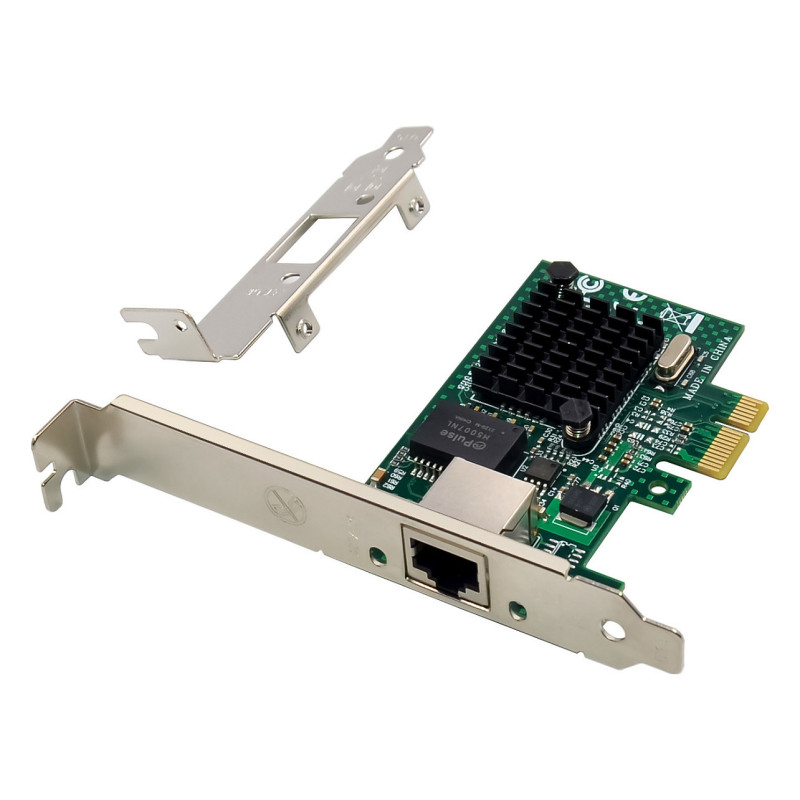

LevelOne Gigabit PCIe Network Card, Low Profile Bracket included, Low Profile Bracket. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Black, Green, Silver

The LevelOne GNC-0112 Gigabit network card facilitates high-speed connectivity within network, with PCI Express (v1.1 compliant) supporting speeds of up to 2.5 Gbps. Wake-on-LAN functionality allows remote start-up. GNC-0112 Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow. IEEE 802.1Q VLAN allows network segmentation, further enhancing performance and security.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1ab, IEEE 802.3, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready

Design

Component for: PC
Product colour: Black, Green, Silver
Feature: Internal
Chipset: Broadcom BCM5751
LED indicators: Activity, Link
Certification: CERoHS

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows XP
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 82 mm
Depth: 56 mm
Height: 20 mm
Weight: 45.6 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide

Logistics data

Harmonized System (HS) code: 85176990
