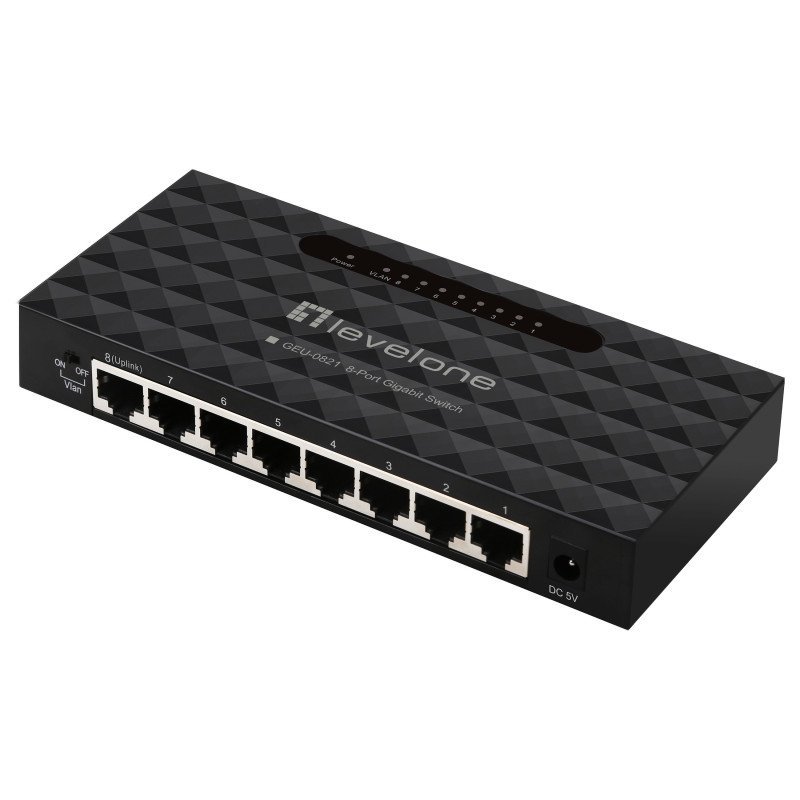

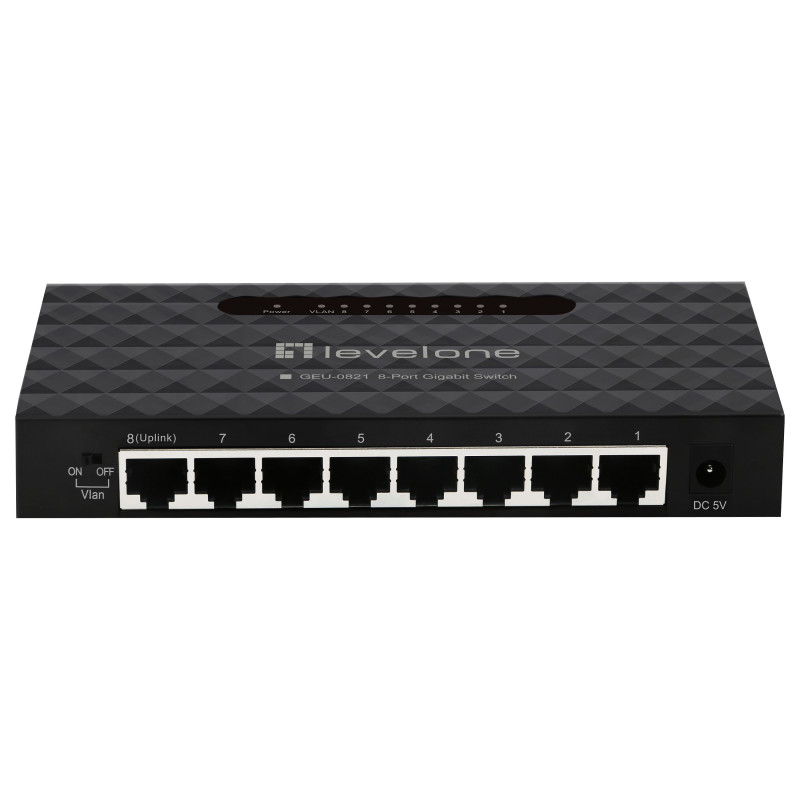

LevelOne GEU-0821 network switch

LevelOne GEU-0821. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. DC input voltage: 5 V. Wall mountable

The LevelOne GEU-0821 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 1000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports VLAN isolation mode on/off control by dip switches.

Power Saving Features
The GEU-0821 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One way is to automatically detecting the length of connected cables and to adjust power usage by saving energy on shorter cable connections.

Compact and Stylish Design
The stylish, compact wall-mountable housing of GEU-0821 fits any working environment. It comes with 8 x 10/100/1000Mbps ports to meet SOHO and home network expansion needs.

Easy to Use
The GEU-0821 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.

Management features

Switch type: Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

Network

Feature: Full duplex
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support

Data transmission

MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000

Design

LED indicators: Yes
Feature: Wall mountable

Power

Power source: AC
Feature: Power supply included
DC input voltage: 5 V
Input current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 160.9 mm
Depth: 71.6 mm
Height: 26.3 mm
Weight: 280 g

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 175 mm
Package depth: 80 mm
Package height: 80 mm
Package weight: 447 g

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
