LevelOne GEU-0525 network switch

LevelOne 5-Port Unmanaged 2.5-Gigabit Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Wall mountable

2.5-Gigabit Speeds: Take Your Data to the Next Level
The GEU-0525 is a 5-port 2.5-Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 2500Mbps.

Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GEU-0525 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Plug and Play, Flexible and Easy
The GEU-0525 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 25 Gbit/s
Forwarding rate: 18.6 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 4 MB

Design

Product colour: Black

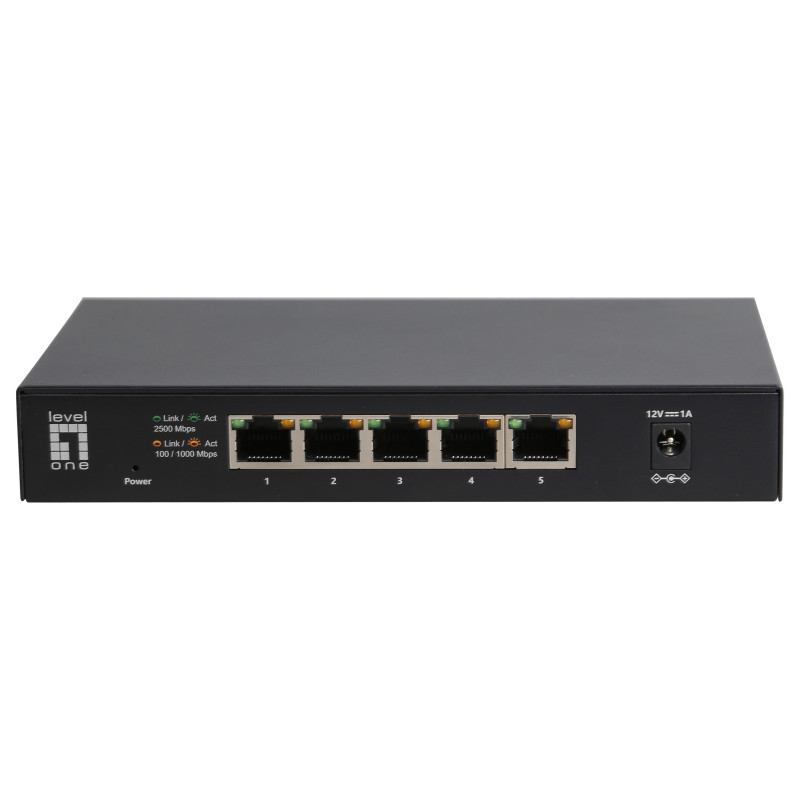

LED indicators: Activity, Link, Power
Feature: Wall mountable

Performance

Noise level: 0 dB
Feature: Fanless

Power

Power source: DC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 0.4 A
Input voltage: 12 V

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 175.5 mm
Depth: 105.3 mm
Height: 27.3 mm
Weight: 476.7 g

Packaging content

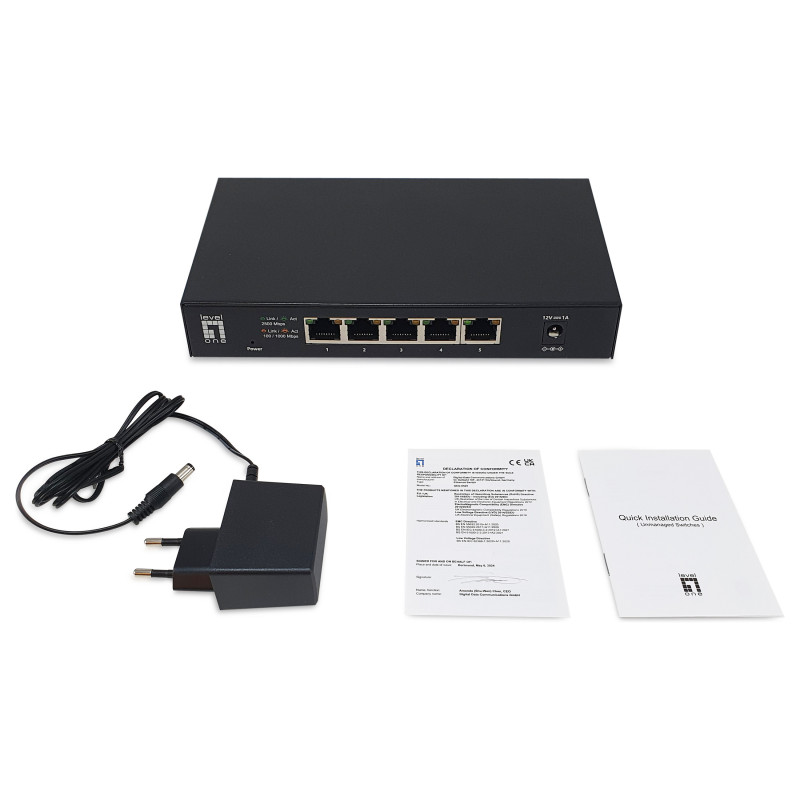

Feature: Quick start guide

Packaging data

Feature: AC adapter included
Package width: 190 mm
Package depth: 115 mm
Package height: 82 mm
Package weight: 614.4 g

Technical details

Master (outer) cases per pallet (air): 12 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 148.2 cm

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA

Logistics data

Country of origin: China
Master (outer) case width: 605 mm
Master (outer) case length: 400 mm
Master (outer) case height: 440 mm
Harmonized System (HS) code: 851762
Master (outer) case gross weight: 33 kg
Products per master (outer) case: 50 pc(s)
