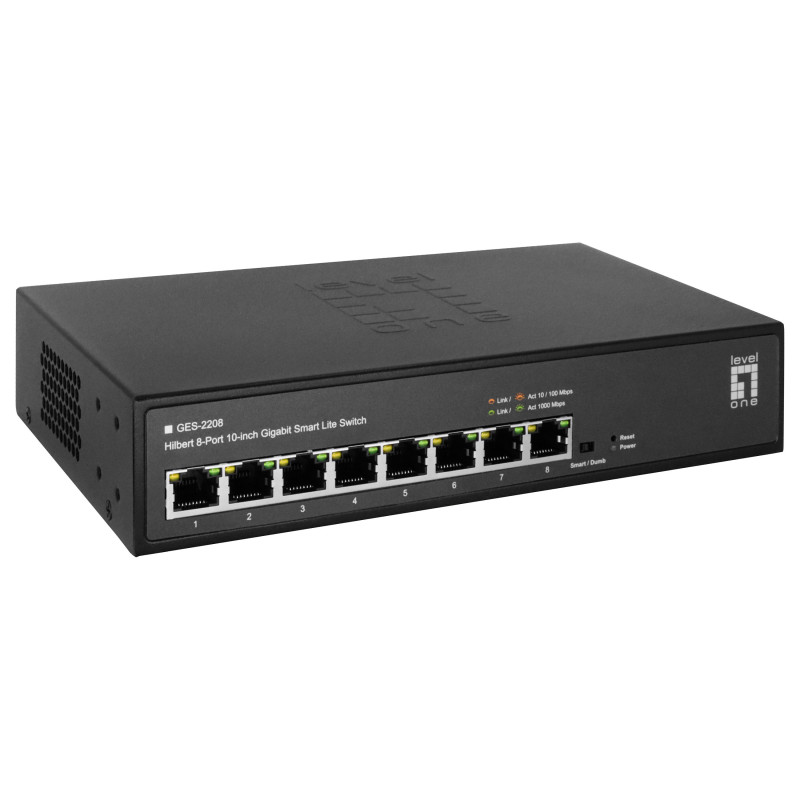

LevelOne GES-2208 network switch

LevelOne Hilbert 10" 8-Port Gigabit Smart Lite Switch, 8 x Gigabit RJ45 (10/100/1000). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: AC-in jack. Rack mounting

If you're in search of a networking solution that fits your 10-inch rack/enclosure, the LevelOne GES-2208 Hilbert gigabit smart lite switch is an excellent option. This next-generation Ethernet switch delivers better functionality and usability, making it cost-effective for businesses and organizations.

The switch offers 8 (10M/100M/1G) RJ45 ports and is compatible with the latest LevelOne IP Locator, the easiest-to-use switch discovery tool, which can search all Hilbert series switches and instantly know forgotten IP and other info. Additionally, it's compatible with mainstream Windows and Mac operating systems.

With both dumb and smart Switchable usage modes, the switch is easily configurable using a DIP switch. It provides high-speed connectivity for all your devices, with 8 Gigabit ports. The support for 802.1q VLAN allows you to segment your network for enhanced security and performance.

The switch supports Port Mirroring, which allows you to monitor network traffic in real-time. Additionally, with Port-Based/802.1p/DSCP priority QoS and support for Storm Control, you can prioritize network traffic correctly and ensure that your network remains secure.

The advanced features like Loop Detection/Prevention make sure your network is always safe and reliable. Moreover, the web-based user interface and Smart-Configuration Utility make IP configuration a breeze. Upgrade your networking today with this powerful switch, and enjoy the ultimate performance, security, and ease of use.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

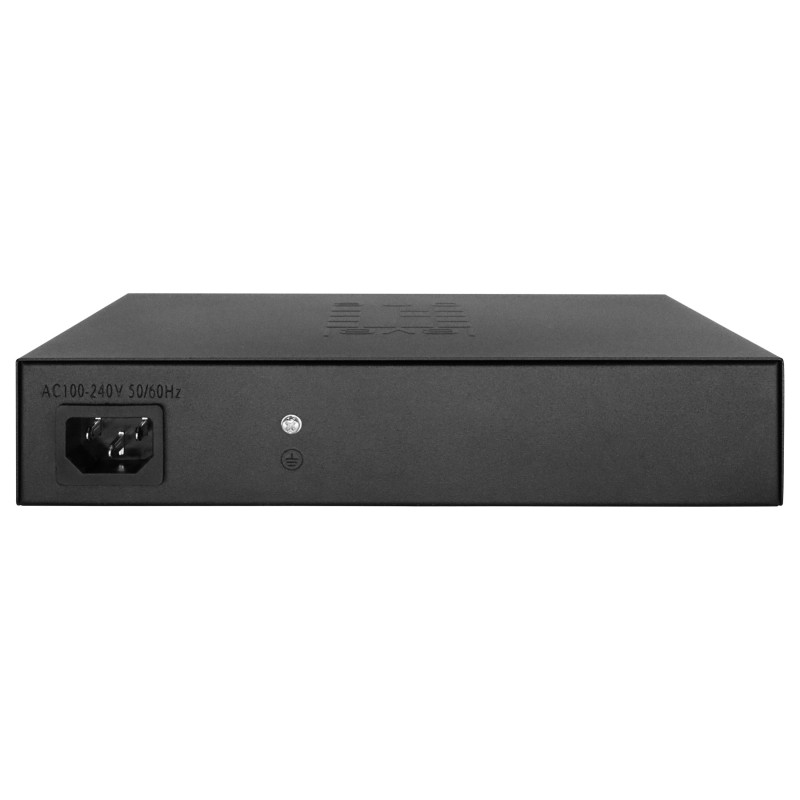

Power connector: AC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Number of VLANs: 32

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

Feature: IGMP snooping

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Activity, Link, Power

Performance

Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 6 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 20.4 BTU/h

Weight & dimensions

Width: 215 mm
Depth: 150 mm
Height: 44.5 mm
Weight: 720 g

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 285 mm
Package depth: 257 mm
Package height: 62 mm
Package weight: 1.19 kg

Certificates

Certification: CE, UKCA, FCC Part 15, Subpart B Class B, RoHS

Logistics data

Country of origin: China
