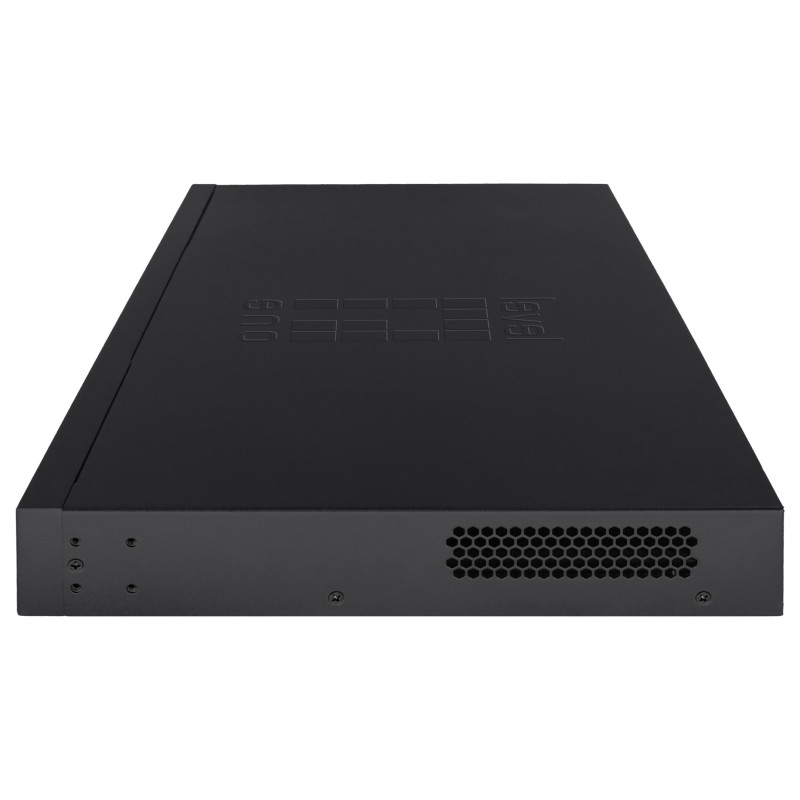

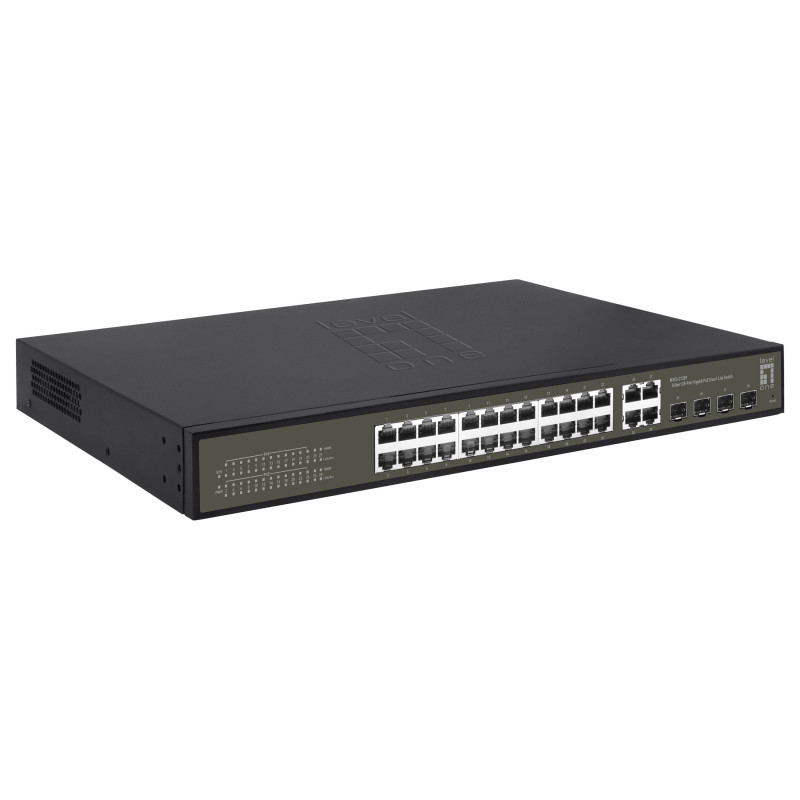

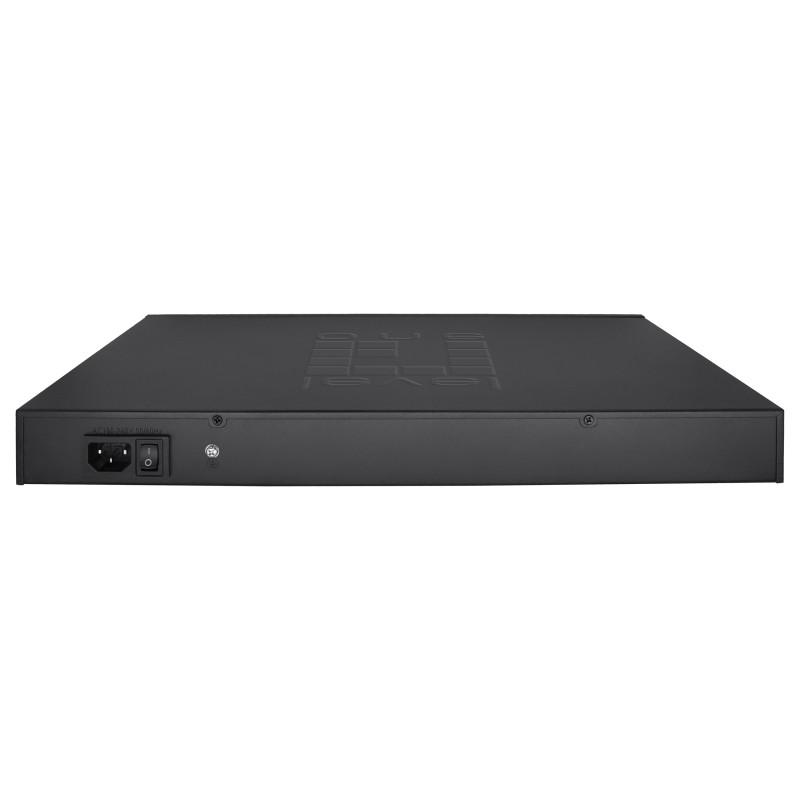

LevelOne GES-2128P network switch

LevelOne Hilbert 28-Port Gigabit PoE Smart Lite Switch, 24 PoE Outputs, 4 x Gigabit SFP/RJ45 Combo, 802.3at/af PoE, 380W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Rack mounting

The LevelOne GES-2128P Hilbert gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2128P delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 380W) ports and 4 Combo GbE RJ45/SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2128P provides high HW performance and environment flexibility for Enterprises. GES-2128P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Combo SFP ports quantity: 4

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 56 Gbit/s
MAC address table: 8000 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

Feature: IGMP snooping

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Activity, Link, PoE, Power, System

Performance

Flash memory: 2 MB
Noise level: 30 dB
Mean time between failures (MTBF): 43800 h

Power

Power source: AC/PoE
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 400 W
Feature: Surge protection
Surge protection voltage: 8 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 380 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 88.71 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 290 mm
Height: 44.5 mm
Weight: 3.4 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 515 mm
Package depth: 380 mm
Package height: 93 mm
Package weight: 4.1 kg

Technical details

Master (outer) cases per pallet (air): 16 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 174.4 cm

Certificates

Compliance certificates: CE, RoHS
Certification: UKCA, FCC Class A

Logistics data

Master (outer) case net weight: 750 g
Country of origin: China
Master (outer) case width: 540 mm
Master (outer) case length: 320 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 13.1 kg
Products per master (outer) case: 3 pc(s)
