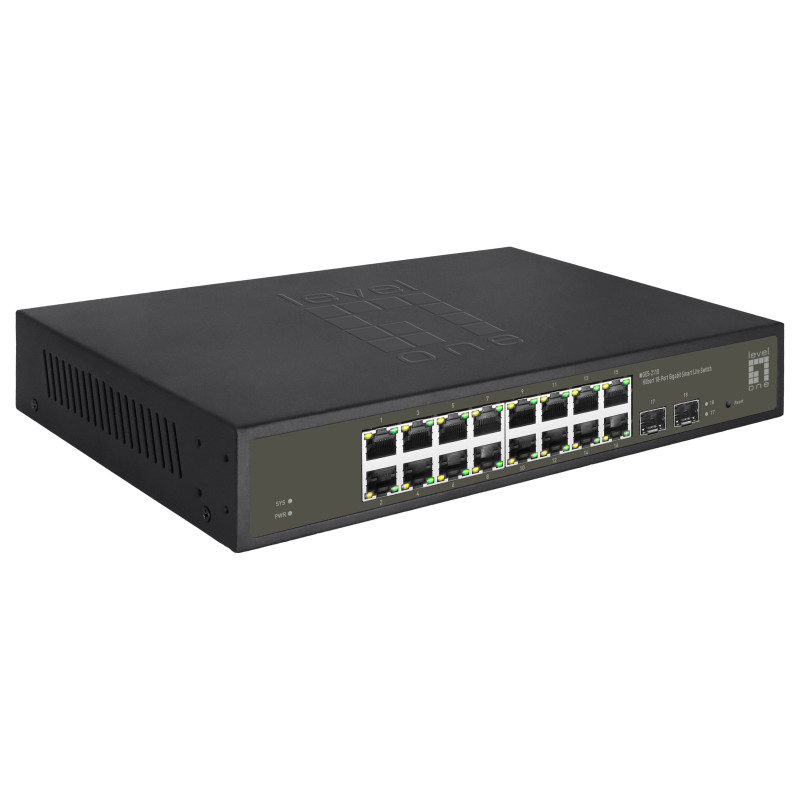

LevelOne GES-2118 network switch

LevelOne Hilbert 18-Port Gigabit Smart Lite Switch, 16 x Gigabit RJ45, 2 x Gigabit SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Rack mounting

The LevelOne GES-2118 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118 delivers 16 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2118 provides high HW performance and environment flexibility for Enterprises. GES-2118 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 36 Gbit/s
MAC address table: 8000 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

Feature: IGMP snooping

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Activity, Link, Power

Performance

Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 43800 h

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 15 W
Feature: Surge protection
Surge protection voltage: 8 kV

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 51.18 BTU/h

Weight & dimensions

Width: 271 mm
Depth: 181.5 mm
Height: 44.5 mm
Weight: 1.08 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 350 mm
Package depth: 267 mm
Package height: 89 mm
Package weight: 1.68 kg

Sustainability

Feature: Sustainability compliance

Technical details

Master (outer) cases per pallet (air): 12 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 182.4 cm

Certificates

Compliance certificates: CE, RoHS
Certification: UKCA, FCC Class A

Logistics data

Master (outer) case net weight: 1 kg
Country of origin: China
Master (outer) case width: 480 mm
Master (outer) case length: 370 mm
Master (outer) case height: 560 mm
Master (outer) case gross weight: 17.8 kg
Products per master (outer) case: 10 pc(s)
