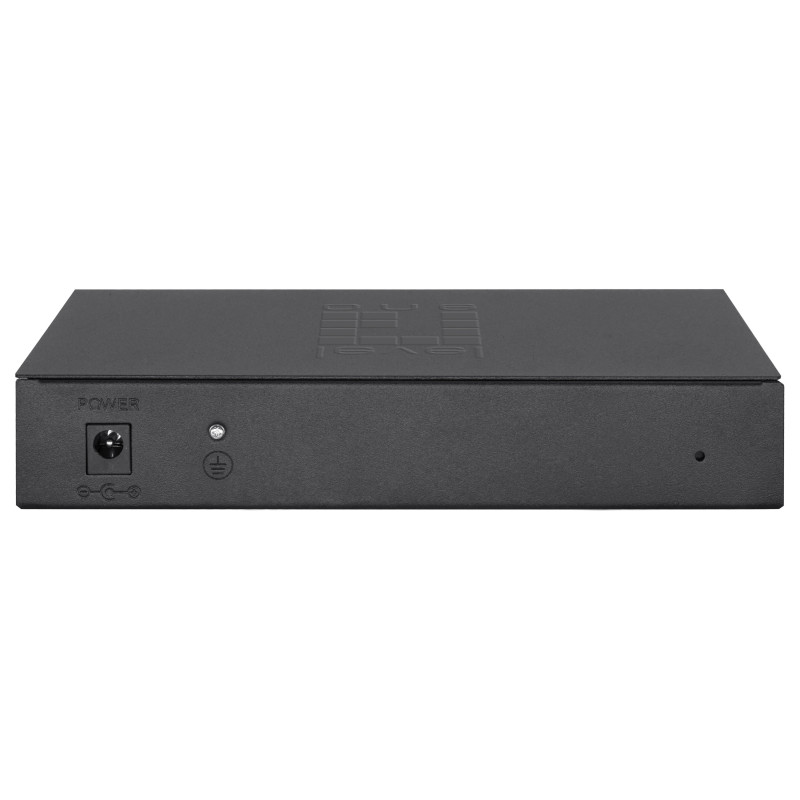

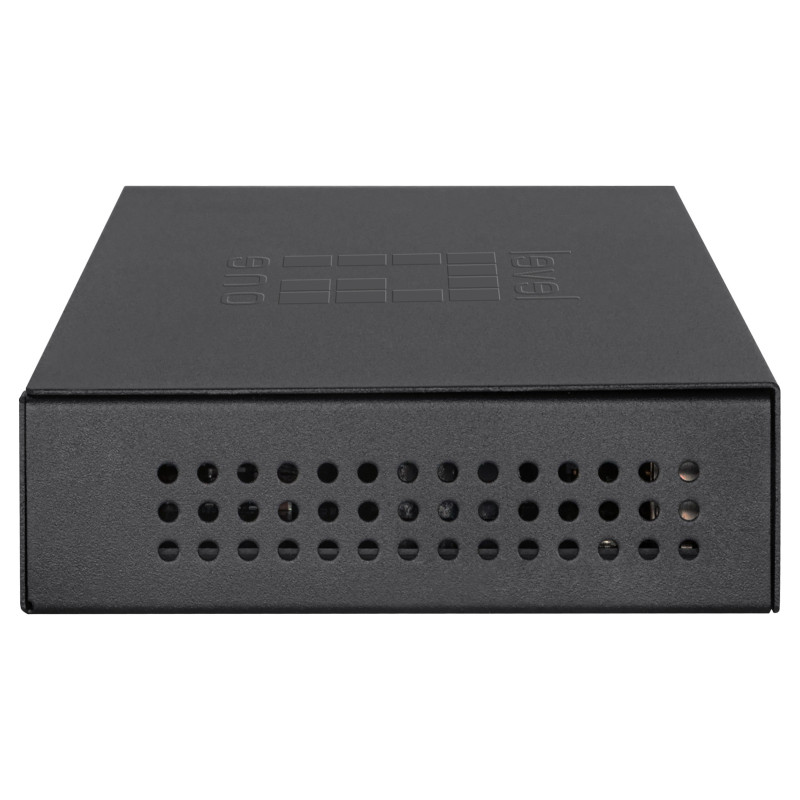

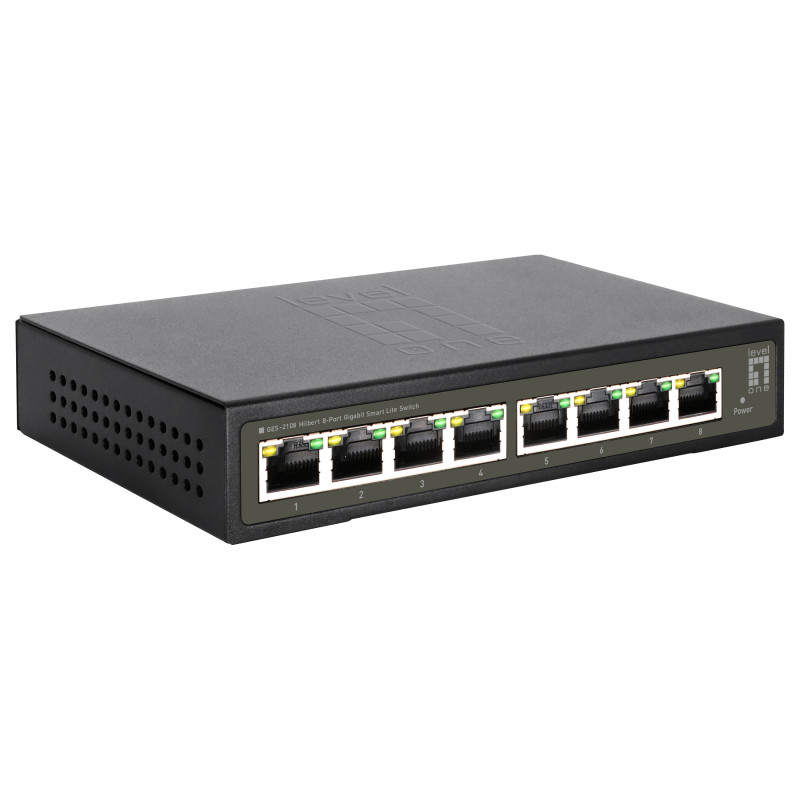

LevelOne GES-2108 network switch

LevelOne Hilbert 8-Port Gigabit Smart Lite Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V

The LevelOne GES-2108 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. GES-2108 delivers 8 (10M/100M/1G) RJ45 ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2108 provides high HW performance and environment flexibility for Enterprises. GES-2108 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

Feature: IGMP snooping

Multicast features

Feature: Multicast support

Design

Product colour: Black
LED indicators: Link, Power

Performance

Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 43800 h

Power

Power source: DC
Feature: Power supply included
DC input voltage: 12 V
Input current: 1 A
Power consumption (max): 6 W
Feature: Surge protection
Surge protection voltage: 8 kV

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 20.4 BTU/h

Weight & dimensions

Width: 160 mm
Depth: 95 mm
Height: 29 mm
Weight: 350 g

Packaging content

Feature: Quick start guide

Packaging data

Feature: AC adapter included
Package type: Box
Package width: 264 mm
Package depth: 122 mm
Package height: 52 mm
Package weight: 500 g

Sustainability

Feature: Sustainability compliance

Technical details

Master (outer) cases per pallet (air): 16 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 170.4 cm

Certificates

Compliance certificates: CE, RoHS

Logistics data

Master (outer) case net weight: 700 g
Country of origin: China
Master (outer) case width: 550 mm
Master (outer) case length: 330 mm
Master (outer) case height: 390 mm
Master (outer) case gross weight: 18.7 kg
Products per master (outer) case: 36 pc(s)
