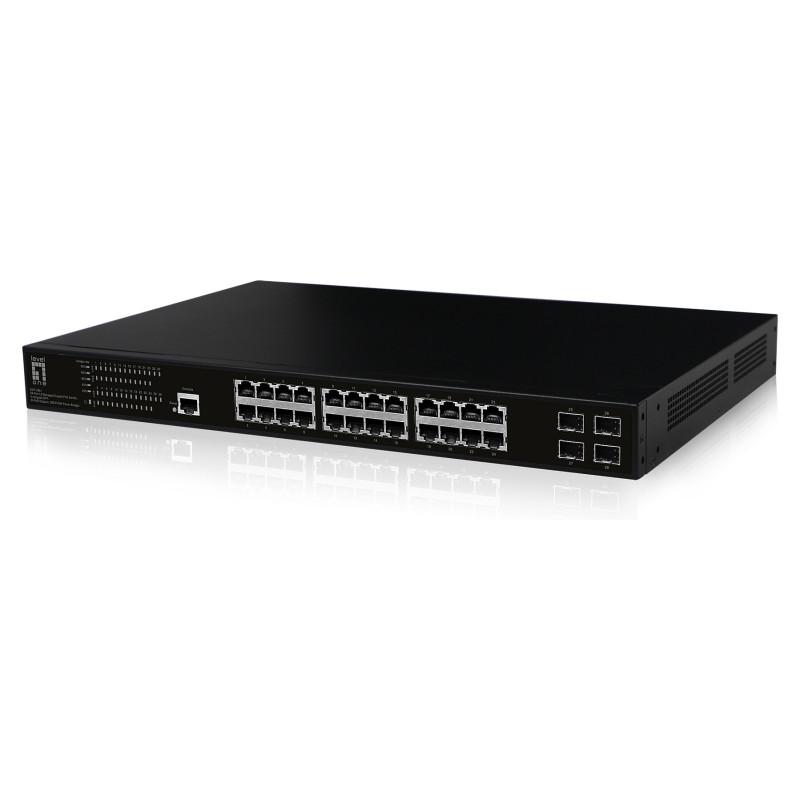

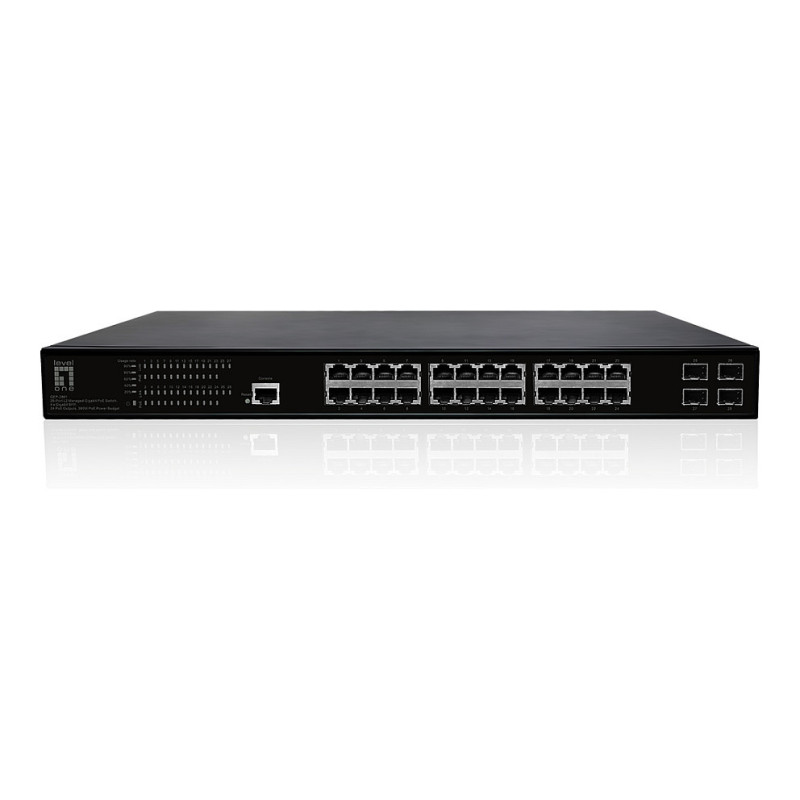

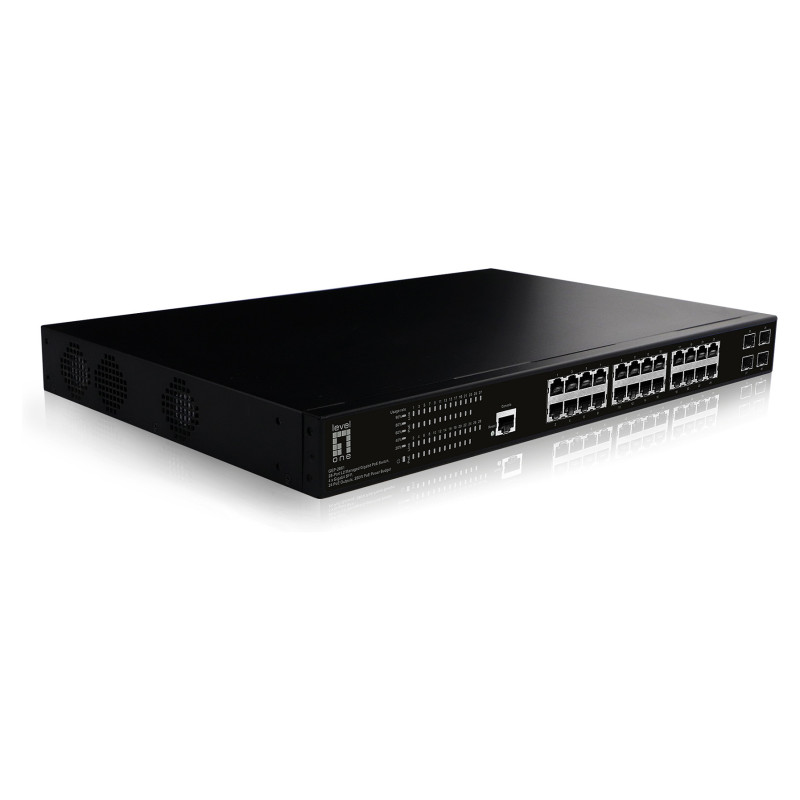

LevelOne GEP-2861 network switch

LevelOne GEP-2861. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
The levelone GEP-2861 is a 28-Port L2 Managed Gigabit PoE Switch that supports up to 24*10/100/1000M PoE ports and 4*1000M SFP ports. 24*10/100/1000M ports support PoE+ and total up to 390W PoE power budget, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W. supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management. It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. supports 19" rack mount and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions. GEP-2861 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2861 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 4
Console port: RJ-45
Power connector: AC-in jack

Network

Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 100BASE-TX
Feature: Port mirroring
Feature: Broadcast storm control
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support

Data transmission

Switching capacity: 56 Gbit/s
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 4 MB

Security

Feature: Access Control List (ACL)
Feature: BPDU filtering/protection
Feature: Password protection

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Activity, Link, PoE, Speed, System

Performance

Feature: Firmware upgradeable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 390 W

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight dimensions

Width: 442 mm
Depth: 285 mm
Height: 44 mm
Weight: 4 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 395 mm
Package depth: 90 mm
Package height: 530 mm
Package weight: 4.8 kg

Certificates

Certification: CE, RoHS

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
