LevelOne GEP-1051 network switch

LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP, 70W. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

The GEP-1051 is a web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large. The GEP-1051 is a full-PoE fanless design switch, it supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users.

As well as IPv4 and IPv6 features. The GEP-1051 includes the best green-saving technologies
(IEEE 802.3az and Green-Ethernet). Using the Energy Efficient Ethernet standard, the switch automatically decreases power usage when network traffic is low.

Management features

Switch type: Managed
Switch layer: L2/L3/L4
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log
MIB support: Y

Ports & interfaces

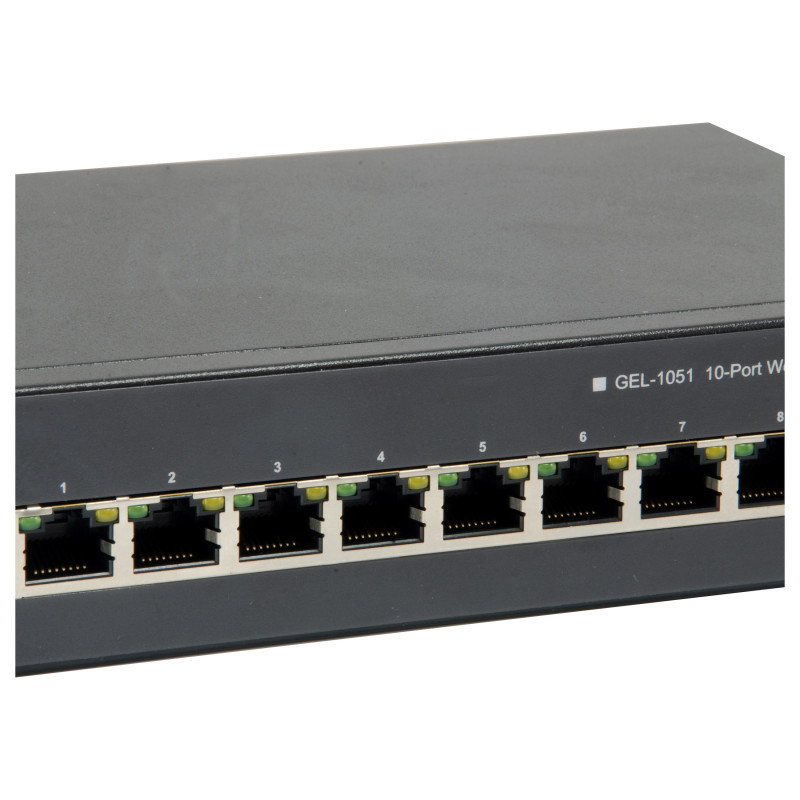

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

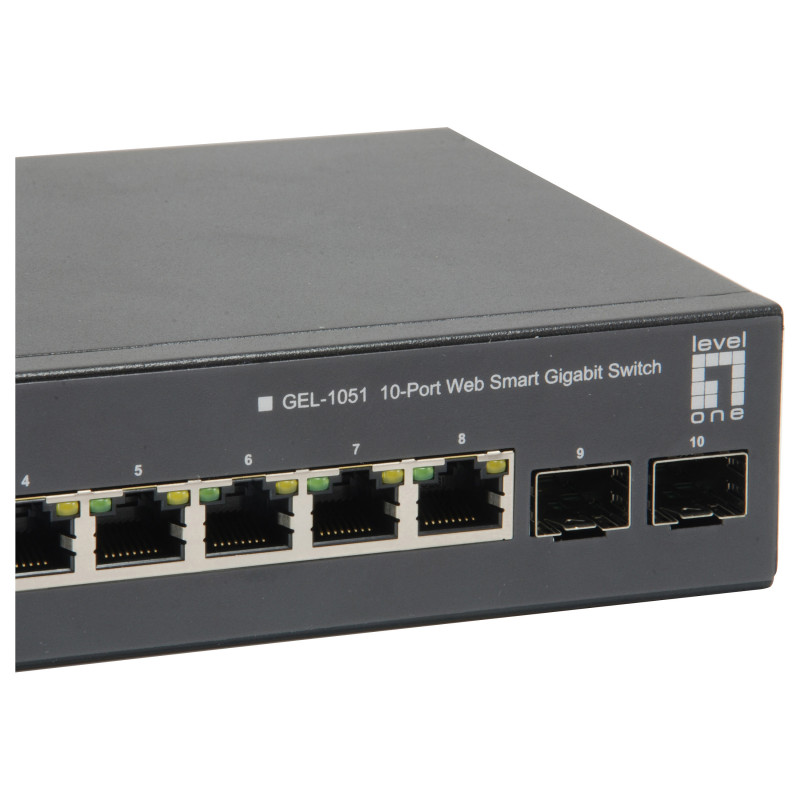

SFP module slots quantity: 2

Network

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Fast leave
Feature: VLAN support
Virtual LAN features: Tagged VLAN, Port-based VLAN

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.9 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client
Feature: Access Control List (ACL)
Access Control List (ACL) ingress: 256
Feature: IGMP snooping
Security algorithms: SSH, SSH-2, SSL/TLS
Feature: MAC address filtering
Feature: Static port security
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: Root protection
Feature: Password protection
Feature: DoS attack prevention
Authentication type: HWTACACS+, RADIUS
Feature: CPU defense
Queue scheduling algorithms: Weighted Round Robin (WRR)
Feature: Neighbor discovery snooping

Multicast features

Multicast Listener Discovery (MLD) snooping: Y

Protocols

Management protocols: SNMP v1/v2c/v3, Telnet
IPv4 & IPv6 features: IPv6 ping, IPv6 tracert, IPv6 Telnet, Dual stack IPv4/IPv6

Design

Feature: Rack mounting
Product colour: Black
Feature: Reset button

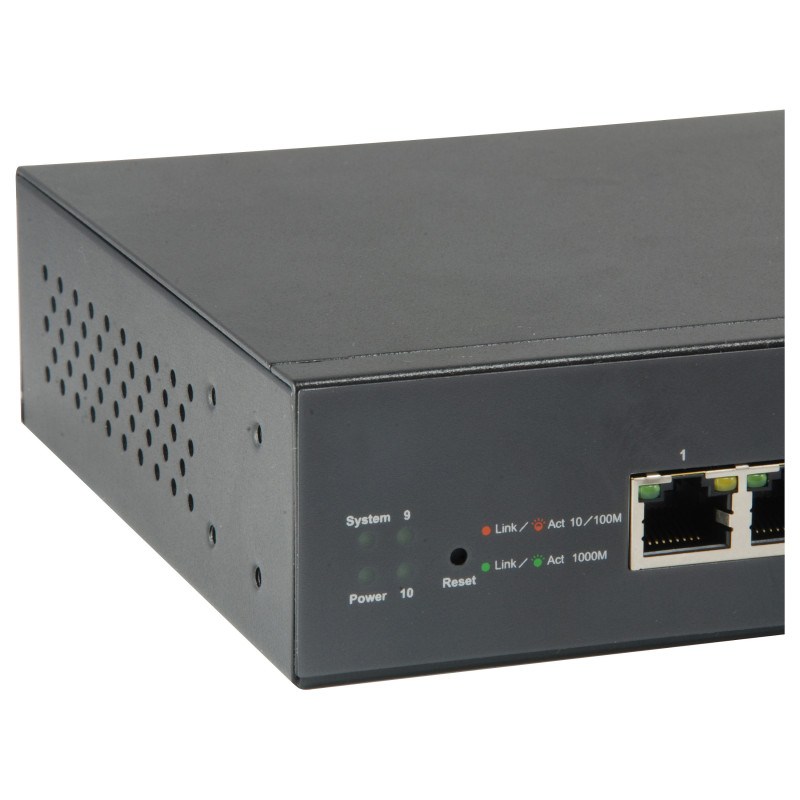

LED indicators: Activity, Link, Power, System
Safety: UL

Performance

Internal memory: 16 MB
Noise level: 0 dB
Feature: Firmware upgradeable
Feature: Plug and Play
Mean time between failures (MTBF): 118824 h

Power

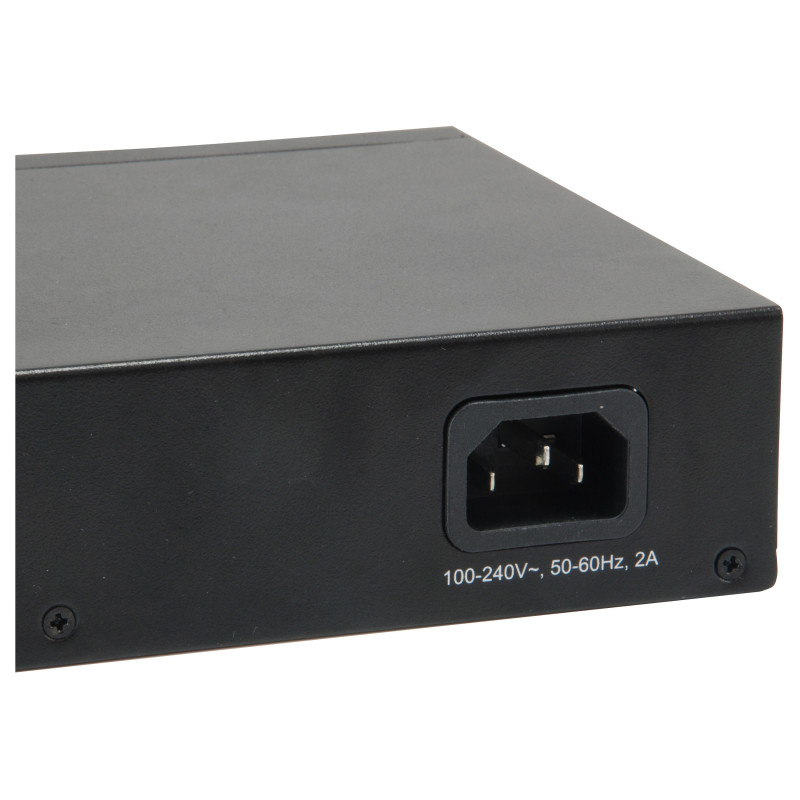

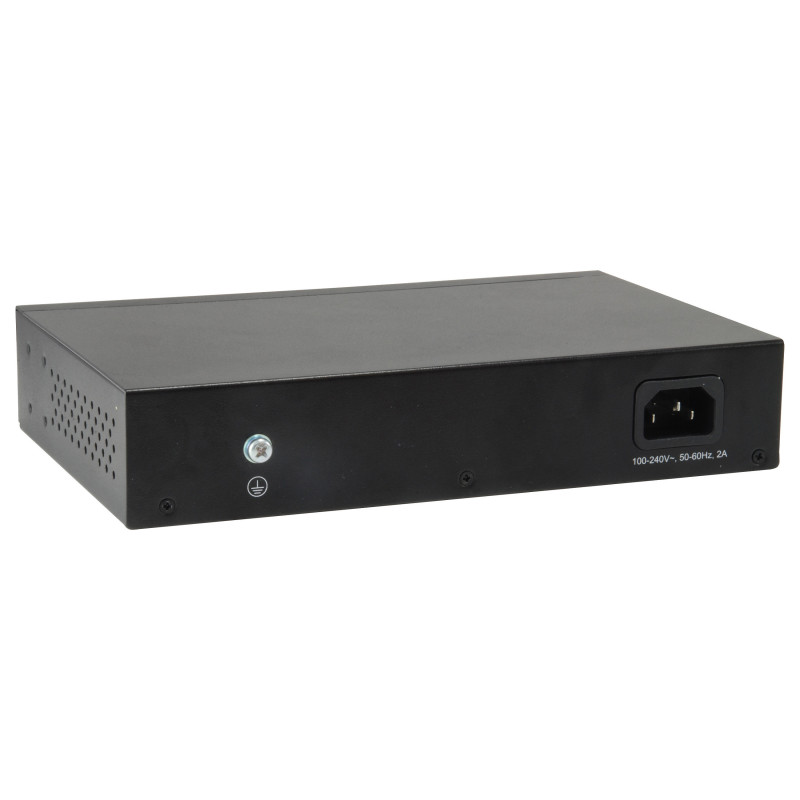

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 80 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 70 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 267.95 BTU/h

Weight & dimensions

Width: 294 mm
Depth: 180 mm
Height: 44 mm
Weight: 2 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Feature: Resource CD
Package width: 375 mm
Package depth: 270 mm
Package height: 85 mm
Package weight: 2.18 kg

Certificates

Certification: CE class A, FCC, VCCI, BSMI

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
