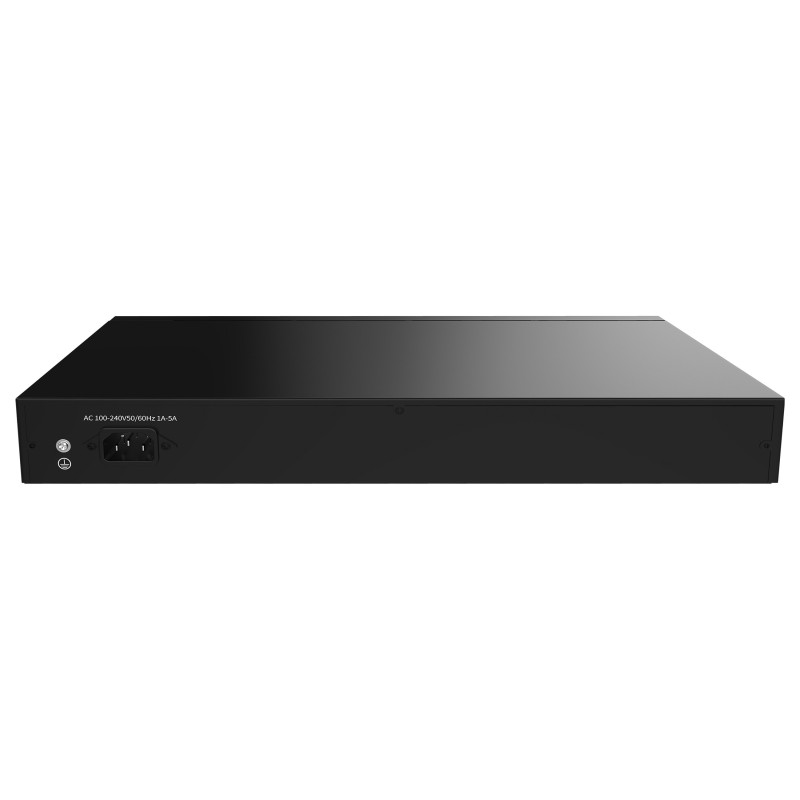

LevelOne GEL-5271 network switch

LevelOne GEL-5271. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

The LevelOne GEL-5271 is an intelligent 52-Port L2 plus managed gigabit switch with 48 RJ45 ports and 4 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.

The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-5271 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.

An ideal network solution for anyone looking for an affordable and efficient way to expand their network.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP module slots quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Broadcast storm control
Ethernet LAN data rates: 10,100,1000 Mbit/s

Optical fiber

Fiber ethernet cabling technology: 1000BASE-LHX, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX

Data transmission

MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000

Security

DHCP features: DHCP Option 82, DHCP client, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: Password protection

Multicast features

Feature: Multicast support

Protocols

Routing protocols: RIP

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Activity, Link, Power

Performance

Feature: Built-in processor
Internal memory: 256 MB
Flash memory: 512 MB
Noise level: 45 dB
Feature: Firmware upgradeable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 40 W

Operational conditions

Operating temperature (T-T): 10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 440 mm
Depth: 300 mm
Height: 44 mm
Weight: 3.5 kg

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package type: Box
Package width: 535 mm
Package depth: 340 mm
Package height: 80 mm
Package weight: 4.2 kg

Certificates

Certification: FCC Part 15 Subpart B, CE Mark, EN IEC 62368-1,EN 55032, EN 55035, EN 61000-3-2/3, RoHS

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
