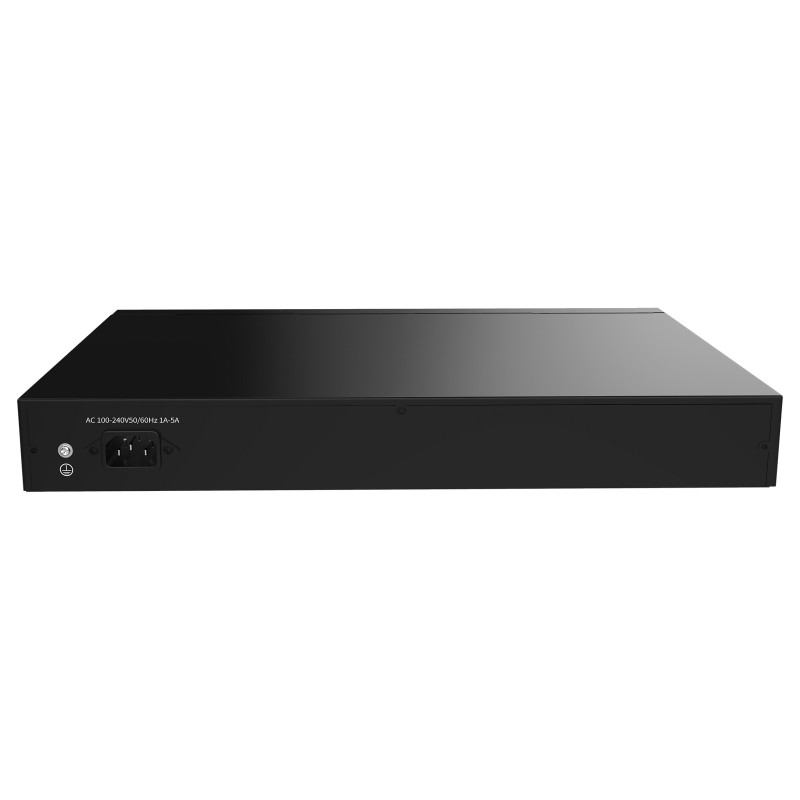

LevelOne GEL-2871 network switch

LevelOne GEL-2871. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching optical modules type: Gigabit Ethernet. MAC address table: 16000 entries, Switching capacity: 1000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

The LevelOne GEL-2871 is an intelligent 28-Port L2 plus managed gigabit switch with 24 RJ45 ports and 4 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.

The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-2871 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.

An ideal network solution for anyone looking for an affordable and efficient way to expand their network.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Policy-based routing
Feature: Spanning tree protocol
Ethernet LAN data rates: 1000 Mbit/s
QinQ implementation: Flexible QinQ, QinQ, Basic QinQ
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN

Optical fiber

Fiber ethernet cabling technology: 1000BASE-LHX, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX
Switching optical modules type: Gigabit Ethernet

Data transmission

Switching capacity: 1000 Gbit/s
MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP client, DHCP snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication, Port-based authentication
Authentication type: RADIUS

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Activity, Link, Power

Performance

Internal memory: 256 MB
Flash memory: 512 MB
Noise level: 45 dB
Feature: Firmware upgradeable
Feature: Telnet
Mean time between failures (MTBF): 534.057 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 136.48 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 245 mm
Height: 44 mm
Weight: 2.77 kg

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Feature: Rack rails
Package type: Box
Package width: 525 mm
Package depth: 390 mm
Package height: 95 mm
Package weight: 3.7 kg

Certificates

Certification: FCC Part 15 Subpart BCE MarkEN IEC 62368-1EN 55032EN 55035EN 61000-3-2/3RoHS

Logistics data

Country of origin: China
