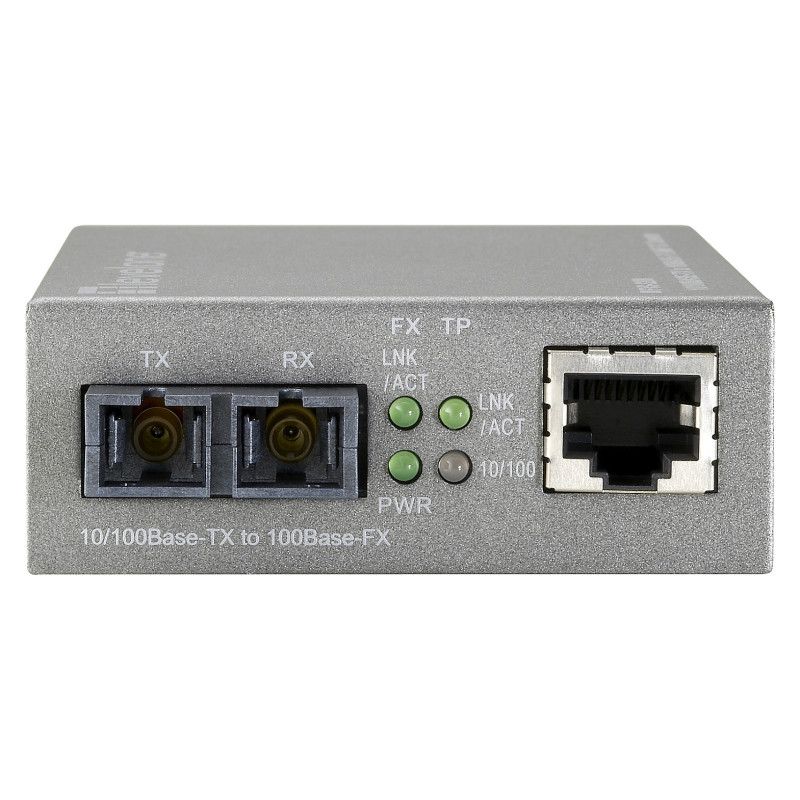

LevelOne FVS-3120 network media converter

LevelOne RJ45 to SC Managed Fast Ethernet Media Converter, Single-Mode Fiber, 20km. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-LX. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 3/125,8.7/125,9/125,10/125 µm. Product colour: Grey. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A, Power consumption (typical): 1.5 W

The LevelOne Web Smart Media Converter FVS-3120 is designed to make conversion between
10/100BASE-TX and 100BASE-LX SMF SC Ethernet.

With web-based management, the network administrator can logon to the converter remotely to monitor, configure and control the status of each unit. The overall network reliability is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.

- HTTP Management with remote firmware upgrade supported
- ICMP and ARP protocols supported
- DHCP Client for easy IP address setup
- LLR (Link Loss Return) supported
- IEEE 802.1Q VLAN and Double VLAN (Q-in-Q) supported
- Support 802.3x Flow Control to prevent lost data by controlling the device flow loading

Network

Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-LX
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Jumbo frames support
Feature: Flow control support

Performance

Maximum transfer distance: 20000 m
Fiber mode structure: Single-mode
Fiber cable diameters supported (core/cladding): 3/125,8.7/125,9/125,10/125 µm

Features

Product colour: Grey

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

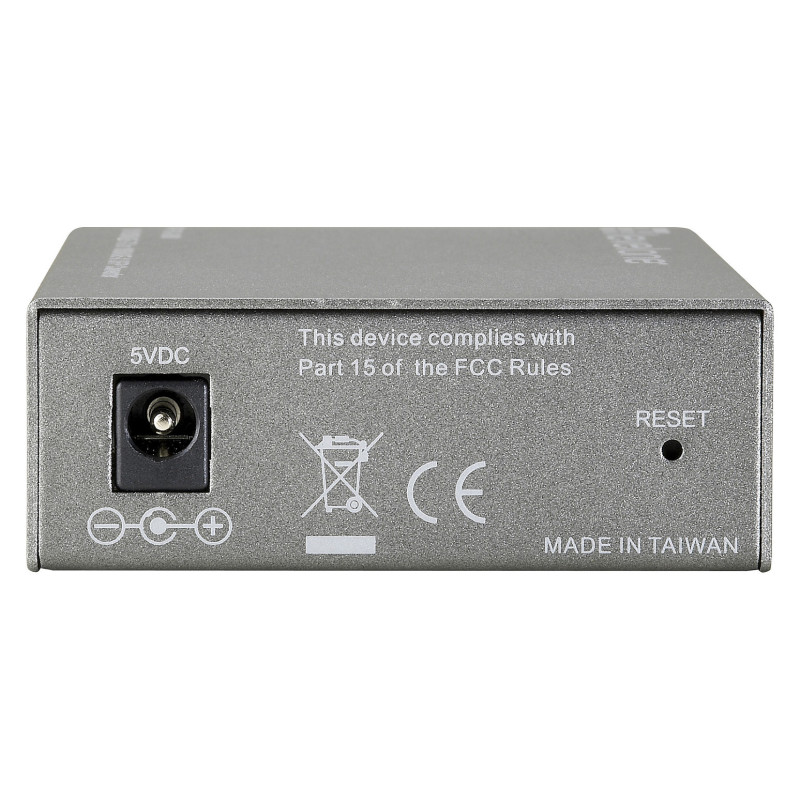

Feature: DC-in jack

Power

Input voltage: 5 V
Input current: 1 A
Power consumption (typical): 1.5 W
Feature: External power adapter

Weight & dimensions

Width: 70.3 mm
Depth: 94 mm
Height: 26.2 mm

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

Feature: Manual

Packaging data

Package width: 160 mm
Package depth: 220 mm
Package height: 60 mm
Package weight: 460 g

Certificates

Certification: FCC Part 15 Class A, CE

Logistics data

Country of origin: Taiwan
