LevelOne FSW-2450 network switch

LevelOne 24-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8192 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z. Power connector: DC-in jack. Rack mounting

Product Overview

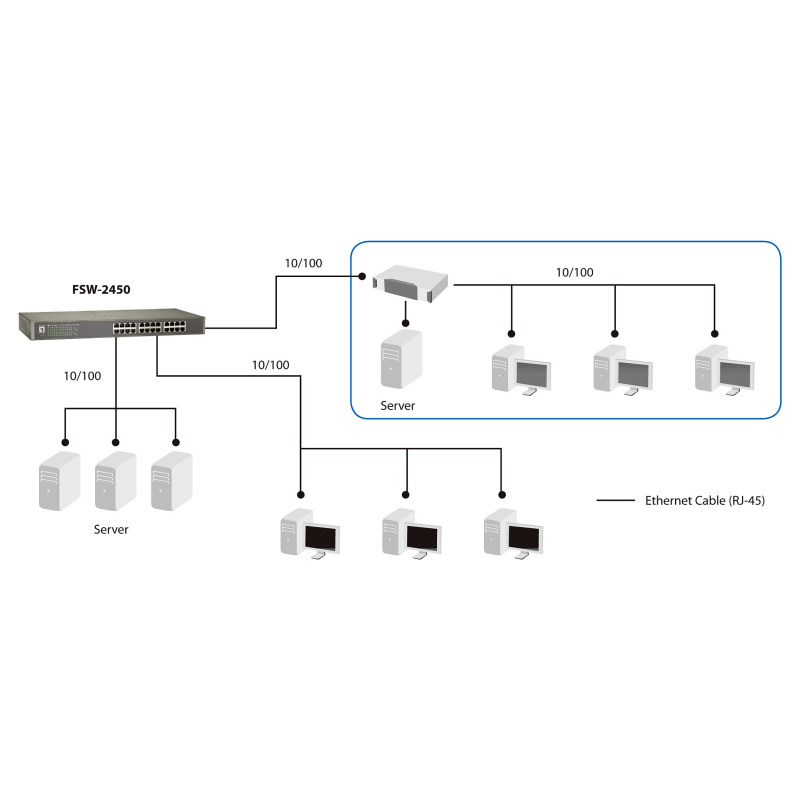

The FSW-2450 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.

Advanced Networking Features
The LevelOne FSW-2450 is a wire-speed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 4.8Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.

The 24-port Fast Ethernet Switch utilizes packet store-and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.

Compact Design
The FSW-2450 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.

Quick Configuration and Easy Maintenance
The LevelOne FSW-2450 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 24 port Fast Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat5
Feature: Full duplex
Feature: Flow control support
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported

Data transmission

Switching capacity: 4.8 Gbit/s
MAC address table: 8192 entries
Feature: Store-and-forward
Packet buffer memory: 0.16 MB

Protocols

Switching protocols: CSMA, CD

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Activity, Link, Power

Performance

Maximum cable length: 100 m

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 10 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 140 mm
Depth: 440 mm
Height: 44 mm
Weight: 1.45 kg

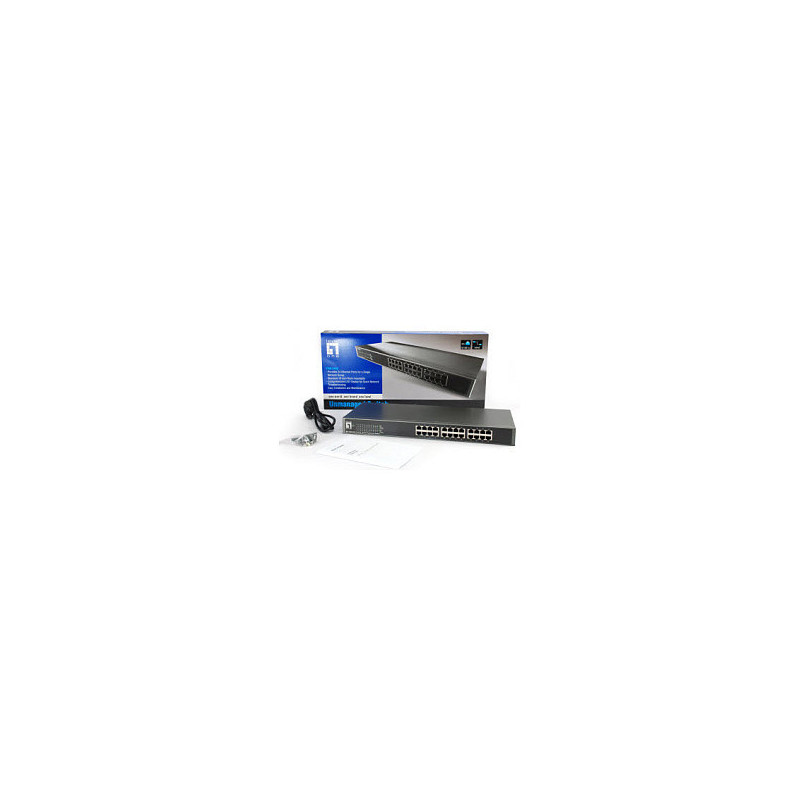

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Package width: 224 mm
Package depth: 486 mm
Package height: 77 mm
Package weight: 2.13 kg

Certificates

Certification: FCC Class A, CE, RoHS

Logistics data

Country of origin: China
Master (outer) case width: 405 mm
Master (outer) case length: 500 mm
Master (outer) case height: 240 mm
Harmonized System (HS) code: 85176990
Master (outer) case gross weight: 11.6 kg
