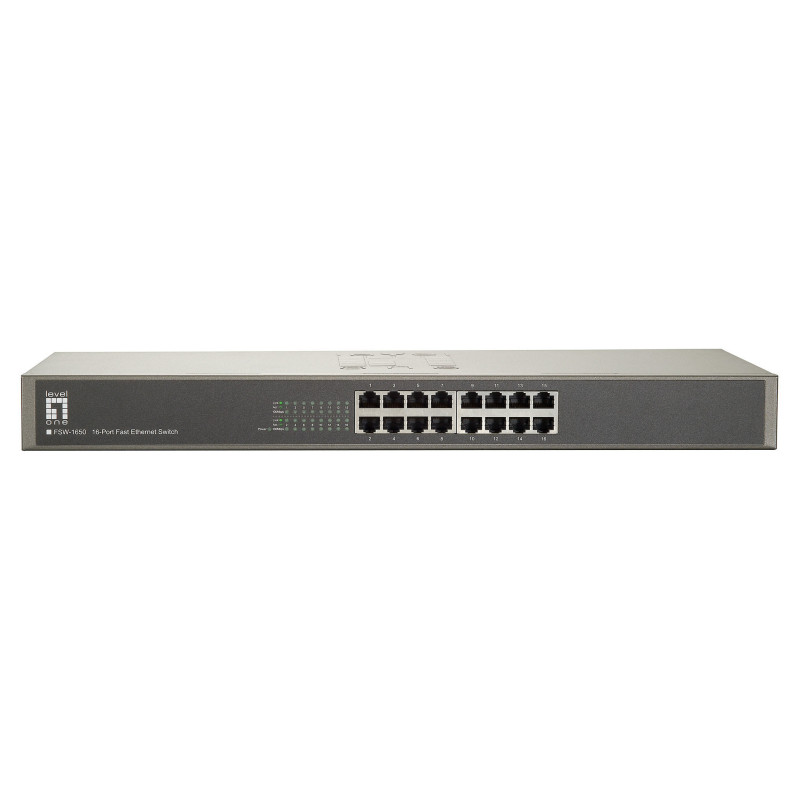

LevelOne FSW-1650 network switch

LevelOne 16-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Rack mounting

Product Overview

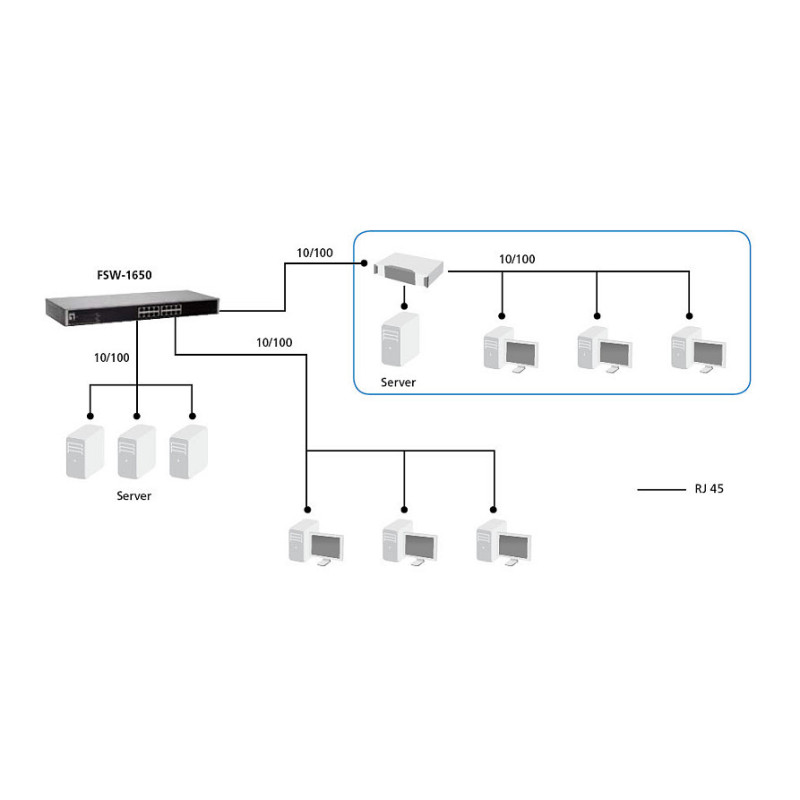

The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.

Advanced Networking Features
The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.

The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.

Compact Design
The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.

Quick Configuration and Easy Maintenance
The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network
troubleshooting.

- Provides flexibility of 16 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch metal housing
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat5
Feature: Full duplex

Data transmission

Switching capacity: 3.2 Gbit/s
MAC address table: 8192 entries
Feature: Store-and-forward

Protocols

Switching protocols: CSMA/CD

Design

Feature: Rack mounting
Product colour: Grey
LED indicators: Activity, LAN, Link, Power

Performance

Buffer size: 160 KB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 6.2 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 44 mm
Depth: 208 mm
Height: 440 mm
Weight: 2.6 kg

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Feature: Wall mounting kit
Package width: 308 mm
Package depth: 94 mm
Package height: 550 mm
Package weight: 2.7 kg

Certificates

Certification: CERoHS

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
