LevelOne FSW-0808TX network switch

LevelOne 8-Port Fast Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1024 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

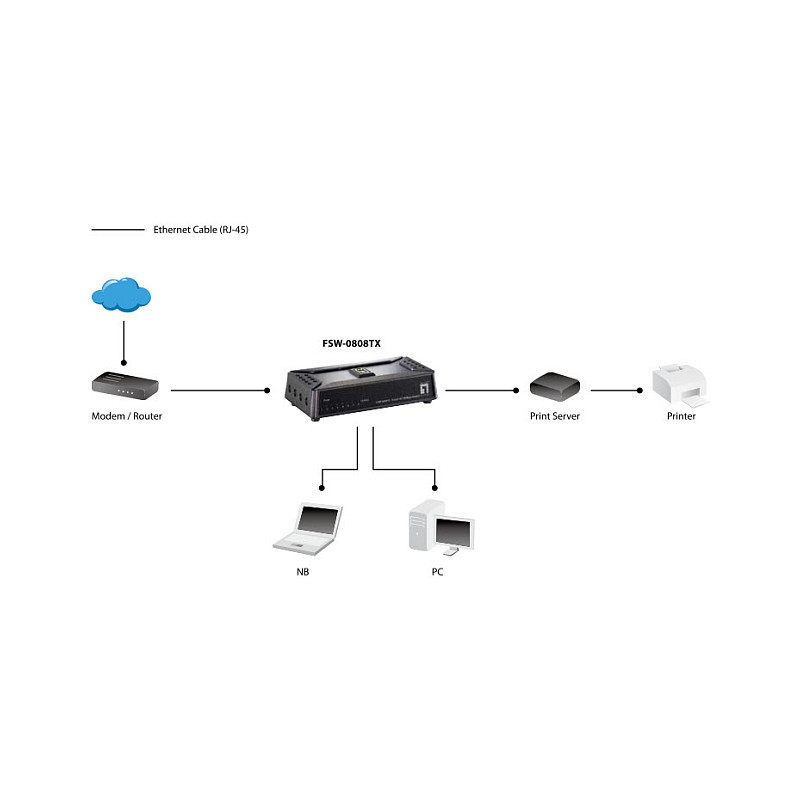

The LevelOne FSW-0808 is a wire-speed, non-blocking networking device that provides 8 ports 10/100Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.

Easy Configuration and Maintenance
The LevelOne FSW-0808TX does not require software configuration. Users can immediately use any features of this product simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.

Compact Size Design
This switch is compact specially designed to fit on the desktop or in other space-limited locations. The FSW-0808TX provides an ideal solution for businesses that crave a reliable network to exchange large data files and multimedia information with bandwidth-starving workgroup, departments, and offices.

- Provides flexibility of 8 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

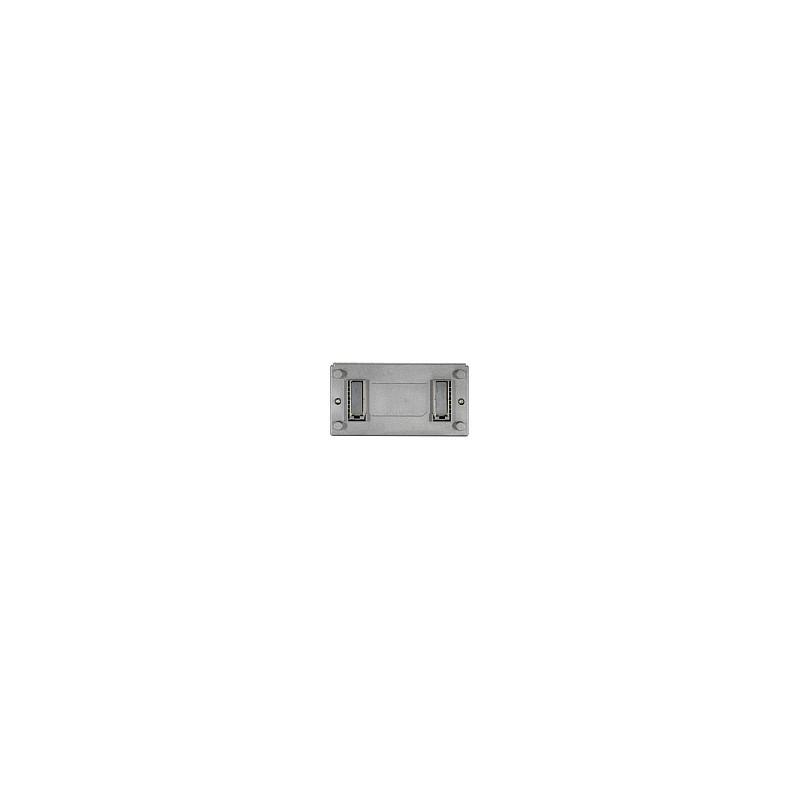

- Magnetic base for easy placement
- Quick and easy installation

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 1.6 Gbit/s
MAC address table: 1024 entries
Feature: Store-and-forward
Packet forwarding rate (100 Mbps): 148000 pps
Packet forwarding rate (10 Mbps): 14880 pps

Design

Product colour: Grey
LED indicators: Activity, Link, Power

Performance

Buffer size: 96 KB

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 5 V
Output current: 1 A
Power consumption (typical): 2.8 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 125 mm
Depth: 69 mm
Height: 30 mm

Packaging content

Feature: Quick start guide

Packaging data

Feature: AC adapter included
Package width: 75 mm
Package depth: 130 mm
Package height: 90 mm
Package weight: 300 g

Certificates

Certification: FCC, CE, RoHS

Logistics data

Country of origin: China
Harmonized System (HS) code: 85176990
